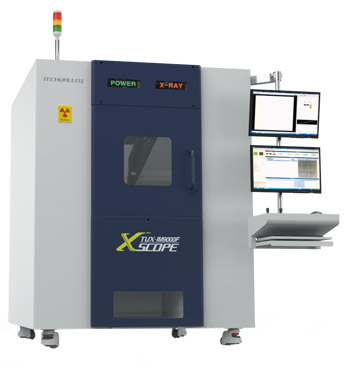

TVX-IM9000F (IM1300F)
PRODUCT DESCRIPTION
Most cost-effective automated offline
inspection equipment optimized for 2D single sided inspection
features
- 2D & 2.5D Manual Equipment for various defect inspection
- Analyze with minimal magnification damage with the 50° Detector Tilt function
- Equipped with Fine pitch X-ray Detector to realization High magnification compared to third-party equivalent equipment
- Self-manufactured inspection algorithm enables user-desired automatic inspection
- Manual Mode, Macro Mode, Auto-Inspection Mode of support
specifications
X-ray Source
IM9000F : 110kV / 25W / 5㎛ Focal Spot Size
IM1300F : 130kV / 40W / 5㎛ Focal Spot Size
Image Detection System
6.9M Pixels / 49㎛ Pixel size
Utility
Power : 220VAC
Dimension & Weight
(W)1,775㎜ X (D)1,830㎜ X (H)1,820㎜ / 1,600kg
Promotion Movie
