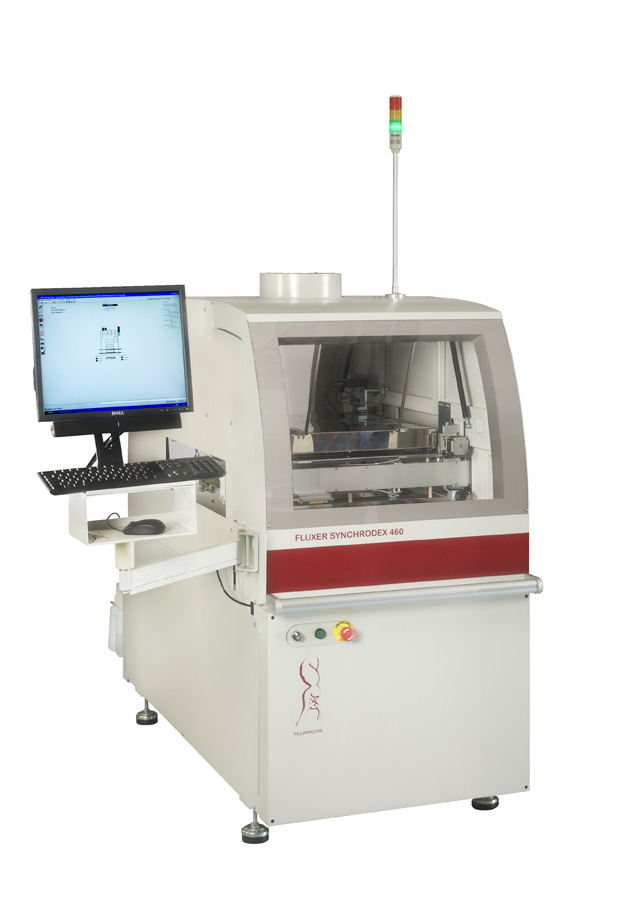

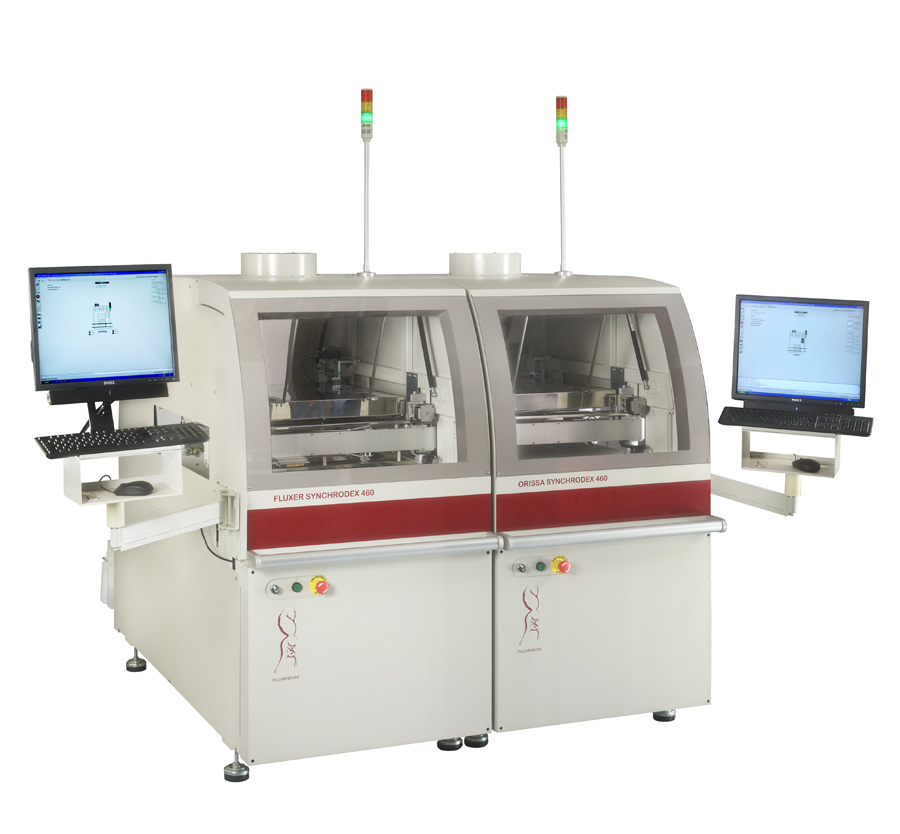

ORISSA SYNCHRODEX COMBO

PRODUCT DESCRIPTION

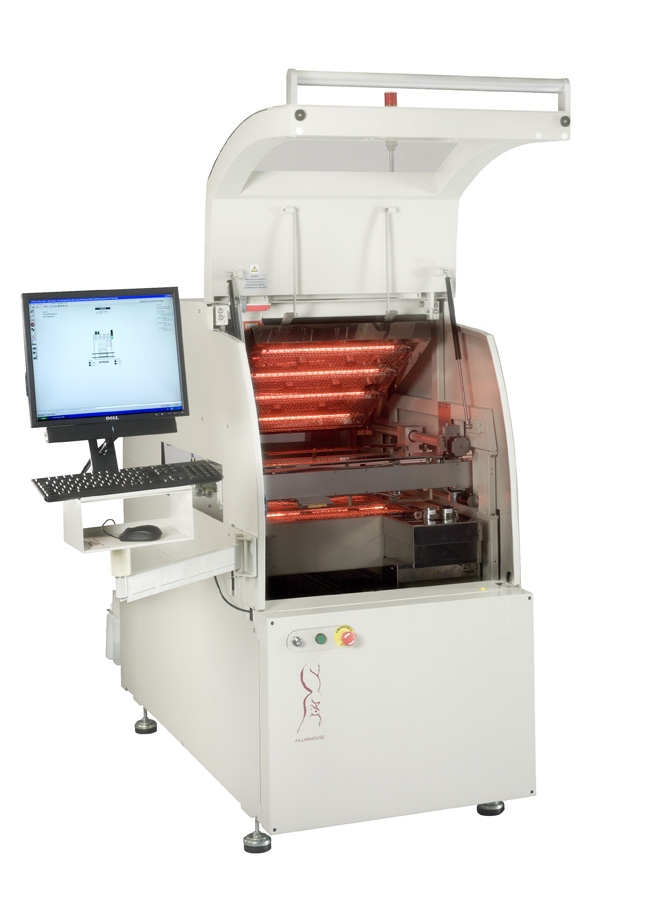

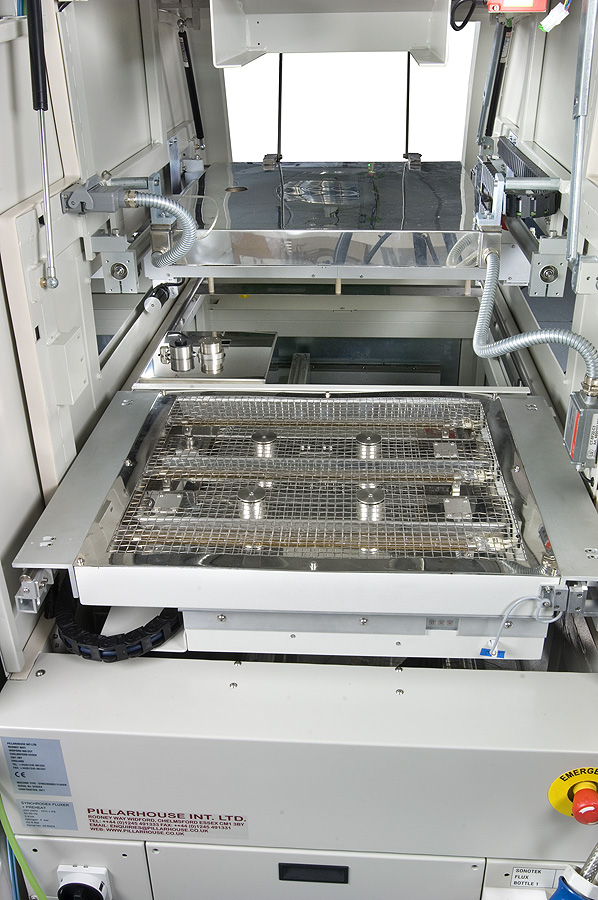

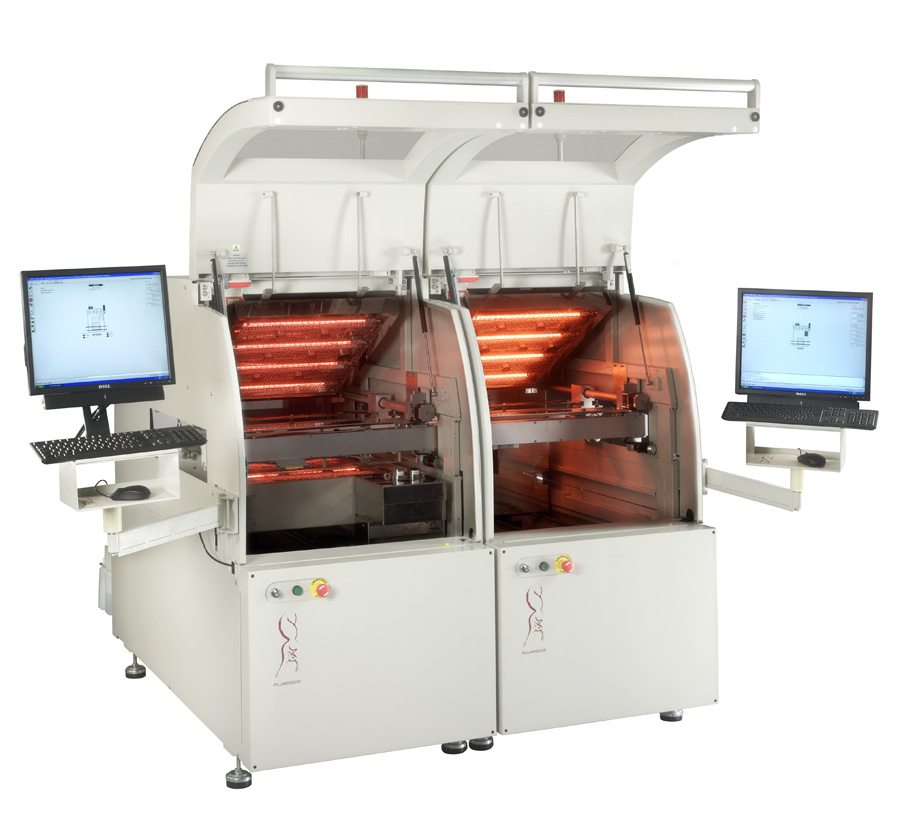

The fluxer/preheat combo operates in tandem with the selective soldering unit and can be configured with either Drop-Jet or ultrasonic flux heads and both top and bottom side IR preheat functions. Twin pitch fluxheads are available for further cycle time reductions.

The machine utilizes an XY positioning system to position the flux head as required. A Drop-Jet flux head is supplied as standard with an ultrasonic head being ordered as an alternative or in addition to the standard head. Both systems provide precise control of the flux being deposited on the board.

Programming and control of the machine is via a PC using the Windows^® based PillarCOMM software. Programs and machine configuration are protected by a customer selectable, multilevel password security system.

The machine is freely programmable to cater to different board layouts. Each flux joint is separately programmable to its own set of required parameters. The programming system employs a component data library enabling quantities of similar joints to use the same fluxing data outline. Visually assisted self-teach alignment allows for fast and accurate board programming.

Send Enquiry

features

In-line motor driven auto width adjust – through feed synchronous movement conveyor
Conveyor side clamping
Integral PC and machine mounted TFT monitor

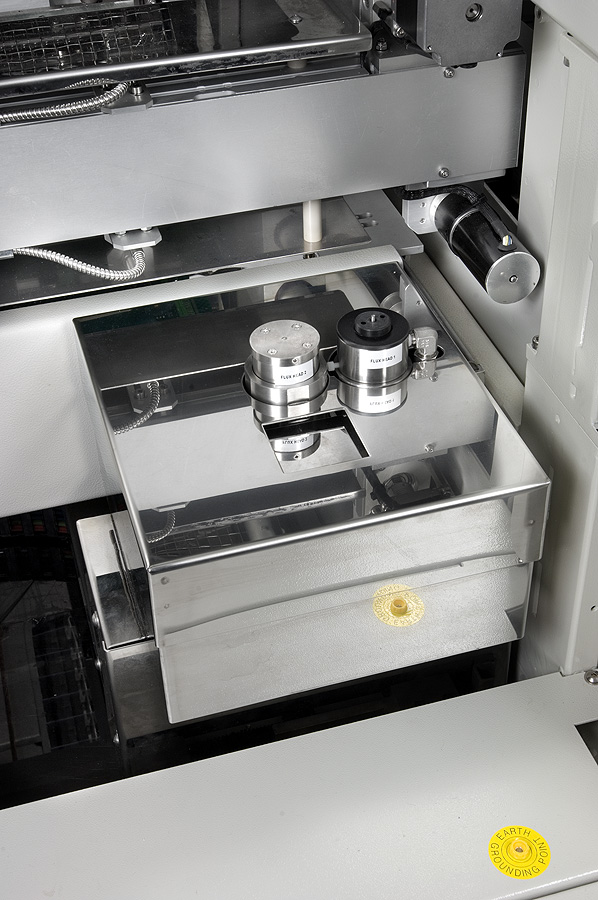

Titanium Drop-jet fluxer
Internal fume extraction
Colour programming camera
PillarCOMM Windows® based ‘Point & Click’ interface
Light stack
Flux level sensor
Multiple level password protection
SMEMA compatible
Multiple level password protection
Day-to-day service kit

specifications

Height

1615mm / 63” – excluding light stack

Width

813mm / 32“

Depth

2024mm / 80”

Board size

Max. – 457mm x 610mm / 18”x 24” Min. – 102mm x 102mm / 4”x 4”

Edge clearance

Above/below 3mm

Height clearance

Below 40mm – above 45mm 100mm – upon request

Extraction

Fan: 276mm dia.

Rating

1000m3/hr / 589 CFM

Flux

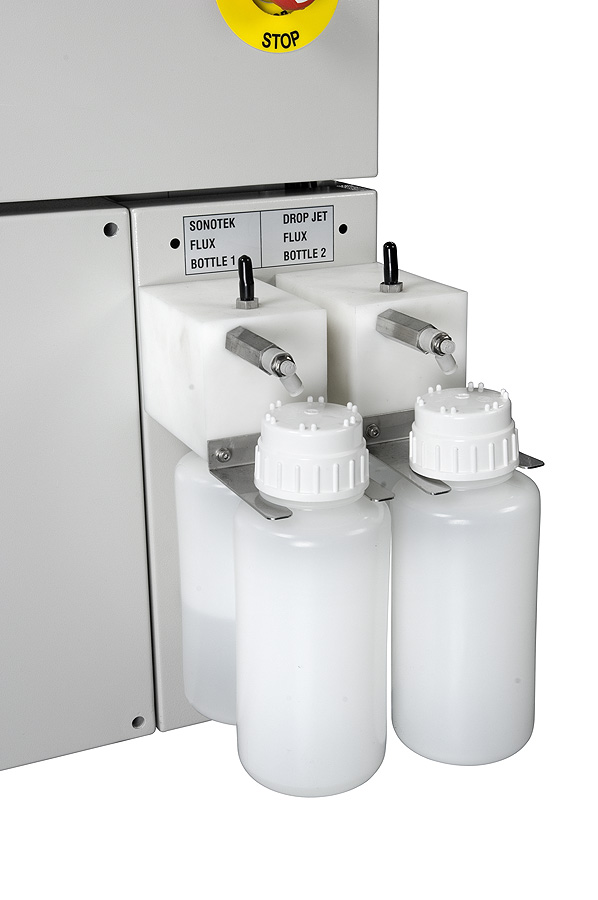

Low maintenance Drop-Jet system. Low solids, no clean flux, pressurised and inerted system, optional water soluble system available.

Flux tank capacity

1 litre

Fluxer speed

50 dots/second

Deposition size

4.0-6.0mm / 0.16-0.24”

X, Y & Z axis resolution

0.15mm

Repeatability

+/- 0.05mm.

Nitrogen supply pressure

5 bar / 72 psi

Nitrogen usage

10-30 litres/min.

Air Supply Pressure

5 bar / 72 psi

Air Usage

10 litres/min. / 0.35CFM

Power Supplies

1 phase + PE.

Voltage

230V

Frequency

50/60 Hz.

Power

13kVA max. – machine configuration dependent

Transport

Conveyor

Programming

PillarCOMM Windows® based ‘Point & Click’ interface
