F500DC-RTR
PRODUCT DESCRIPTION

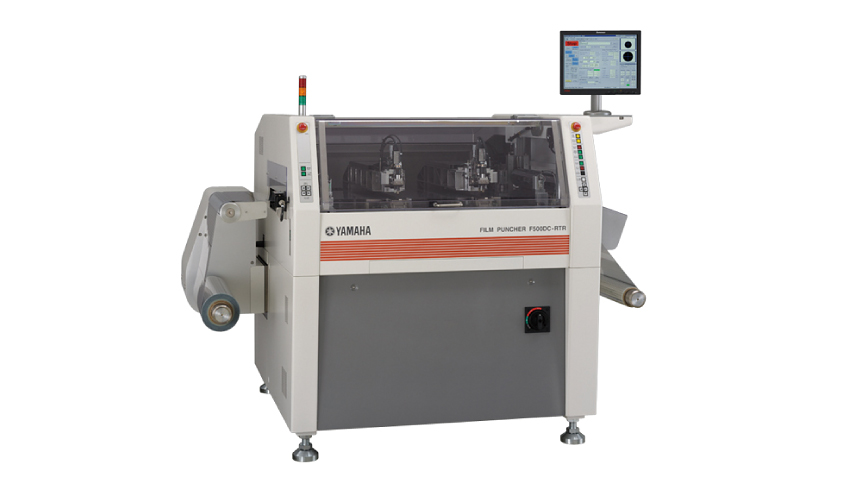

A 500 mm wide roll transfer type machine. With a double-arm electric punching head, high-speed (0.11 seconds/hole) and high-accuracy (±20 μm) punching is possible.
features
- Roll to Roll supported model: Roll witdh : Max. 500mm
- Processing speed:0.11 s/hole

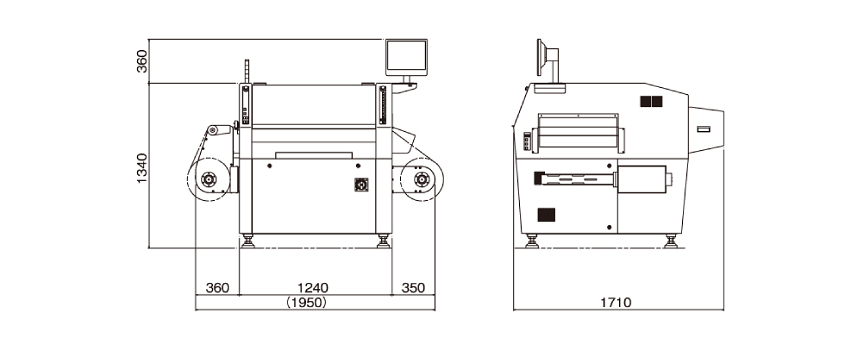

specifications
Model
F500DC-RTR
Type
F500DC-RTR-3N
Application examples
Flex PCB, Various film materials
Processing capability-Work sheet size
Roll witdh : 250~500mm
Processing capability-Range
X610mm x Y500mm
Processing capability-Speed*1 0.11 s/hole
0.11 s/hole
Processing capability-Accuracy*1
±20μm
Punching head-Punching type
Electric punching head
Punching head-No. of heads
4
Work sheet transfer-Loading / Unloading
Roll to Roll
Image processing -Camera view
X4.8 x Y3.6mm (standard)
Image processing-Pattern detection
Pattern recognition via grayscale
Image processing-Illumination type
Transmission light, reflection light
Hardware-Interface
LAN,USB
Hardware-Display
17 inch LCD with touch panel
Software-OS
Windows7
Software-Production support function
Automatic creation of optimal punching path, automatic punching offset, punching deviation accuracy measurement, measurement result output
Usage environment-Weight
Approx. 1,670kg
Usage environment-Power supply
3-phase, 200 to 240V AC, 50/60Hz, 6kVA
Usage environment-Dry air
0.5MPa
