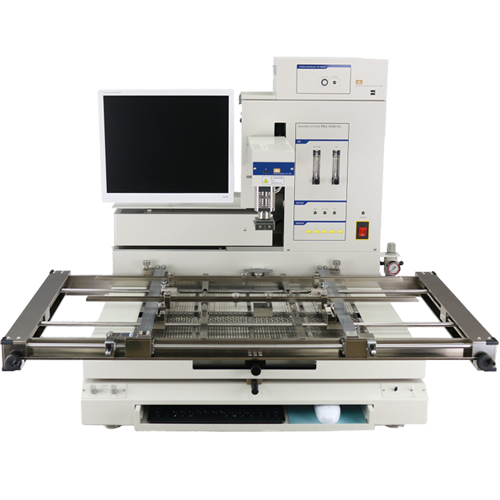

RD-500VL (XL Size)

PRODUCT DESCRIPTION

All-IN-ONE Advanced Technology SMT Rework Station
Compatible for all kind of rework for different type of SMT components

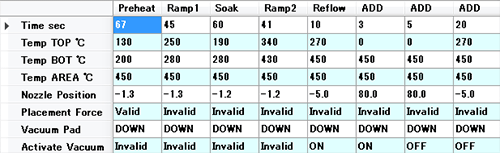

Multi-functional profiles can be handled at will
Wide support to industrial large-scale and small-scale circuit boards, including 01005 components
Contact-less cleaning
Control of the Z-axis
1,199W × 947.5D × 883H

Download Brochure

Send Enquiry

features

Multi-functional profiles can be handled at will. Wide support to industrial large-scale and small-scale circuit boards, including 01005 components.
Wide support to industrial large-scale and small-scale circuit boards, including 01005 components
Safety Features: RD-500VL has a unique safety feature, it will run safely and simple.

specifications

Maximum board size

680mm x 800mm (27" x 32")

Device size range

01005(0402mm) or more *Custom nozzles are available

Placement Accuracy

±0.015mm

Electrical Requirement

AC200-240V 5.6kW

Top Hot Air Heater

1000W

Bottom Hot Air Heater

1000W

Area Heater

600W x 8 IR 4800W

Temp setting range

0 to 650˚C

Operating System

Dedicated Controller (PC-500Vα)

Monitor

19 inches LCD

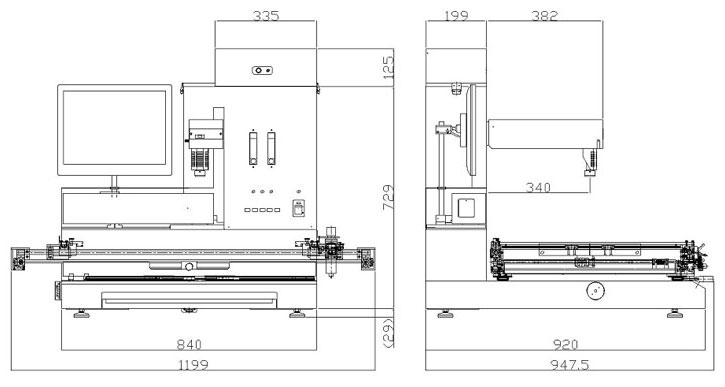

External dimensions

1199W × 947.5D × 883H

Overall Weight

Approx. 109kg (240.30LBs)

Air Requirements

0.6MPa 110L/min (90 PSIG)
