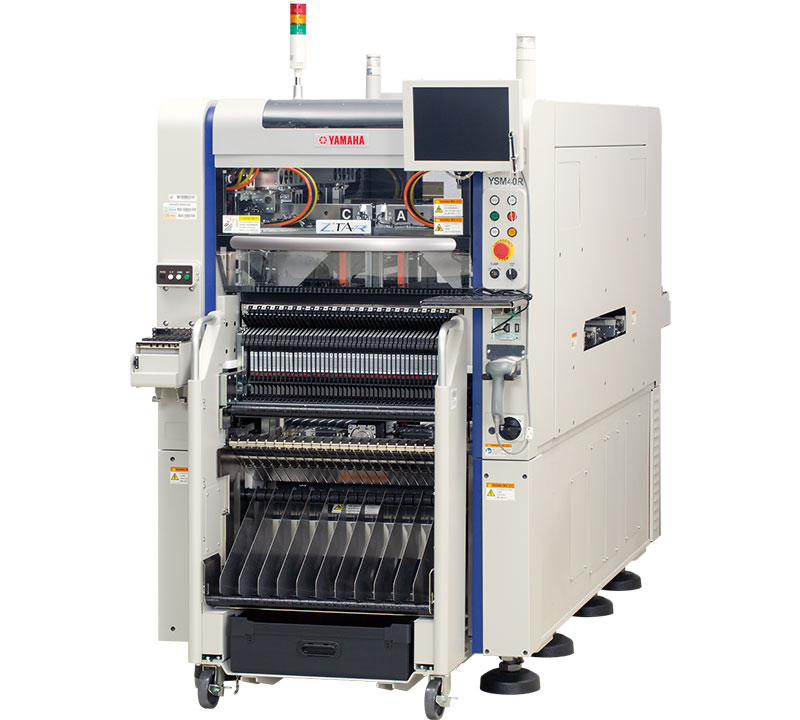

YSM40R
PRODUCT DESCRIPTION
- Highest productivity in the world!
- Flexible response for different production configurations!
- High tech to support high mounting quality & a high machine operating rate
features
- World’s fastest! 200,000 CPH
- Compact. Machine width of 1m
- Handles large-size PCBs
- Flexible response for different production configurations!
specifications
Applicable PCB
L700×W460mm to L50×W50mm
Mounting capability (under optimum conditions as defined by Yamaha Motor)
200,000CPH (When using RS head)
Applicable components-Ultra-High-Speed (RS) Head
0201mm* to □6.5mm (Height 2.0mm or less) *option
Applicable components-Multi (MU) Head
03015mm to 45×60mm (Height 15mm or less)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
+/-35μm (25μm)
Cpk ≧1.0 (3σ)
Number of component types * 8mm width tape conversion
Max. 80 feeders with RS heads /
Max. 88 feeders with MU heads /
Max. 84 feeders with RS x 2 + MU x 2 heads
Power supply
3-Phase AC 200/208/220/240/380/400/416V +/-10%
Air supply source
0.45MPa or more, in clean, dry state
External dimension
L1,000×W2,100×H1,550mm (excluding projections)
Weight
Approx. 2,100 kg
