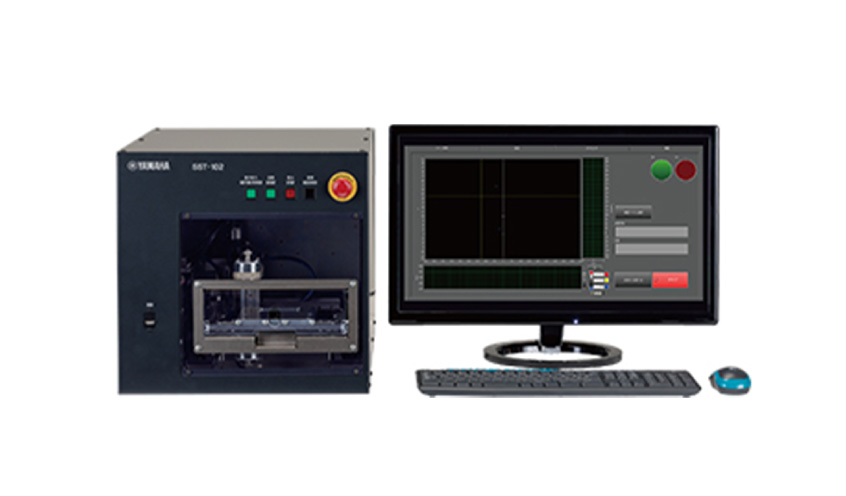

SST-102
PRODUCT DESCRIPTION
- 500 mm/s high-speed mechanical scan
- Measured data converted into numerical values to judge the conformity

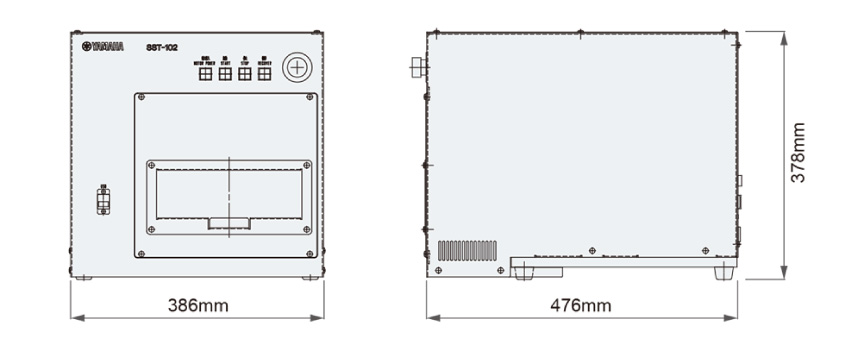

- Compact design adopted to allow the tester to be put on a desk
Internal defects visualized by airborne ultrasonic
This equipment evaluates the performance of the lithium-ion battery tab welding and inspects the workpiece for internal defects, such as crimping failures of connectors. Measured data is visualized by using dedicated image processing software. Its compact design allows the tester to be put on a desk.
features
- Scanning range : W100mm x D10mm
- Resolution : 1mm
- Scanning speed : 500mm/sec
specifications
Product composition
Ultrasonic scanning unit 1 set
Ultrasonic sensor head unit : Probe holder / Probe (transmitted & received)
Ultrasonic Pulsar Receiver
Control PC
Peripheral devices 1set : display, keyboard, mouse
Resolution
1mm
Scanning speed
Max. 500mm/sec
Scanning range
W100mm x D10mm
Control PC
PC : Built-in product /
OS : Windows 10 /
Input : Keyboard / mouse /
Display : LCD panel display (HDMI)
Data
SSD
Language
English
Power voltage, power supply
AC100~220V, 50/60Hz, 0.5kVA
Weight
Approx. 30kg
Usage environment
5~40℃, no condensation
