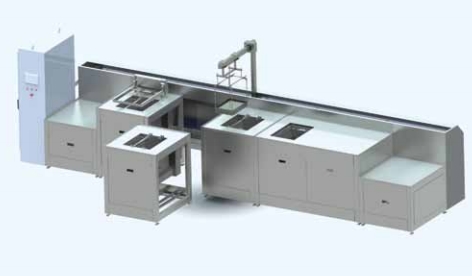

Modular AQ
PRODUCT DESCRIPTION
Download Brochure
Send Enquiry
features
  • Modular, Plug & Play Design
  • Automated hoist transfer system
  • 3 Frequencies standard in each tank
  • Expandable in the Field (wash, rinse, or dry)
  • Easy troubleshooting & maintenance
  • Siemens Controls Global Compatibility Data Logging / Part Tracking
  • Competitive Pricing
  • OPTIONAL HEPA FILTRATION IN DRYER
  • OPTIONAL AUTOMATION, FULLY UPGRADABLE AT LATER DATE
  • ABILITY TO ADD MODULES, OR STATIONS, AS REQUIREMENTS CHANGE
  • ABILITY TO DROP IN MODULE TO MINIMIZE DOWN TIME AND MAINTENANCE
specifications
MAQ-4-1622:NUMBER OF STAGES
4
MAQ-4-1622:WORKING ENVELOPE (L X W H)
455mm x 660mm x 457mm
MAQ-4-1622:WORKING ENVELOPE (L X W H)
16" X 22" X 20"
MAQ-4-1622:MAX PAYLOAD CAPACITY
45 KG / 100 LBS
MAQ-4-1622:ULTRASONIC POWER
960 Watts
MAQ-4-1622:HEAT (WET TANKS)
6kW
MAQ-4-1622:DRYER UNIT
12kW
MAQ-4-1622:TANK CAPACITY
114 liters / 30 Gallons
MAQ-4-1622:FREQUENCIES (IN WET SECTIONS)
40kHz, 72kHz, 104kHz
MAQ-N*-1622:NUMBER OF STAGES
*N = Number of stages
MAQ-N*-1622:WORKING ENVELOPE (L X W H)
455mm x 660mm x 457mm
MAQ-N*-1622:WORKING ENVELOPE (L X W H)
16" X 22" X 20"
MAQ-N*-1622:MAX PAYLOAD CAPACITY
45 KG / 100 LBS
MAQ-N*-1622:ULTRASONIC POWER
960 Watts
MAQ-N*-1622:HEAT (WET TANKS)
6kW
MAQ-N*-1622:DRYER UNIT
12kW
MAQ-N*-1622:TANK CAPACITY
114 liters / 30 Gallons
MAQ-N*-1622:FREQUENCIES (IN WET SECTIONS)
40kHz, 72kHz, 104kHz
