SC-AH100E-LV
PRODUCT DESCRIPTION

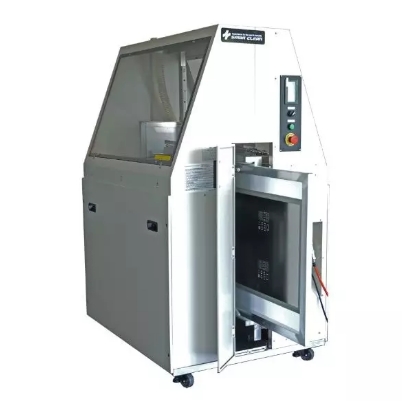

High capacity stencil cleaning machine
features
- Stencils for 0402 chips can also be cleaned
- VOC emissions can be reduced by 70%
- Our cleaning principe is made to reduce damages on the stencils
specifications
Product No.
SC-AH100E-LV
Outside dimention and Weight
W: 877 x D: 1,140 x H: 1,666 mm
約 230kg
Power
AC 110, 120, 220, 240 V 50/60 Hz
500 VA
Ultrasonic
40 kHz, 300 W
Applicable stencil size
L: 550 x W: 600 mm *1
L: 550 x W: 650 mm *1
L: 736 x W: 736 mm
Air
0.4 MPa, 650 NL/min
Exhaust dust
Wid speed 5.5m/sec、Diameter φ98
Cleaning agent
HA-2789 （Kaken Tech）
Performance
Clean + Dry Approx. 5 min *2
Promotion Movie
