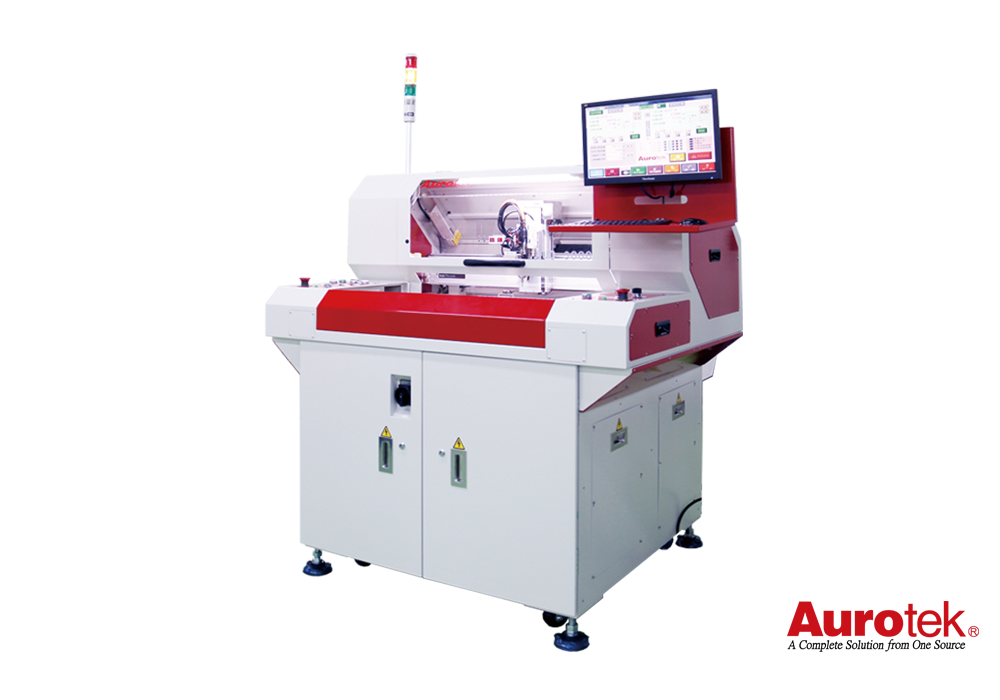

Semi-Automatic PCB Separator AUO 3000/3000C
PRODUCT DESCRIPTION

    The semi-automatic (offline) PCB Separator is the best solutions to fit the mass production in SMT line.
    Dual working table enhances the production efficiency. Standard 2 machine models are applicable for different PCB sizes (330*350mm, 450*520mm).
    At same time Aurotek provides customize options to meet the specific demand of PCB production.
    Friendly interface, accurate PCB depaneling along with dual working table brings you more productive production experience.

Download Brochure
features
  • High horsepowe indusrial dust-collectors
  • Small dust-collecting duct designed for upward or downward dust extraction systems
  • Duct is close to the milling area, removing dust at once while depaneling
  • KURODA high precision ball screw
  • Panasonic servo motor
  • Sycotec spindle
  • Advantech industrial computer
  • Aurotek motion control card
  • Aurotek Vision System
  • High-speed axis modules reaches up to (max.) 1200 mm/s
  • Maximum cutting speed 100mm/s
  • 2 parellel processing tables. Maximize production throughput while minimizes idle time
  • Customized fixture and tools. Production changeover can be done in just a few seconds
specifications
WORKING AREA
X: 330 mm, Y: 350 mm
Working Table
2
PCB Thickness
0.8 ~ 3.0 mm
PCB Component Height (Max.)
Upward: 15 mm, Downward: 45 mm
Motion Control
4 Axes with Panasonic AC Servo Motors
Moving Speed
Standard: X, Y: 1,000 mm/sec, Z: 750 mm/sec Maximum: X, Y: 1, 200 mm/sec, Z: 750 mm/sec
Cutting Speed
0 ~ 100 mm/sec
Cutting Accuracy
±80 μm
Positioning Repeatability
±10 μm
Cutting Modes
Linear, Circular, U-Curve, Arc, L-Curve
Standard Bits
Ø 1.0 mm, Ø 1.2 mm, Ø 1.6 mm, Ø 2.0 mm
Operating System
Windows 10
Pneumatic Pressure
0.5 / 0.6 Mpa ( 5 / 6 Bar )
Working Height
890 ~ 940 mm
Dimensions (W x D x H)
1565 x 1110 x 1462 mm *Signal Light - 561 mm
Net Weight (Approx.)
460 KGS
Vacuum Cleaner
3 HP or 5 HP
Standard Spindle
Standard: 4026, 265 W, (Max.) 58,000 rpm, Torque: 4.5 Ncm Option 1: 4025 DC-T, 470 W, (Max.) 30,000 rpm, Torque: 15 Ncm Option 2: AP 008-ESD, 500 W, (Max.) 80,000 rpm, Torque: 8.4 Ncm
Standard Monitor
19" LCD Monitor
Power Supply
3 Phase AC 220 V±5% 50 Hz/60 Hz, 4.0 kw
