F250DD-RTR / GFR
PRODUCT DESCRIPTION

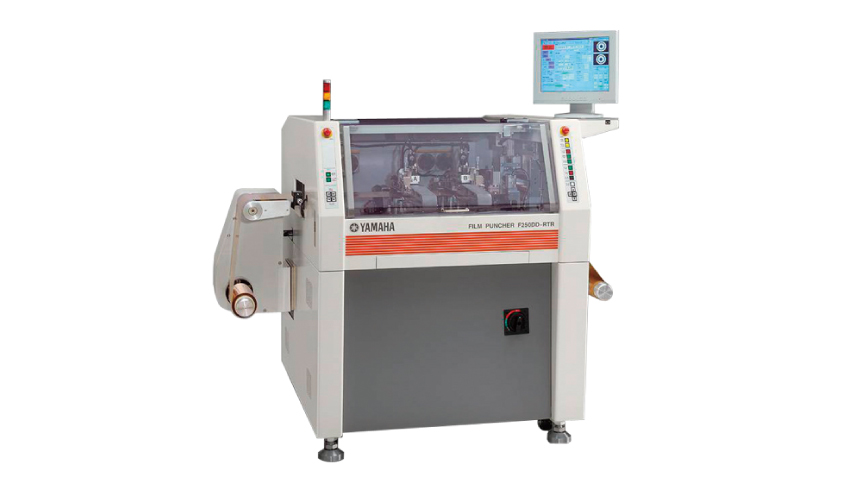

A 250 mm wide roll transfer type machine. With a double-arm electric punching head, high-speed (0.08 seconds/hole) and high-accuracy (±25 μm) punching is possible. A choice can be made between two work sheet transfer systems.
features
- Roll to Roll support:Roll witdh : Max. 250mm
- Processing speed:0.08 s/hole
specifications
Model
F250DD-RTR /F250DD-GFR
Type
F250DD-RTR-3N/F250DD-GFR-3N
Application examples
Flex PCB, Various film materials
Processing capability Work sheet size
Roll witdh : 150~250mm
Processing capability-Range
X580mm x Y250mm
Processing capability-Speed*1
0.08 s/hole/0.085 s/hole
Processing capability-Accuracy*1
±20μm
Punching head-Punching type Electric punching head
Electric punching head
Punching head-No. of heads
4
Work sheet transfer-Loading / Unloading
Roll to Roll
Image processing-Camera view
X4.8 x Y3.6mm (standard)
Image processing-Pattern detection
Pattern recognition via grayscale
Image processing-Illumination type
Transmission light, reflection light
Hardware-Interface
LAN,USB
Hardware-Display
Display 17 inch LCD with touch panel
Software-OS
Windows7
Software-Production support function
Automatic creation of optimal punching path, automatic punching offset, punching deviation accuracy measurement, measurement result output
Usage environment-Weight
Approx. 1,300kg/Approx. 1,310kg
Usage environment-Power supply
1-phase, 200 to 240V AC, 50/60Hz, 5kVA
Usage environmentDry air
0.5MPa/0.4MPa
