MR262-GFR
PRODUCT DESCRIPTION

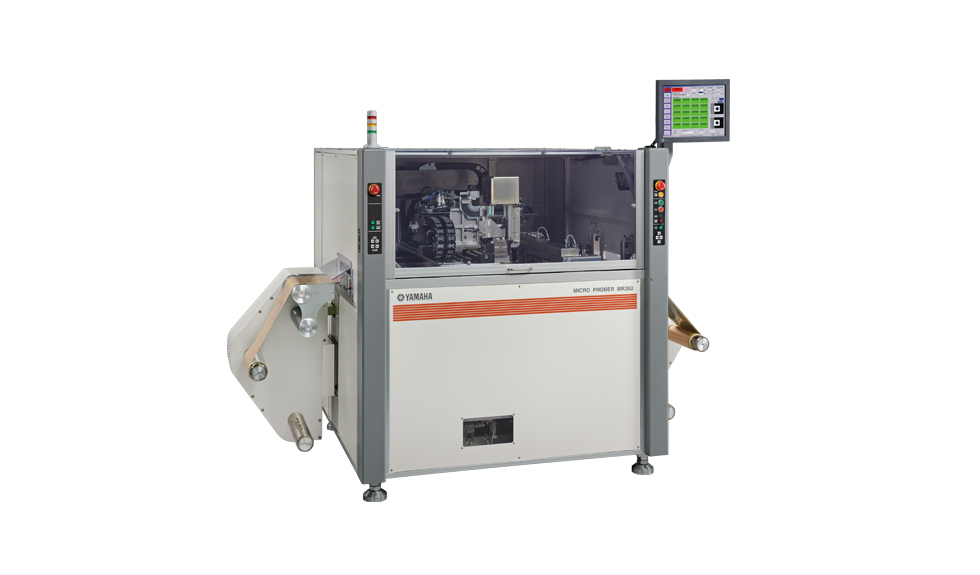

    A 260 mm wide roll transfer type machine. Continuity/insulation test with ±5 μm high accuracy is possible. With the grip feeding system, which is unlikely to damage work sheets, work sheets are fed.

features
  • Max. work sheet size:Roll width : 260mm
  • Max. test fixture size:When rotating:φ200mm When not rotating:X275 x Y100mm
  • Work sheet transfer:Loading:Roll Unloading:Roll
specifications
Model
MR262-GFR
Type
MR262-GFR-M5S
Application examples
Flex PCB, Rigid Flex PCB
Test capability-Max. number of test points
Upper head:1,534 / Lower head:1,022
Test capability-Work sheet size
Roll witdh : 100~260mm
Test capability-Max. test range*1
X400 x Y260 mm
Test capability-Max. test fixture size
When rotating:φ200mm / When not rotating:X275 x Y100mm
Test capability-Positioning accuracy*2
±5μm
Test specifications-Determination method
Open/short (pass/fail determined based on specified resistance value)
Test specifications-Open test*2
Test range: 2 wire test 10Ω~ 10kΩ (0.5mA,10mA) 4 wire test 1mΩ~ 500Ω (10mA, 40mA, 100mA)
Test specifications-Open test*2
Open voltage: 15V ~ 50V
Test specifications-Open test*2
Test accuracy: 2 wire test ±10% (50Ω~ 10kΩ), ±5Ω (10Ω~ 50Ω) 4 wire test ±10% (1mΩ ~ 500Ω)
Test specifications-Short test*2
Test range: 100kΩ~ 100MΩ
Test specifications-Short test*2
Test voltage: 50V ~ 250V
Test specifications-Short test*2
Test accuracy: ±10%
Test specifications-Options
μ Short test, Spark detection, Heating test, Non contact test
Work sheet transfer-Loading / Unloading
Rolll
Image processing-Camera view
X2.4 x Y1.8mm (standard)
Image processing-Pattern detection
Pattern recognition via grayscale
Image processing-Illumination type
Transmission light, reflection light
Hardware-Interface
LAN・USB
Hardware-Display
15 inch LCD with touch panel
Software-OS
Windows7
Software-Production support function
Automatic fixture correction, output of test result log, automatic retry test, fixture stroke count
Software-Production support function
Automatic fixture correction, output of test result log, automatic retry test, fixture stroke count

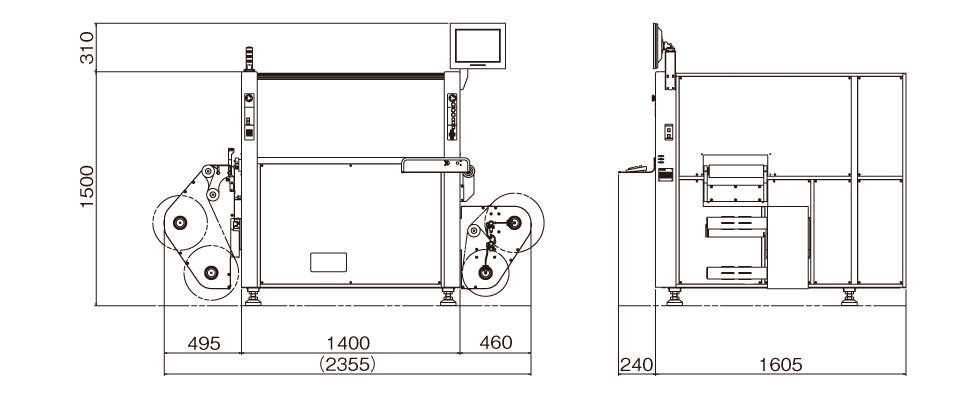

Usage environment-Weight
Approx. 1,300kg
Usage environment-Power supply
1-phase, 180 to 240V AC, 50/60Hz, 6kVA
Usage environment-Dry air
0.5MPa
