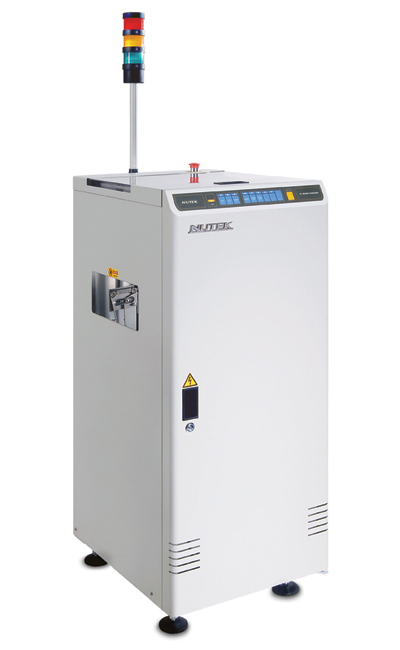

Bare Board Loader/with Pass Through Mode
PRODUCT DESCRIPTION

    Description

    This unit is used for loading of bare PCBs to the production line.

features
  • Surrounded with covers to provide highest level of safety
  • Top safety cover can be opened for easy access to hardware during maintenance
  • User friendly ‘soft touch’ LED membrane control panel
  • Adjustable suction positions provide better grips of PCBs
  • Smooth and parallel width adjustment
  • Small machine footprint
  • SMEMA compatible
specifications
NTM0200-M:Machine Dimension (mm) L x W x H
500 x 730 x 1330 mm
NTM0200-M:Fixed Point to Front Dimension (X)
234 mm
NTM0200-M:Weight (Approximately)
110 kg
NTM0200-L:Machine Dimension (mm) L x W x H
653 x 870 x 1330 mm
NTM0200-L:Fixed Point to Front Dimension (X)
234 mm
NTM0200-L:Weight (Approximately)
140 kg
NTM0200PM (Pass through):Machine Dimension (mm) L x W x H
500 x 730 x 1330 mm
NTM0200PM (Pass through):Fixed Point to Front Dimension (X)
234 mm
NTM0200PM (Pass through):Weight (Approximately)
110 kg
NTM0200PL (Pass through):Machine Dimension (mm) L x W x H
653 x 870 x 1330 mm
NTM0200PL (Pass through):Fixed Point to Front Dimension (X)
234 mm
NTM0200PL (Pass through):Weight (Approximately)
140 kg
