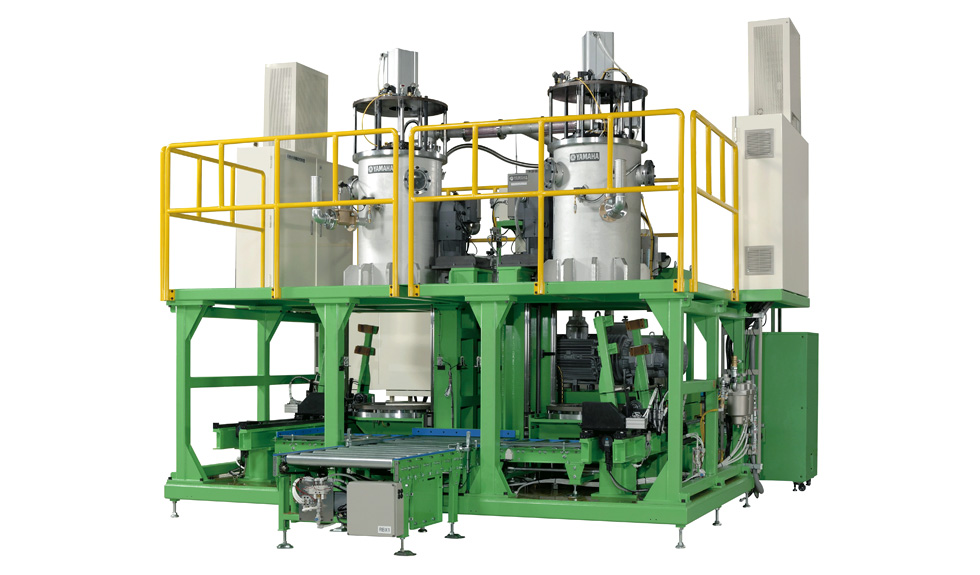

Leak Tester for Drums

PRODUCT DESCRIPTION

This tester contributes to productivity improvement through high-speed detection and high-speed transportation that match the drum production speed.

For drums, for which accurate leak detection is believed to be difficult, leak detection can be performed automatically and accurately by introducing the helium-based inspection. Moreover, units such as a peripheral transport unit are systematized, helping speed up transfer and detection.

High-speed transfer and high-speed inspection possible according to the drum production speed
Detection possible of tiny leaks from the wound-up or welded area at a processed point or tiny leaks due to material defect. Product reliability is greatly improved.
Cost reduction possible with the warp prevention mechanism, which does not require any fixture.
Production line configuration made easy by systematizing units such as a peripheral unit (transport) as an inspection station

Send Enquiry

features

Application examples : Drums
Applicable drum size : JIS Z 1601 International Standard type B Volume: 200 L
Detectable leak rate : Leakage from a hole with a diameter of 0.03 mm or more
Detection method : Vacuum chamber method

specifications

Type

Drums leak tester

Detection method

Vacuum chamber method

Cycle time

4.7 seconds* (2-chamber type) * The time varies depending on the specifications, program, and the number chambers.

Workpiece size

JIS Z 1601 and International Standard type B Volume: 200L

Detectable leak rate

Leakage from a hole with a diameter of 0.03 mm or more

Helium charging pressure

0MPa(G)

Chamber internal pressure

-0.1MPa(G)

Helium concentration

0.15% or less
