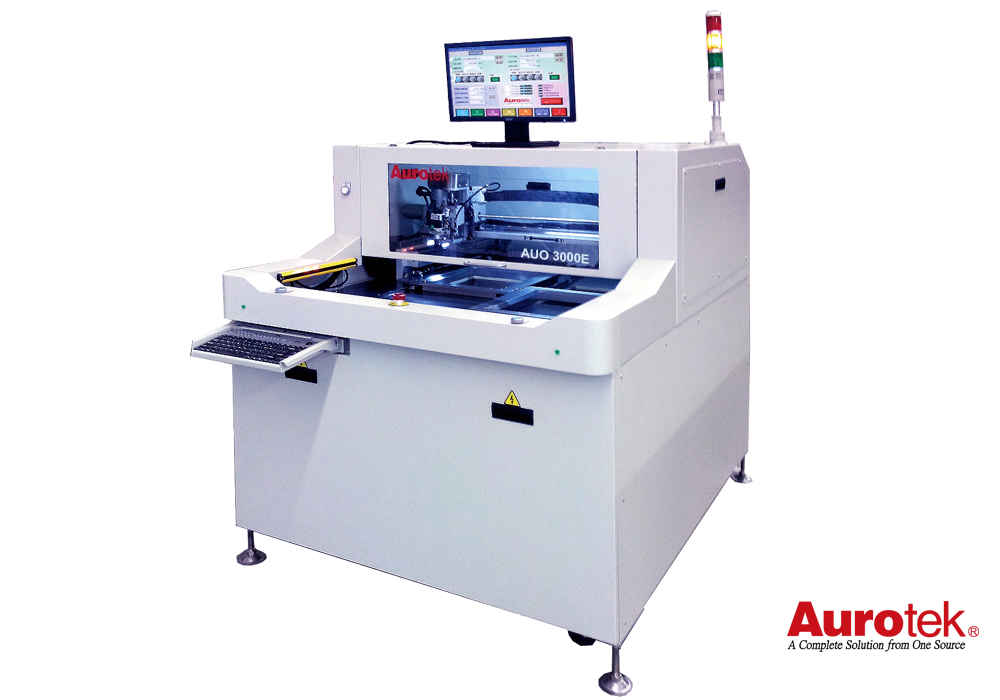

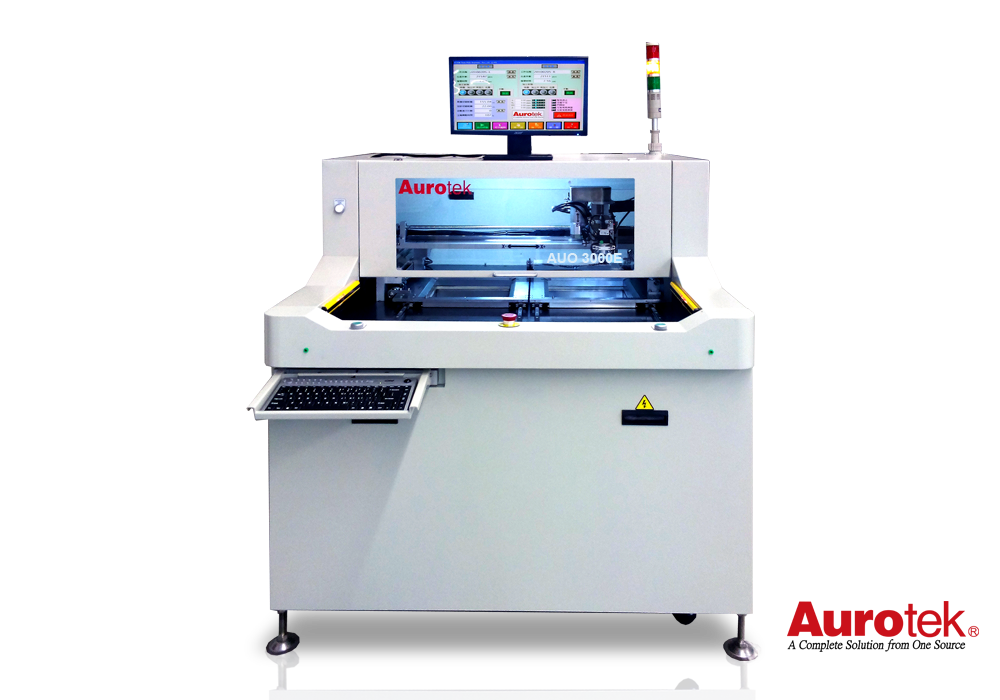

Semi-Automatic PCB Separator AUO 3000E
PRODUCT DESCRIPTION
Semi-Automatic PCB Separator
AUO 3000E
features
- 2-way sliding work exchanger provides a simultaneously in-and-out working to limit the idle time, which in turn reaches the utmost output value.
- Available in linear and cutting to diminish restrictions of PCB design.
- Friendly man-machine interface with 10X CCD Camera to minimize the time of programming.
- Auto Fiducial mark point check and cutting route auto compensation(option).
- Vacuum cleaner with auto power on/off function to save the power.
specifications
Setting Fixture
2 stations
Working Area
X: 33 0mm, Y: 330 mm, Z: 60 mm
Cutting Area
X: 330 mm, Y: 330 mm
CB Component Height
Top side：15mm
Bottom side：35mm(with universal jig)、45mm(with specific jig)
PCB Thickness
0.5 to 2.0 mm(It’s necessary to contact Aurotek in advance for over 2mm)
Router Bit Diameter
0.8 ~ 2.0 mm(Option：Over 2.0mm)
Precision of Cutting
± 0.1 mm
Positioning Repeatability
± 0.02 mm
Number of Axis in use
3 Axes (X, Y, Z).
Driving Speed (Max)
X, YL, YR: 750 mm/sec, Z: 500 mm/sec
Cutting Speed (Max)
X, Y, Z: 100mm/sec (It's according to the specification of Bit for the best speed setting )
Spindle Motor
High speed variable frequency motor 250W (Max.58,000rpm)
Bit Change
Manual
Cutting Ability
Linear, Circular, U-curve, Arc, L-curve
Bit Shift Count
Max. 2
Route Planning
Direct coordinate input or manual guiding with × 10 CCD camera
Safety Area Sensor
Option
Bit Break Detection
Option
Program Storage
HDD
Program Backup
USB
Operating System
Windows 10
Man-Machine Interface
Industrial Monitor + Keyboard + Mouse
Conveyor Adjustment
n/a
Conveyor load capacity
n/a
PCB Loading/Unloading
Manual
Power Supply
3 Phase AC220V±5% 50 Hz/60Hz, 2.5 kw
Air
0.5 Mpa
Dimensions
(W)1168mm x (D)1480mm x (H)1256mm + 565mm signal tower
Weight
approx. 390 Kg
Vacuum Cleaner
YSF-V553 3HP 2.2 kw
