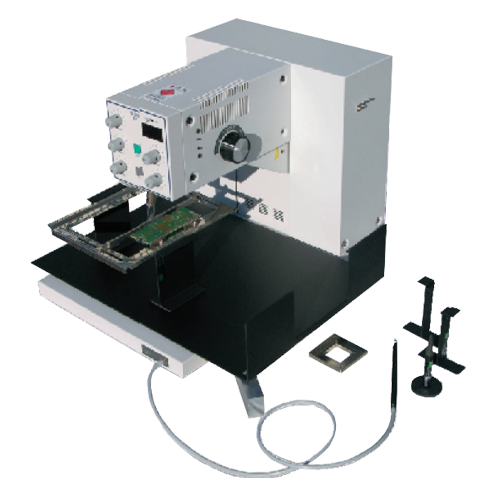

SD-3000II SMT Rework Station
PRODUCT DESCRIPTION

    Simple & Precise Operation.
    You Can Rework Nearly Any SMT Component

    This rework system is designed to remove most SMT components like QFPs, SOPs, PLCCs SOJs, PGAs, BGAs, Connectors and other chips. It does not require any special nozzles or additional accessories. Built in timer to prevent overheating of board and component. The hot air nozzle has an adjustable motion range of up to 50mm per axis.

    Standard Accessories

    • Vacuum Tweezer with Tube
    • 2 for PCB Holder Large (P/#H-2)
    • 2 for PCB Holder Small (P/#H-1)
    • PCB Support Pin (P/#H-3)
    • Thermo Couple
    • 5 Filters for Vacuum Pick (Tweezer)
    • Base Plate with 430mm x 300mm
    • Base Plate Stand (P/#S-1)
    • Metal Frame (P/#20-10-10)
    • 3 Suction Pads (Cups) for Vacuum Pick (Tweezer)



Download Brochure
features
  • Can handle most SMT parts of up to 50mm square without requiring different nozzles.
  • Can remove SMT connectors by setting a single axis motion.
  • The built in timer enables to prevent damage of PCB and near by parts caused by over heating.
  • Anybody can use this system without difficulty doe to the simplified programming.
  • Compact and light weight.
  • Low cost, highly efficient.
  • Can rework the micro components like 0603.
specifications
Heating Method
HOT AIR NOZZLE -4mm dia, 350 Watts
Airflow Rate
1.5L - 12L/min in 8 Steps
Air Pump and Vacuum Pump
Internal, Does not Require Shop Air
Nozzle Motion Range Maximum
X & Y: 0-50mm, Z=25mm
Temperature Control
Analog with Digital Readout for 260 to 600 °C
Timer Control
Analog with Digital Readout for 5 - 500 seconds
Max.PCB Size
Throat Depth=420mm, Width=Any Size
Power Consumption
AC100V, 120V or 230V 360W 50/60Hz
Dimensions
300mmW x 310mmHx 450mm D
Weight
9kg
