T501P-HA
PRODUCT DESCRIPTION

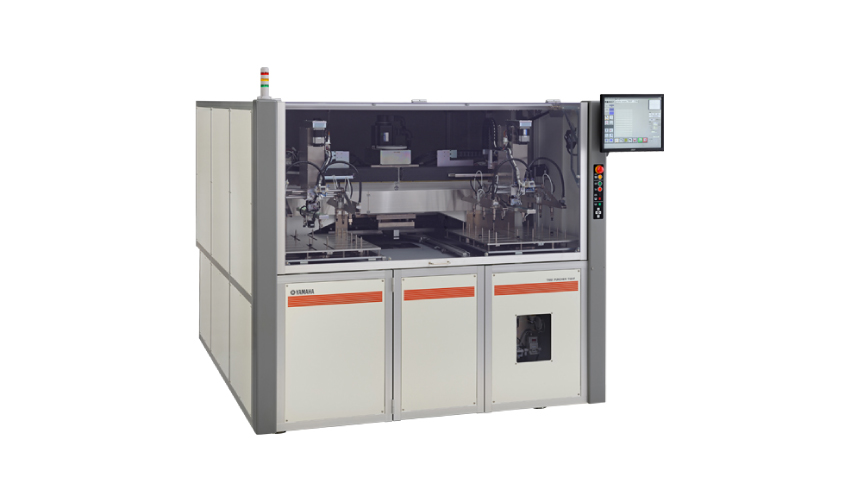

A full-automatic type of machine in which a work sheet is loaded/unloaded automatically. Up to 5 t thrust trimming at high speed (0.60 seconds/hole) with high accuracy (±20 μm) is possible. This machine contributes to labor savings.
features
- Max. work sheet size:X510 x Y610mm
- Work sheet transfer:Loading：Automatic Unloading：Automatic
- Thrust power:Approx. 5t
specifications
Model
T501P
Type
T501P-HA
Application examples
Flex PCB, Various film materials etc.
Processing capability-Work sheet size
X150~510mm / Y150~610mm
Processing capability-Range*1
Range excluding an area of X12 x Y55mm from four corners of work sheet
Processing capability-Accuracy*2
±20μm
Processing capability-Speed*2
0.6 s/shot
Punching head-No. of heads
1
Punching head-Thrust Power
Approx. 49,000N (5,000kgf)
Die module-Max. punching size
X150mm x Y150mm
Die module-Max. half-cutting size
X265mm x Y195mm
Die module-Built-in RFID
Provided
Work sheet transfer-Loading / Unloading
Automatic
Image processing-Camera view
X4.8 x Y3.6mm (standard)
Image processing-Pattern detection
Pattern recognition via grayscale
Image processing-Illumination type
Transmission light, reflection light
Hardware-Interface
LAN,USB
Hardware-Display
17 inch LCD with touch panel
Software-OS
Windows7
Software-Production support function
Punching deviation measurement, NG punching, automatic creation of optimal punching path, automatic punching offset, punching deviation accuracy measurement, measurement result output, die shot count

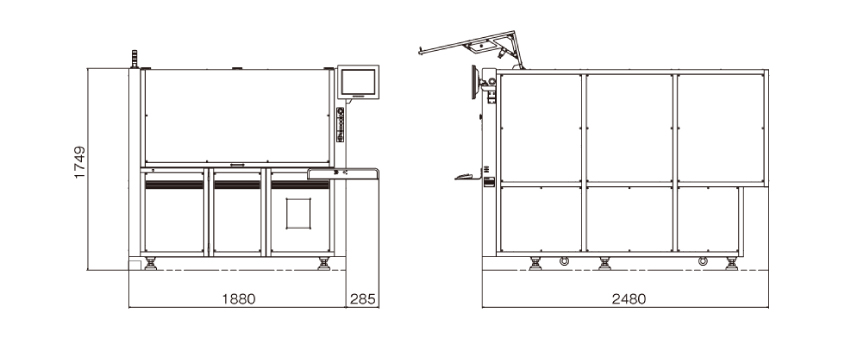

Usage environment-Weight
Approx. 3,000kg
Usage environment-Power supply
3-phase, 180 to 240V AC, 50/60Hz, 5kVA
Usage environment-Dry air
0.5MPa
