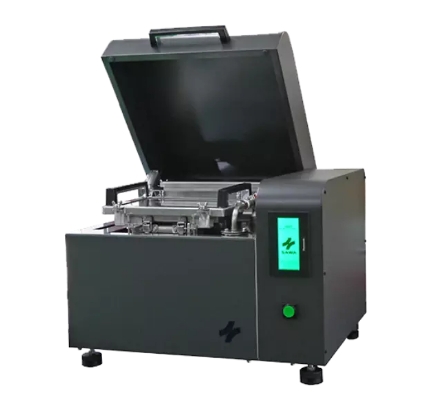

SC-ENX
PRODUCT DESCRIPTION
Compatible with most of mounter manufacturers
Clean 20 nozzles in about 10 minutes
features
- SC-ENX can clean 80 nozzles at one time.
- We offer a wide range of nozzle holders suitable to the mounter manufacturers.(Some nozzle holders may not fit to the cleaner.)
- Technology of ultrasonic and vacuum system brings perfect cleaning because ultrasonic water passes through completely into every nozzle opening by vacuum state.
- There are almost no damage to nozzles by not to splash water to the reflector.
- Use “Purified Water” for regular cleaning.
specifications
Product No.
SC-ENX
Outside dimention and Weight
W: 500 x D: 511 x H: 353 mm
Approx. 28.5 kg
Power
AC 110, 120, 220, 240 V 50/60 Hz (Selectable)
30 VA
Ultrasonic
40 kHz, 9 W
Air
0.3 MPa, 180±10 NL/min
Cleaning agent
Purified water
Mode
Clean 5 or 10 min
Suction 5 min
Promotion Movie
