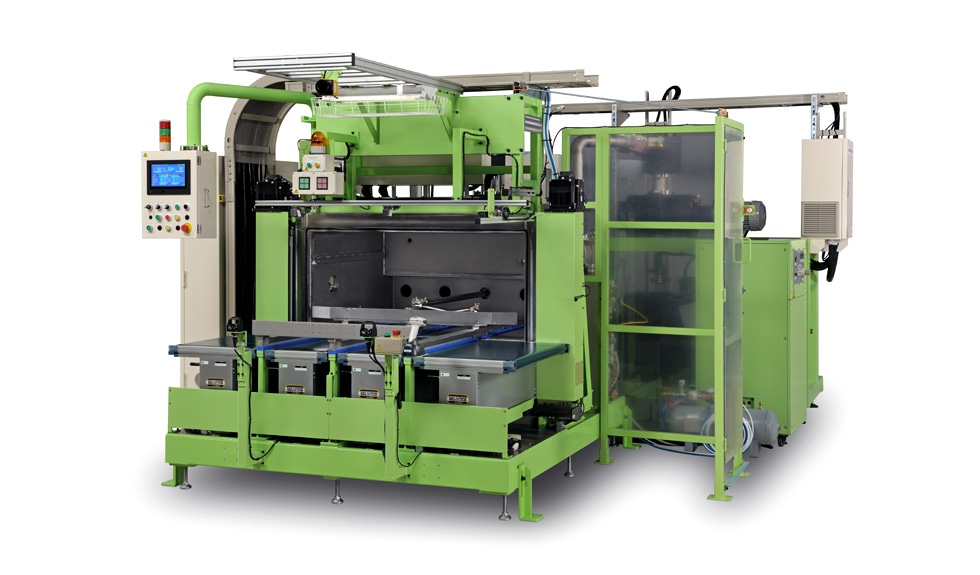

Leak Tester for Fuel Tanks
PRODUCT DESCRIPTION
- ycle time: approximately 30 seconds *Depends on the equipment
- Various fail-safe functions provided. Inspection circuit protected when measuring a workpiece with heavy leakage
- Cost reduction possible with the warp prevention mechanism, which does not require any fixture.
The leak tester is specially used for fuel tanks for automobiles and motorcycles. Various fail-safe functions are provided to protect the inspection circuit when measuring a workpiece with heavy leakage.
features
- Applicable tank size : Max. 1200 x 800 x 250mm
- Detectable leak rate : 1.0x10-5Pa・m3/s
- Detection method : Vacuum chamber method
specifications
Type
Leak Tester for Fuel Tanks
Detection method
Vacuum chamber method
Cycle time
30 seconds* (Standard specifications 2-chamber type)
* The time varies depending on the specifications, program, and chamber section.

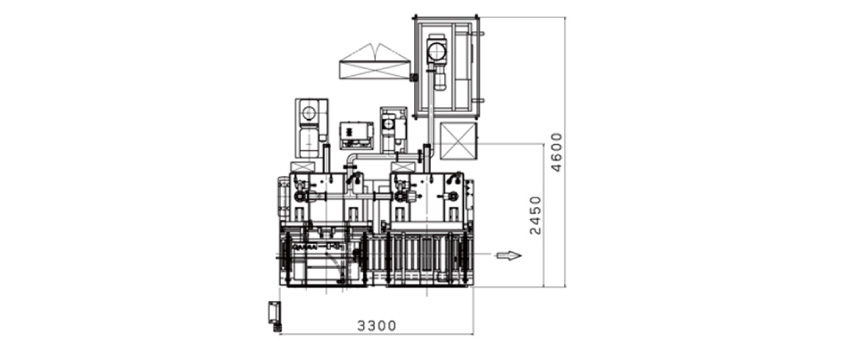

Workpiece size
Max. 1200 x 800 x 250mm
Detectable leak rate
1.0×10-5Pa・m3/s
Helium charging pressure
-0.09MPa(G)
Chamber internal pressure
-0.1MPa(G)
Helium concentration
100%*
* As an option, a helium recycling unit can be installed.
