MR262E
PRODUCT DESCRIPTION

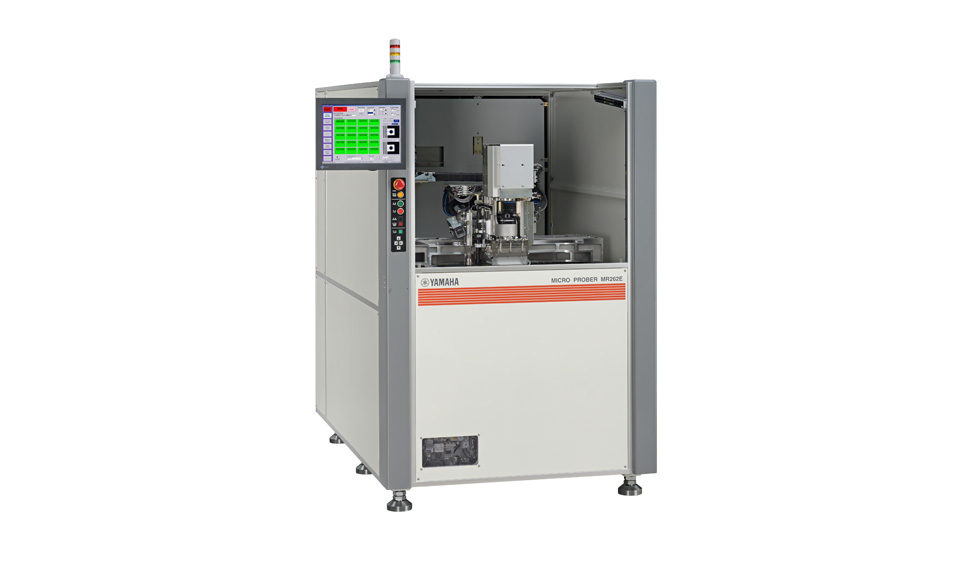

The top model incorporating the latest testers. The MR Series boasts the highest number of detection points.Maximum supported sheet size increased to 260 x 500 mm.
features
- Max. work sheet size:(X)260 x (Y)500mm
- Max. test fixture size When rotating：φ200mm When not rotating：X300 x Y150mm
- Work sheet transfer:Loading：Manual Unloading：Manual

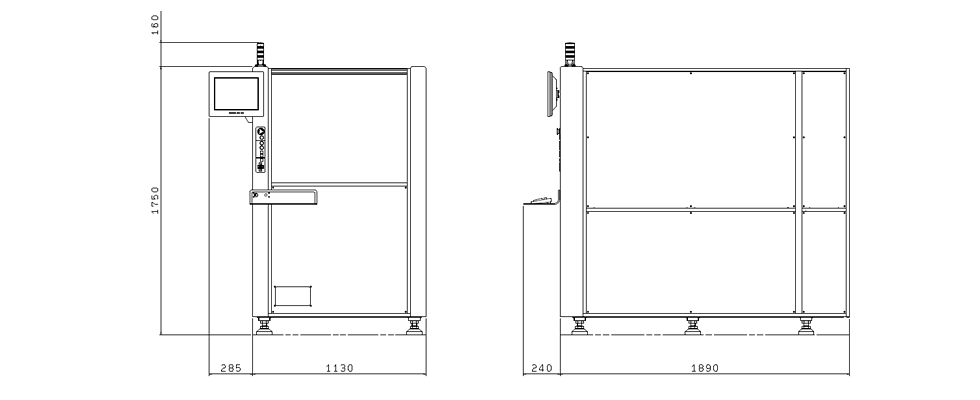

specifications
Model
MR262E
Type
MR262E-QM5T
Application examples
Flex PCB, Rigid Flex PCB
Test capability-Max. number of test points
Upper head : 4,094 / Lower head : 4,094
Test capability-Work sheet size
X50～260mm / Y40～500mm
Test capability-Max. test range*1
Range excluding an area of X7.5 x Y9.0mm from four corners of work sheet
Test capability-Max. test fixture size
When rotating : φ200mm / When not rotating : X300 x Y150mm
Test capability-Positioning accuracy*2
±5μm
Test specifications-Determination method
Open/short (pass/fail determined based on specified resistance value)
Test specifications-Open test*2
Test range : 2 wire test 10Ω～10kΩ(0.5mA, 10mA)
4 wire test 1mΩ～500Ω(10mA、40mA、100mA)
Test specifications-Open test*2
Open voltage : 15V ～ 50V
Test specifications-Open test*2
Test accuracy : 2 wire test ±10％(50Ω～10kΩ), ±5Ω(10Ω～50Ω)
4 wire test ±10％(1mΩ～500Ω)
Test specifications-Short test*2
Test range: 100kΩ～ 100MΩ
Test specifications-Short test*2
Test voltage: 50V ～ 250V
Test specifications-Short test*2
Test accuracy: ±10%
Test specifications-Options
μ Short test, Spark detection, Heating test, Non contact test
Work sheet transfer-Loading / Unloading
Manual
Image processing -Camera view
X2.4 x Y1.8mm (standard)
Image processing -Pattern detection
Pattern recognition via grayscale
Image processing -Illumination type
Transmission light, reflection light
Hardware-Interface
LAN,USB
Hardware-Display
15 inch LCD with touch panel
Software-OS
Windows7
Software-Production support function
Automatic fixture correction, output of test result log, automatic retry test, fixture stroke count
Usage environment-Weight
Approx. 1,300kg
Usage environment-Power supply
1-phase, 180 to 240V AC, 50/60Hz, 6kVA
Usage environment-Dry air
0.5MPa
