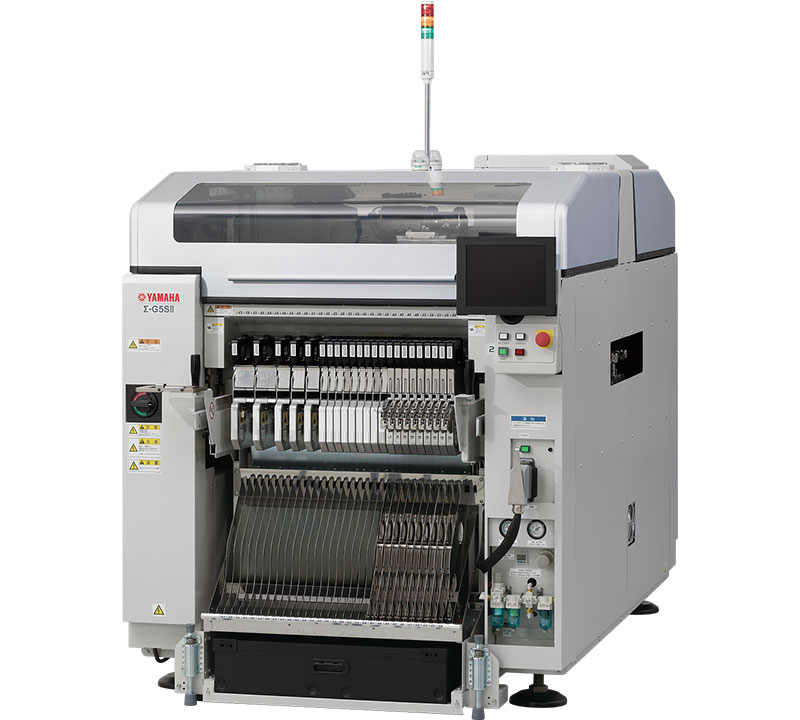

Σ-G5SⅡ
PRODUCT DESCRIPTION
- Two new head types in an evolution of the “1-head solution” to achieve high productivity: Accommodates super-small 0201mm (0.25 × 0.125 mm) size components and large components
- Extended detection range of components held for better mounting quality
- Larger internal buffer size to reduce feeding loss with large PCBs
- Further detail revisions and refinements for added reliability
- Compatibility with previous models
features
- Overdrive motion
- High-speed one-by-one pickup & mounting
- Full range of feeder and supply device options to match your production format
- The Super Loading Feeder totally innovates components supply tasks!
specifications
Applicable PCB-Single lane
L610×W510 mm to L50×W50 mm
(Optional: L1,200×W510 to L50×W50 mm)
Applicable PCB-Dual lane
L610×W250 mm to L50×W84mm (dual feed)
L610×W415mm (single feed)
Mounting capability
High-Speed Multi-Head×2 specifications: 90,000 CPH (single lane/dual lane)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)-High-Speed Multi (HM) Head
0201mm/03015mm: ±25μm/80,000 CPH
0402mm: ±36 μm/85,000 CPH
0603mm: ±40 μm/90,000 CPH
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)-Flexible Multi (FM) Head
±15μm
Applicable components-High-Speed Multi (HM) Head
0201mm to L44×W44×H12.7 mm or under
Applicable components-Flexible Multi (FM) Head
1005mm to L72×W72×H25.4 mm or under
Connector: 150×26 mm
Number of component types
120 types max. (8 mm wide tape equivalent)
Power supply
3-phase AC200V ±10%, 50/60Hz
Air supply source
0.45 to 0.69 MPa (4.6 to 7 kgf/cm²)
External dimension (excluding projections)
L 1,280 x W 2,240 x H 1,450mm
Weight
Approx. 1,800 kg
