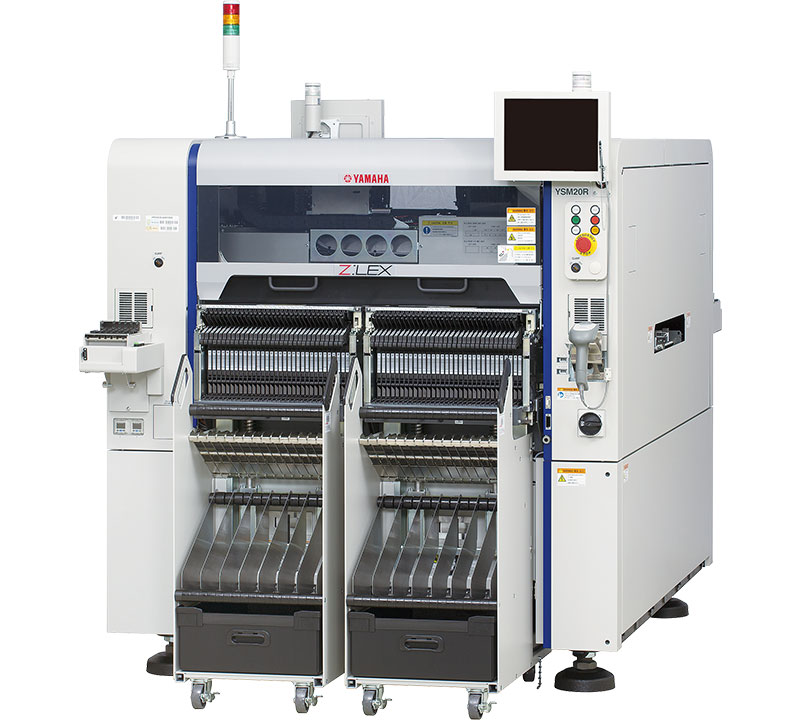

YSM20WR

PRODUCT DESCRIPTION

World’s fastest mounting speed in its class; 5% faster than the YSM20.
Featuring a new wide-scan camera with improved component adaptability.
Optional features improving line operating rate without stopping the machine

Download Brochure

Send Enquiry

features

Conveyors available in freely configurable variations.
Needs no head replacement! 0201mm to large-size components
Realize non-stop components supply

specifications

Applicable PCB

Dual lane / Note 1 Same type PCBs: L810 x W356 to L50 x W50 / Different type PCBs: up to L810 x W662 / Note 2 Same type PCB: L810 x W280 to L50 x W500 / Different type PCBs: up to L810 x W510

Head / Applicable components

High-Speed Multi (HM) Head / Note 3 0201mm to W55 x L100mm, Height 15mm or less / Odd-shaped components (FM: Flexible Multi) head: / 03015mm to W55 x L100mm, Height 28mm or less

Mounting capability (under optimum conditions as defined by Yamaha Motor)

X axis 2-beam Note 1: High-speed multi-purpose (HM: High-speed Multi) head x 2 81,000CPH

Mounting accuracy

±0.035mm (±0.025mm) Cpk≧1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)

Number of component Types

Fixed plate: Max. 140 types (conversion for 8mm tape feeder) Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder) Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10)

Power supply

3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz

Air supply source

0.45MPa or more, in clean, dry state

External dimension (excluding projections)

L 1,374 x W 2,110 x H1,445mm (Main unit only)

Weight

Approx. 2,500kg (Main unit only)
