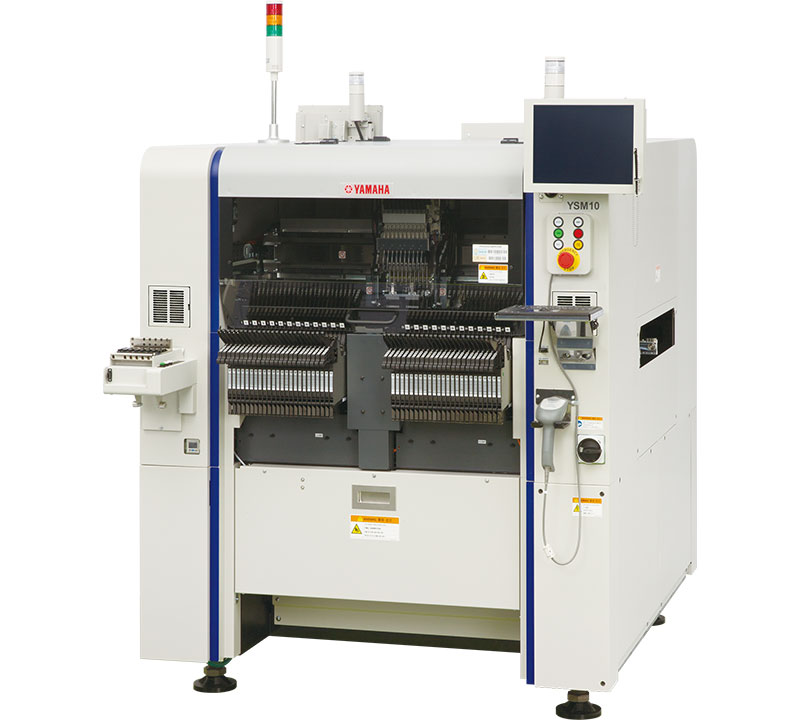

YSM10

PRODUCT DESCRIPTION

YSM series entry model mounter that achieved both the world’ s fastest speed and versatility in its class worldwide!
Ultimate basic machine featuring the three "1"
Flexible response for different production configurations!
Functions that ensure stable production

Download Brochure

Send Enquiry

features

Entry model that has both high speed and flexibility
Mounting speed makingit No. 1 in its class!
1 head solution!
Flexible response for different production configurations!

specifications

Applicable PCB

L 510 x W 460mm - L 50 x W 50mm / Note : Available in lengths up to L950mm as an option.

Applicable components

03015mm to W55 x L100mm (For parts sizes larger the width 45mm, recognition of parts is divided into sections.), Height 15mm or less Note : A multi camera (option) is required for part heights exceeding 6.5mm or part sizes exceeding 12mm

Mounting capability

HM head (10 nozzle) specification : 46,000CPH (under optimum conditions as defined by Yamaha Motor) HM 5 head (5 nozzle) specification : 31,000CPH (under optimum conditions as defined by Yamaha Motor)

Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)

+/-0.035mm (+/-0.025mm) Cpk 1.0 (3σ)

Number of component types

Fixed plate : Max. 96 types (conversion for 8mm tape feeder) Tray : 15 types (maximum when equipped with sATS15, JEDEC)

Power supply

3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz

Air supply source

0.45MPa or more, in clean, dry state

External dimension

L1,254 x W1,440 x H1,445mm

Weight

Approx. 1,270kg
