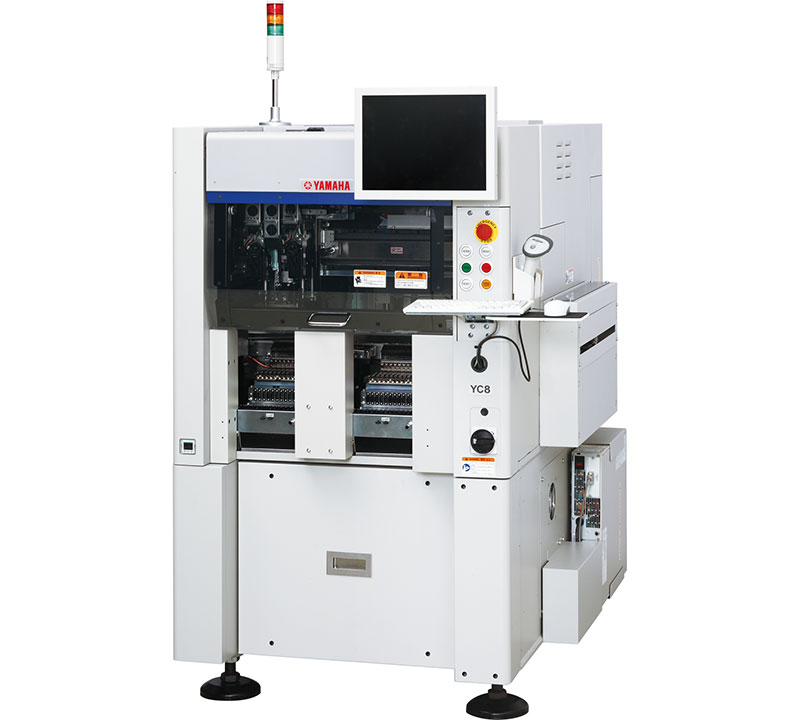

YC8
PRODUCT DESCRIPTION
- Maximum components
Size : 100 x 100mm
heights : 45mm - Capable heavy components up to 1kg Supports press fitting of components
- Compact machine width of 880 mm allows for more efficient use of factory floor space
- Utilizes the ATS15 automatic tray supply unit capable of handling up to 15 trays
- Compatible with the “SS Feeder” and “ZS Feeder”
features
- Maximum components Size : 100 x 100mm Heights : 45mm
- Capable heavy components up to 1kg. Supports press fitting of components
- Capable with large nozzles
- Automatic tray supply unit
specifications
Applicable PCB
L50 x W50mm to L330 x W360mm *1
Mounting accuracy-When using Yamaha's standard components
Absolute accuracy (μ+3σ):+/-0.05mm /QFP
Repeatability(3σ) +/-0.03mm /QFP
Mounting capability-Indication
2.5sec/component (Cycle time from a pickup to mounting with recognition)
Applicable components
4 x 4mm to 100 x 100mm *2 /
(Some components larger than 45 x 45mm ane conditional) /
Maximum components heights 45mm / Maximum payload 1kg
Component supply configuration: Number of component types
Tape reel : MAX. 28 types (8mm width) / Tray : MAX. 15 trays Stick
Power supply
3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source
0.45MPa or more, in clean, dry states

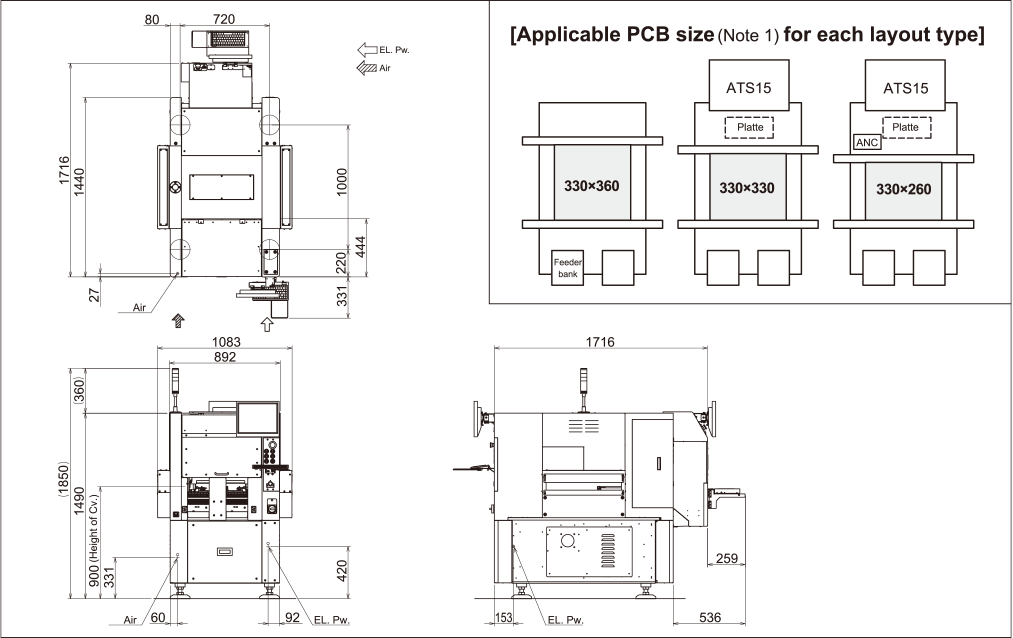

External dimension (excluding projections)
L 880 x W1,440 x H1,445mm (Main unit only) / L 880 x W1,755 x H1,500mm (When ATS15 is installed)
Weight
Approx. 1,000kg (Main unit only)
ATS15 : Approx. 120kg
