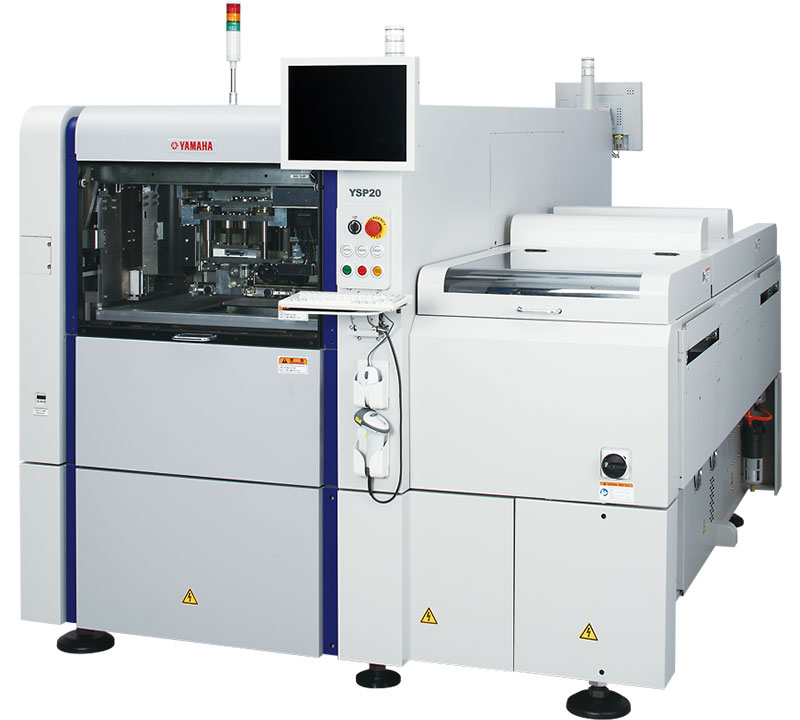

YSP20
PRODUCT DESCRIPTION
- Super high-speed printing 5sec/cycle
- Positioning repeatability 3σ:+/-0.005mm
- Handles large PCBs L510 x W460mm
- Large stencils front & rear MAX.750x750mm
features
- With dual stage & dual stencil
- Non-stop setups & changeovers
- YAMAHA’s original 3S head[3S:Swing Single Squeegee]
- Handles large PCBs
specifications
Applicable PCB
L510 x W460mm to L50 x W50mm
Printing head
3S head (3S : Swing Single Squeegee)
Printing accuracy
Printing accuracy (3σ) : +/- 0.025mm
Positioning repeatability (3σ) : +/- 0.005mm
Cycle time
Approx. 5 sec (Standard printing : under optimum condition)
Applicable stencil size
750 x 750mm, 736 x 736mm
750 x 650mm, 650 x 550mm
Power supply
3-Phase AC 200/208/220/240/380/400/416V +/- 10%
Air supply source
0.45MPa

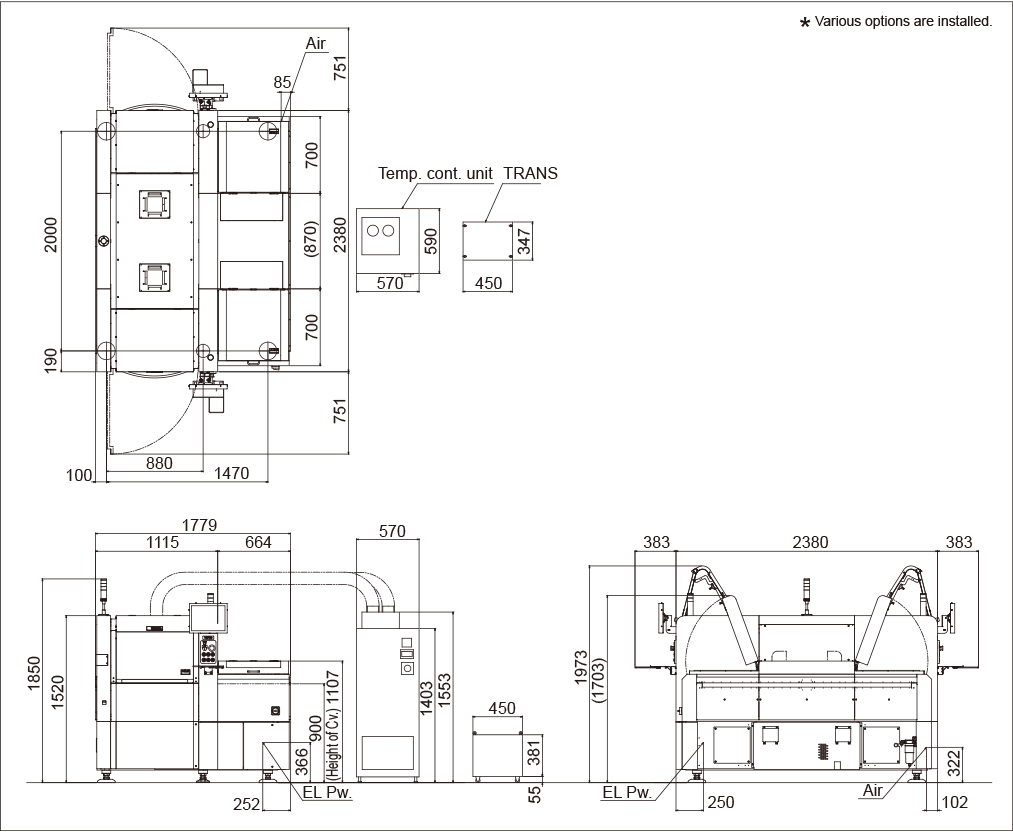

External dimension
L1,779 x W2,410 x H1,520mm (excluding projections)
Weigh
Approx. 2,900kg
