JADE PRO

PRODUCT DESCRIPTION

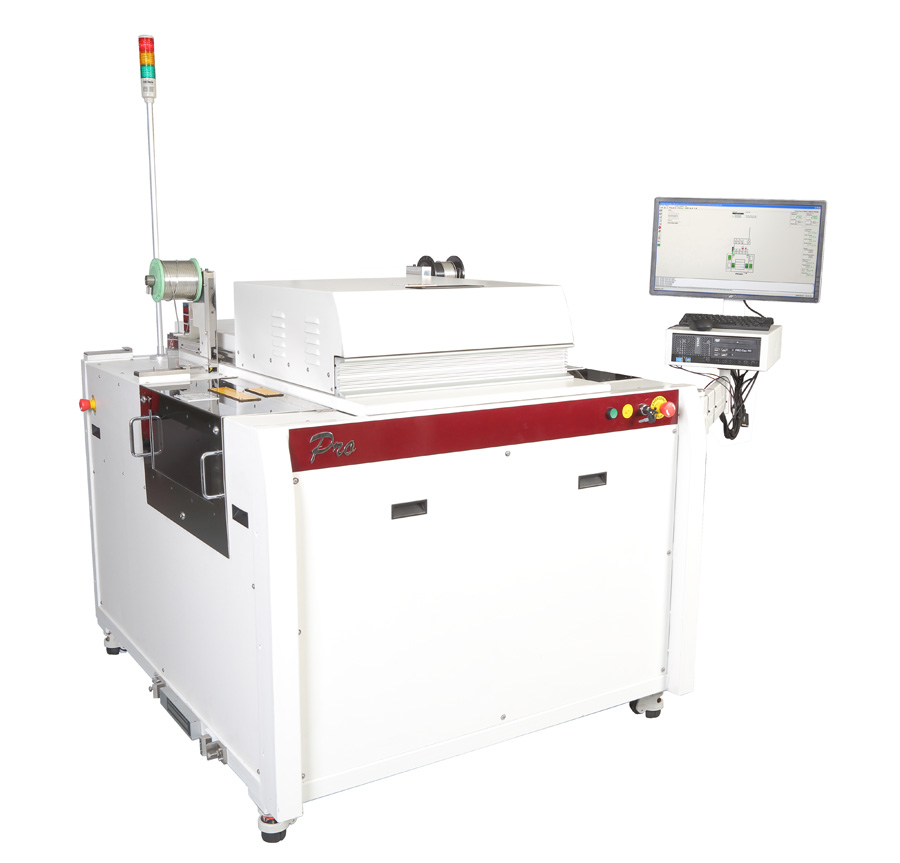

The Jade PRO is a hand load system, incorporating a universally adjustable tooling carrier capable of accommodating PCBs or pallets up to 457x508mm.

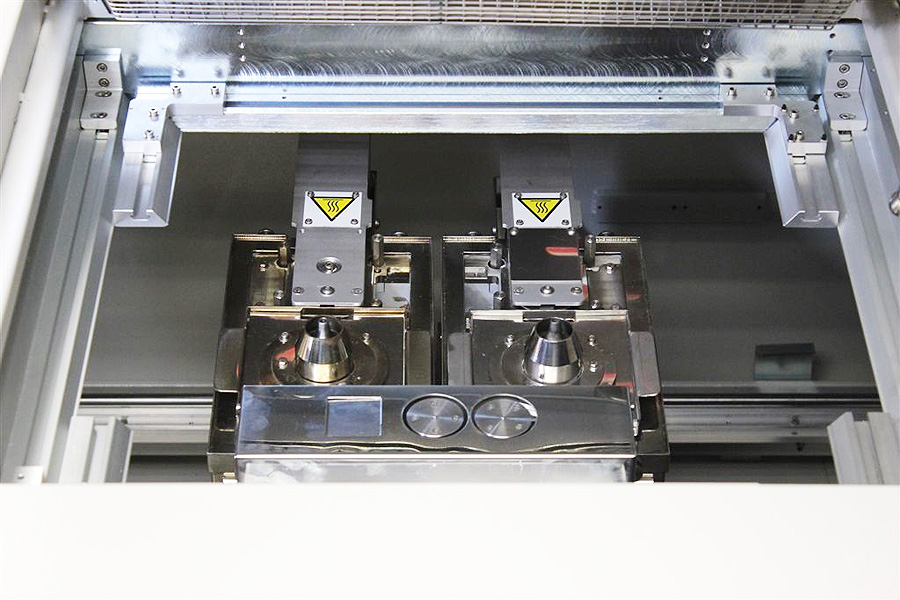

The Jade PRO is configured with twin adjacent solder baths on independent Z axis drives. This achieves increased production flexibility by permitting use of two different nozzle tip sizes which can be allocated as process requirements dictate within any particular area on a PCB..

The Jade PRO series is controlled by a PC, through PillarCOMM, a Windows^® based ‘Point & Click’ interface with a PCB image display.

Additionally our PillarPAD offline programming package allows the operator to produce programs independently from the machine using Gerber data.

Download Brochure

Send Enquiry

features

DC servo drives
Integral PC and machine mounted monitor
Twin solder bath capability on independent Z axis
Inerted Nitrogen system
Internal fume extraction
Titanium Drop-Jet fluxer
Universally adjustable tooling carrier

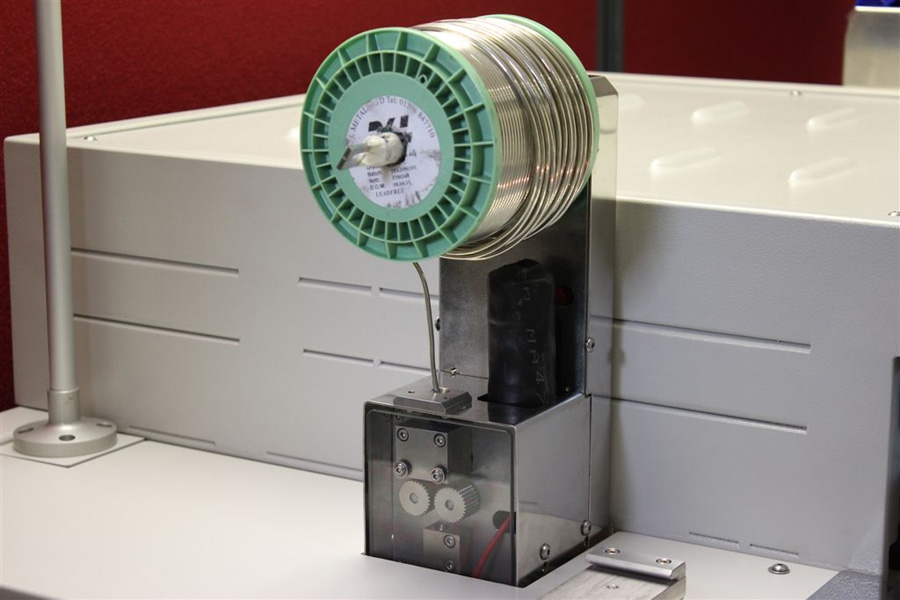

Auto motorised wire solder feed & level detect
Solder bath coding – identifies correct bath for program
Solder wave height measurement and correction
Set of AP style solder nozzle tips
Thermal nozzle calibration system using integrated setting camera
Auto-nozzle conditioning system
Manual fiducial correction system
Colour programming camera
Process viewing camera(s)
Multilevel password protection
Light stack
PillarCOMM Windows® based ‘Point & Click’ interface
PillarPAD offline programming system
Lead-free compatible
Day-to-day service kit

specifications

Height

1230mm / 48” to 2025mm / 80″- with light stack

Width

1250mm / 49“ to 1700mm / 67”- with side auto changer

Depth

1495mm / 59” 1720mm / 68” with flux bottles

Board size

457mm x 508mm / 18”x 20”

Edge clearance:

Above / below 3mm

Height clearance

Above / below 40mm nominal 90mm max. top-side only

Solder

Most commonly used solder types – including lead-free

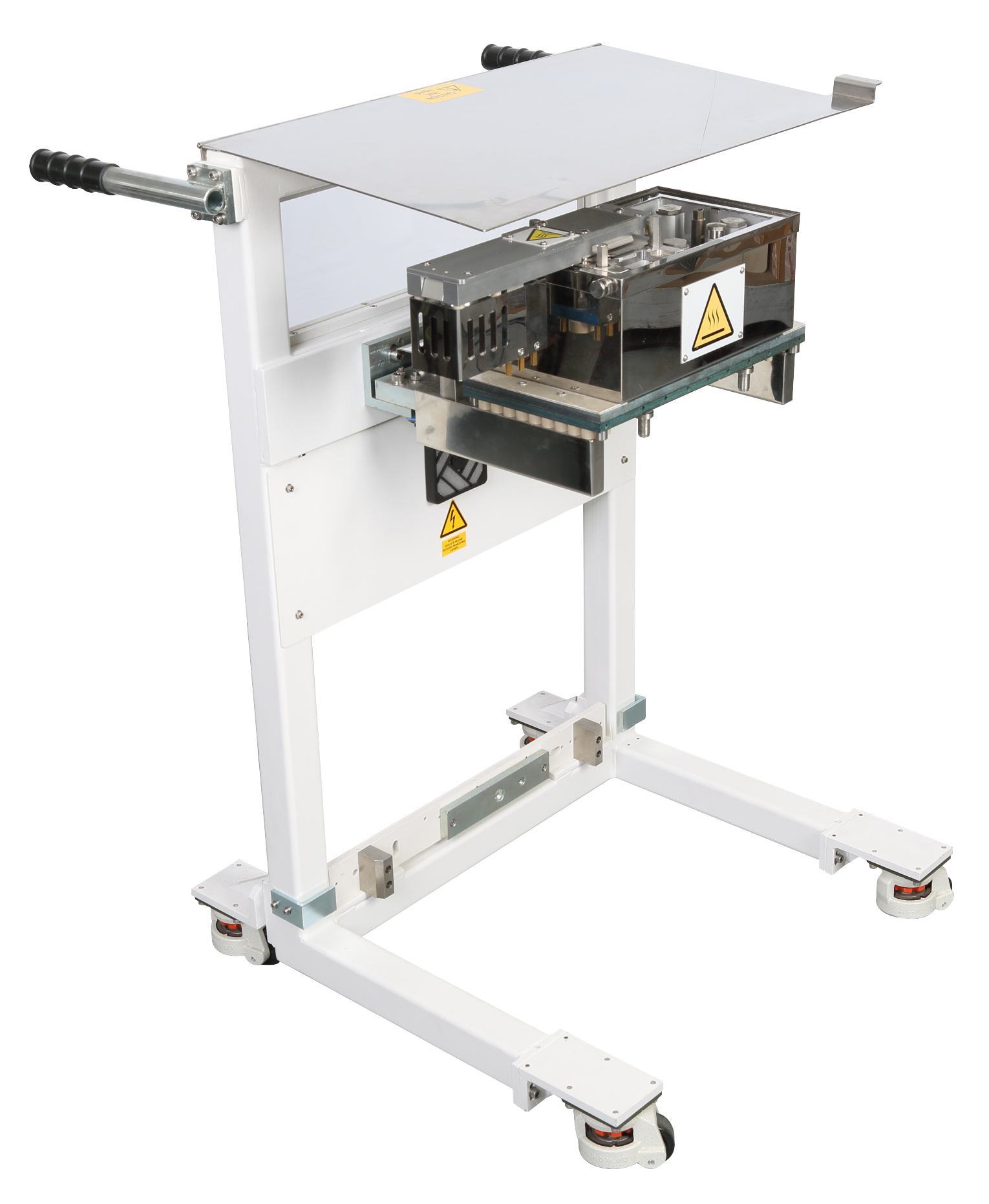

Solder pot capacity

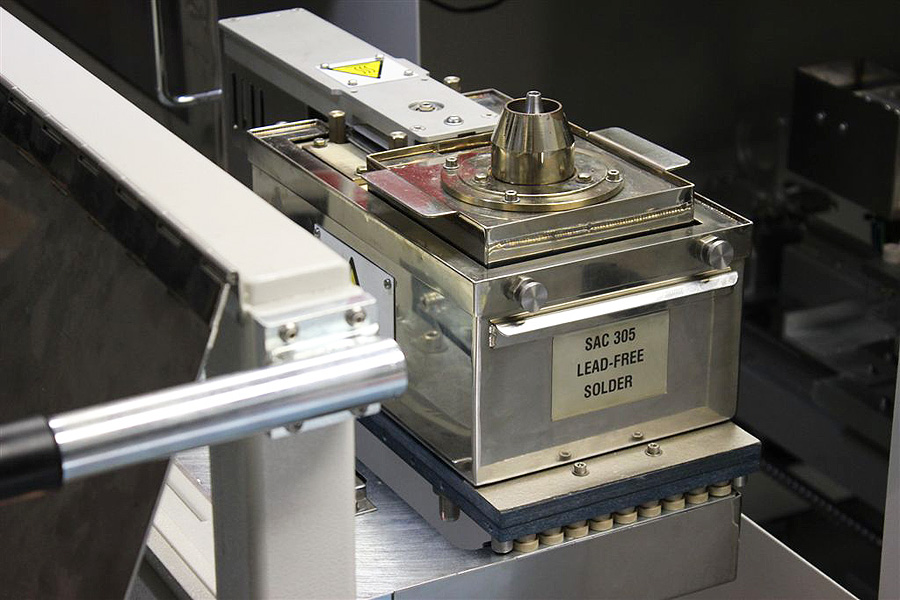

20kg standard – 30kg large bath

Applicators

AP style – 2.5mm to 16mm dia. Extended AP style – 2.5mm to 20mm dia. Micro nozzle – 1.5mm to 2.5mm Jet-Tip style – 6mm to 40mm dia. Jet-Wave style – up to 25mm width Special dedicated nozzles available upon request

Flux

Low maintenance Drop-Jet system. Low solids (below 8%), no clean flux, pressurised and inerted system, optional water-soluble system available

X, Y & Z Axis resolution

0.1mm

Repeatability

+/- 0.05mm

Nitrogen usage

Up to 40 litres gas/min per bath with standard AP solder nozzle, 5 bar pressure. Refer to Pillarhouse for Nitrogen usage requirement with dedicated multi-tube nozzle assemblies.

Nitrogen purity

99.995% or better

Air supply pressure

5 bar / 72 psi

ower supplies

Three-phase + neutral + PE

Voltage

230V phase to neutral / 400V phase to phase

Frequency

50/60Hz

Power

Maximum 9kVA per phase machine configuration dependent
