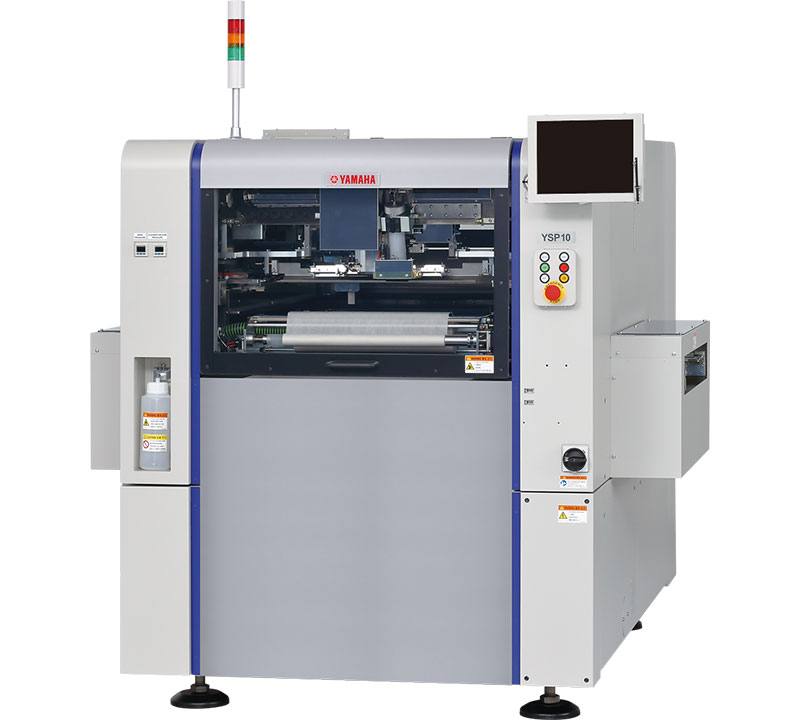

YSP10
PRODUCT DESCRIPTION
- Ultra Fast Cycle Time
- Supports fully autonomous stencil exchange
- Delivers both high quality & super-accurate printing!
- Supports extra-large boards & large-size stencils
- Full range of options
features
- YAMAHA’s original 3S head
- Supports fully autonomous stencil exchange
- Ultra Fast Cycle Time
- Supports extra-large boards & large-size stencils
specifications
Printing heads
L510 x W510mm to L50 x W50mm (option : L610 x W510mm)
Printing head
3S head (3S : Swing Single Squeegee) (option : Double squeegee head)
Printing accuracy
Positioning repeatability (6σ) : +/- 0.01mm
Printing line tact
10sec (Standard printing : under optimum condition, including board transfer time and printing time)
12sec (Including cleaning : under optimum condition, including board transfer time and printing time)
Applicable stencil size
L750×W750mm
L736×W736mm（29″）
L750×W650mm
L650×W550mm
L600×W550mm
L550×W650mm
L584×W584mm（23″）
Power supply
Single-phase AC 200 to 230V +/-20V
Air supply source
0.4MPa or more

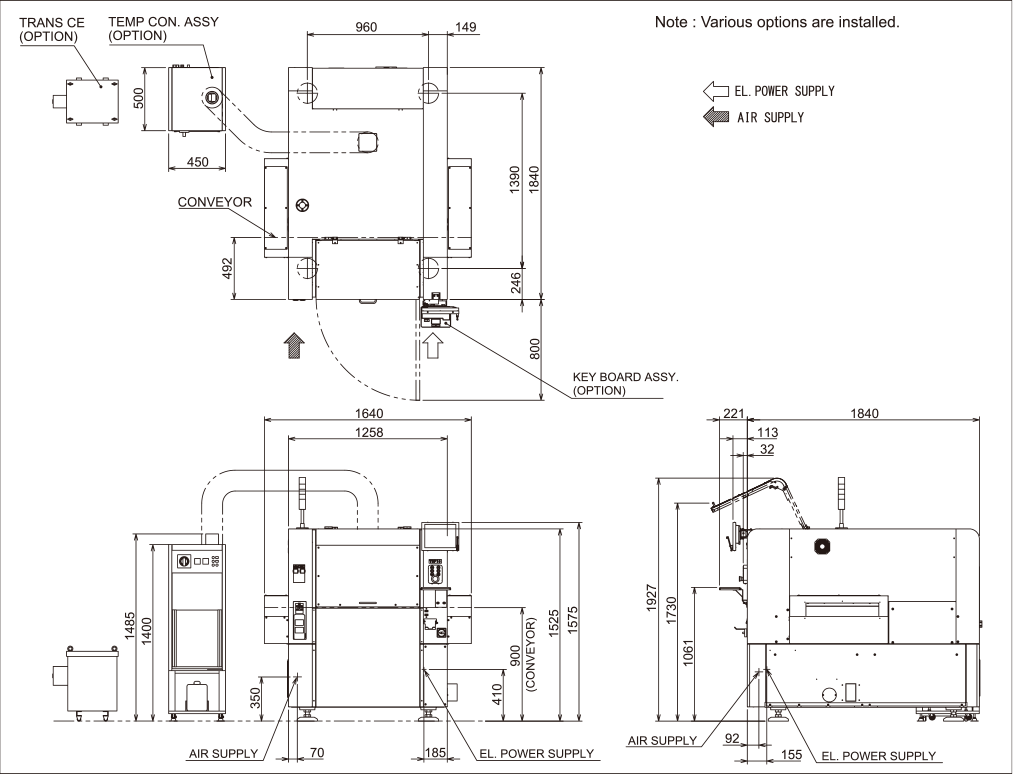

External dimension (excluding projections)
L1,640 x W1,990 x H1,525mm (full range of options)
Weight
Approx. 1,700kg
