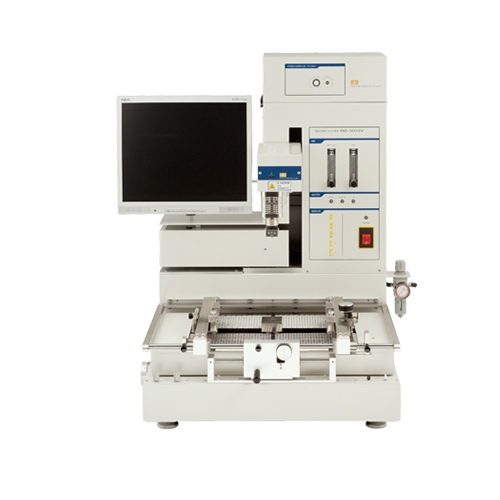

RD-500SV (M Size)

PRODUCT DESCRIPTION

All-IN-ONE Advanced Technology SMT Rework Station
Compatible for all kind of rework for different type of SMT components

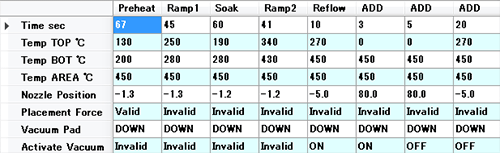

Multi-functional profiles can be handled at will
Wide support to industrial large-scale and small-scale circuit boards, including 01005 components
Contact-less cleaning
Control of the Z-axis
770W×755D×854H　(Without foot）

Download Brochure

Send Enquiry

features

Multi-functional profiles can be handled at will Wide support to industrial large-scale and small-scale circuit boards, including 01005 components
Wide support to industrial large-scale and small-scale circuit boards, including 01005 components

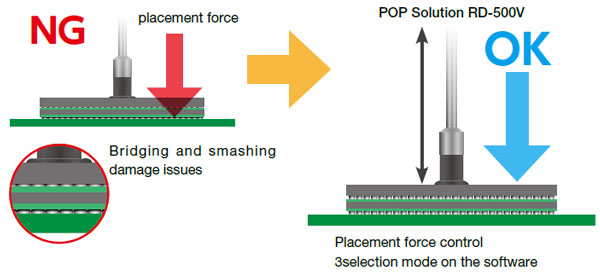

Safety Features: RD-500V has a unique safety feature, it will run safely and simple.

specifications

Maximum board size

400mm x 420mm

Device size range

01005(0402mm) or more

Placement Accuracy

±0.015mm

Electrical Requirement

AC200-240V 4kW

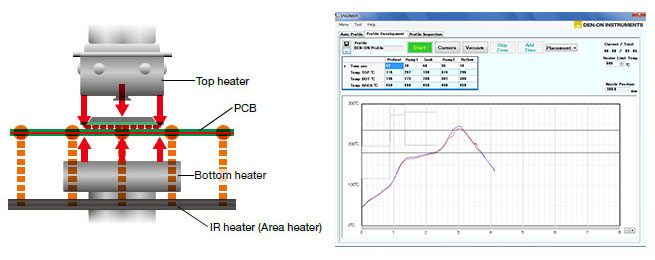

Top Hot Air Heater

1000W

Bottom Hot Air Heater

1000W

Area Heater

500W x 4IR 2000W

Temp setting range

0 to 650˚C

Operating System

Dedicated controller(PC-500V)

Monitor

17 inches LCD

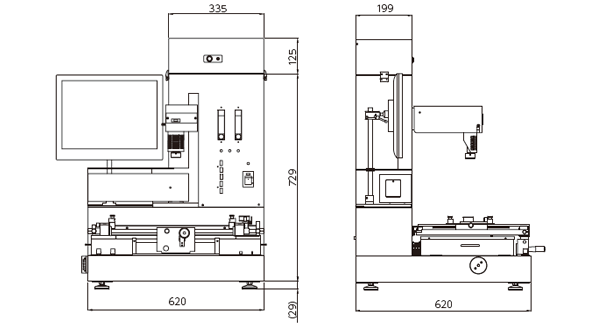

External dimensions

620W x 620D x 854H

Overall Weight

70kg

Air Requirements

0.7MPa(110L/min)
