T502
PRODUCT DESCRIPTION

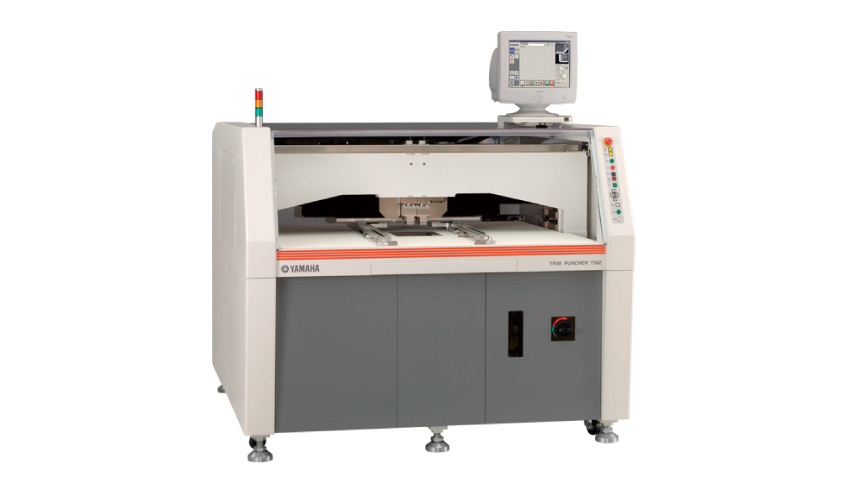

A high-speed type of machine in which a work sheet is loaded/unloaded manually. Double heads are installed, and 0.6 t thrust trimming at high speed (0.70 seconds/hole) with high accuracy (±20 μm) is possible for each head.
features
- Max. work sheet size:X510 x Y510mm
- Work sheet transfer:Loading：Manual Unloading：Manual
- Thrust power:0.6t

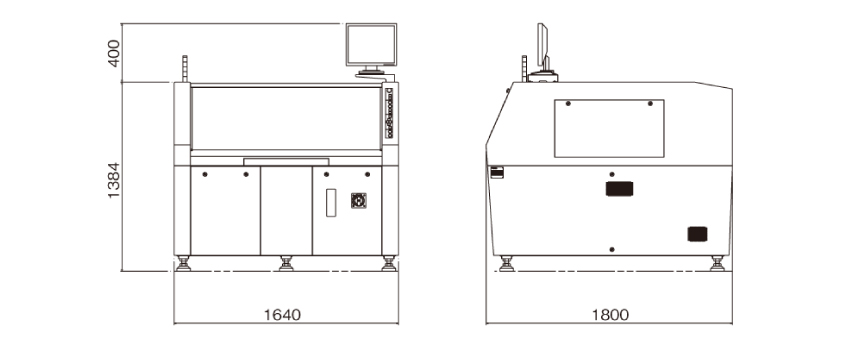

specifications
Model
T502
Type
T502-2
Application examples
Flex PCB, Various film materials etc.
Processing capability-Work sheet size
X150~510mm / Y150~510mm
Processing capability-Range*1
Range excluding an area of X11 x Y41mm from four corners of work sheet
Processing capability-Accuracy*2
±20μm
Processing capability-Speed*2 0.7 s/shot
0.7 s/shot
Punching head-No. of heads
2
Punching head-Thrust Power
Approx. 5,900N (600kgf)
Die module-Max. punching size
Max. punching size Small : X25 x Y40mm
Die module-Max. half-cutting size
Small : X25 x Y40mm
Die module-Built-in RFID
Provided
Work sheet transfer-Loading / Unloading
Manual
Image processing -Camera view
X4.8 x Y3.6mm (standard)
Image processing-Pattern detection
Pattern recognition via grayscale
Image processing-Illumination type
Transmission light, reflection light
Hardware-Interface
LAN,USB
Hardware-Display
17 inch LCD with touch panel
Software-OS
Windows7
Software-Production support function
Punching deviation measurement, NG punching, automatic creation of optimal punching path, automatic punching offset, punching deviation accuracy measurement, measurement result output, die shot count
Usage environment-Weight
Approx. 2,150kg
Usage environment-Power supply
1-phase, 180 to 240V AC, 50/60Hz, 3kVA
Usage environment-Dry air
0.5MPa
