F602 S2
PRODUCT DESCRIPTION

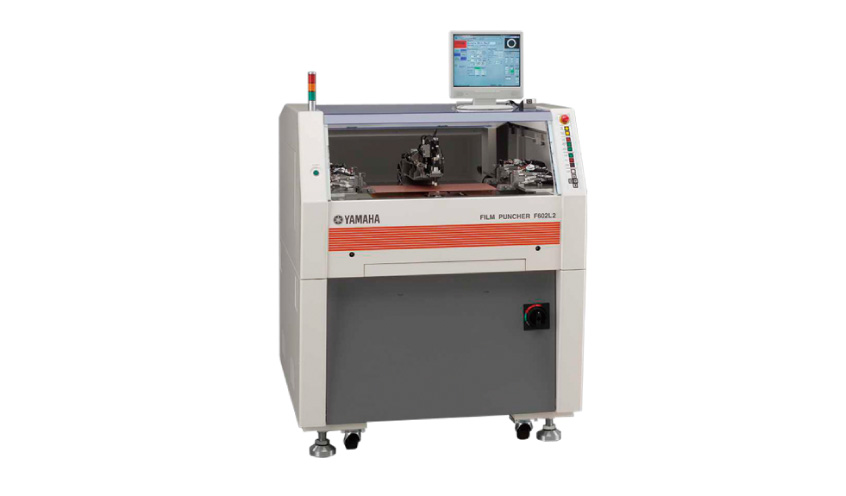

    Standard type of machine in which a work sheet is loaded/unloaded manually. With an electric punching head, high-speed (0.24 seconds/hole) and high-accuracy (±20 μm) punching is possible.

features
  • Max. work sheet sizx: X545 x Y365mm
  • Processing speed: 0.24 s/hole
  • Work sheet transfer: Loading:Manual Unloading:Manual
specifications
Model
F602S2
Type
F602S2
Application examples
Flex PCB, Various film materials
Processing capability-Work sheet size
X250~545mm / Y140~365mm
Processing capability-Range
X: Range excluding 12mm margin from left/right ends of workpiece Y: Entire workpiece
Processing capability-Speed*1
0.24 s/hole
Processing capability-Accuracy*1
±20μm
Punching head-Punching type
Electric punching head
Punching head-No. of heads
2
Work sheet transfer-Loading / Unloading
Manual
Image processing-Camera view
X4.8 x Y3.6mm (standard)
Image processing-Pattern detection
Pattern recognition via grayscale
Image processing-Illumination type
Transmission light, reflection light
Hardware-Interface
LAN・USB
Hardware-Display
17 inch LCD with touch panel
Software-OS
Windows7
Software-Production support function
Automatic creation of optimal punching path, automatic punching offset, punching deviation accuracy measurement, measurement result output

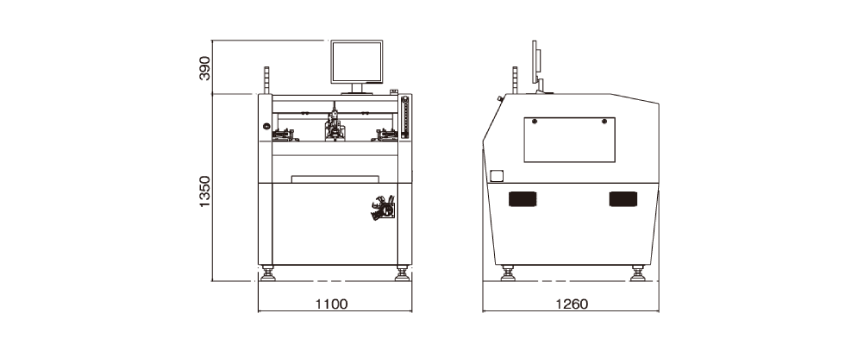

Usage environment-Weight
Approx. 1,020kg
Usage environment-Power supply
1-phase, 200 to 240V AC, 50/60Hz, 3kVA
Usage environmentDry air
0.5MPa
