Sawyer
PRODUCT DESCRIPTION

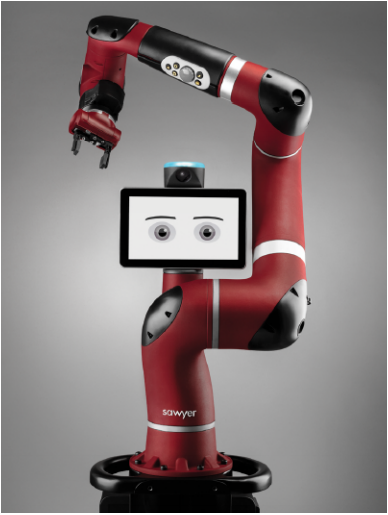

    Sawyer
    Smart, Collaborative Robot for Precision Tasks
    Meet Sawyer the industry's fastest-to-deploy collaborative robot, designed to give
    manufacturers the high performance and critical flexibility needed to automate a wide variety of tasks. Sawyer is a complete solution that includes Intera software, embedded vision, and the ClickSmart family of gripper kits - all backed by a company that's committed to our customers' success.

Download Brochure
features
  • CNC machining
  • PCB handling and ICT
  • Metal fabrication
  • Molding operations
  • Packaging
  • Line loading and unloading
  • Test and inspection
  • Intera software - best-in-class robot operating platform
  • Embedded Cognex camera
  • Robot Positioning System - dynamic re-orientation using embedded camera
  • ClickSmart family of gripper kits
  • Rethink's global support team
specifications
Max Reach
1260 mm
Gantry Reach
900 mm
Task Repeatability
±0.1 mm
Typical Tool Speed
1.5 m/s
Degrees of Freedom
7
Operating Temperature
5°C - 40°C, 80% Relative Humidity
Joint Ranges
JO - J3 = 350 degrees, J4 - J5 = 340 degrees, J6 = 540 degrees
Payload
4kg
Power Requirements
100-240 VAC, 47-63 Hz. 4A Max
I/O Ports (Controller)
8 digital in / 8 digital out
Communication
Modbus TCP, TCP/IP
IP Class
54
Collaborative Standards
ISO 10218-1:2011
I/O End of Arm
4 digital in / 2 digital out / 2 analog in / 24 VDC 2A, ClickSmart Plate Required
