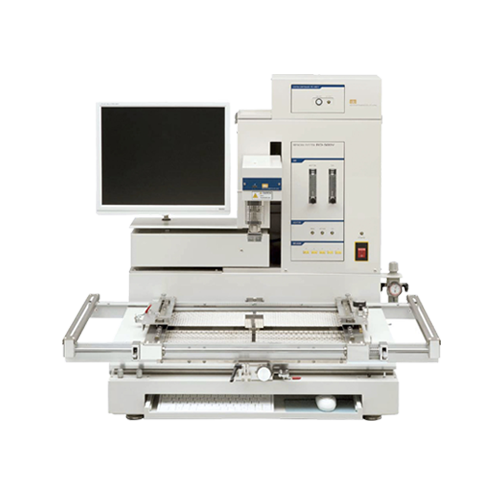

RD-500V (L Size)

PRODUCT DESCRIPTION

All-IN-ONE Advanced Technology SMT Rework Station
Compatible for all kind of rework for different type of SMT components

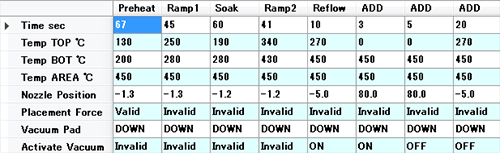

Multi-functional profiles can be handled at will
Wide support to industrial large-scale and small-scale circuit boards, including 01005 components
Contact-less cleaning
Control of the Z-axis

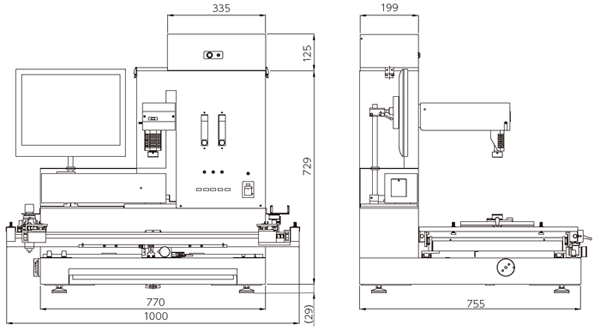

770W×755D×854H（Without foot）

Download Brochure

Send Enquiry

features

Multi-functional profiles can be handled at will Wide support to industrial large-scale and small-scale circuit boards, including 01005 components
Wide support to industrial large-scale and small-scale circuit boards, including 01005 components
Safety Features: RD-500V has a unique safety feature, it will run safely and simple.

specifications

Maximum board size

500mm x 700mm

Device size range

01005(0402mm) or more *Custom nozzles are available

Placement Accuracy

±0.015mm

Electrical Requirement

AC200-240V 5.6kW

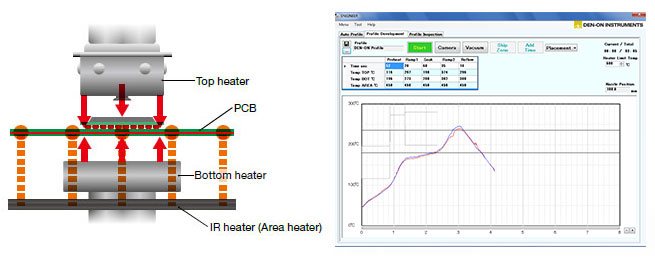

Top Hot Air Heater

1000W

Bottom Hot Air Heater

1000W

Area Heater

600W x 6IR 3600W

Temp setting range

0 to 650˚C

Operating System

Dedicated controller(PC-500V)

Monitor

19 inches LCD

External dimensions

770W x 755D x 854H

Overall Weight

100kg

Air Requirements

0.7MPa(110L/min)
