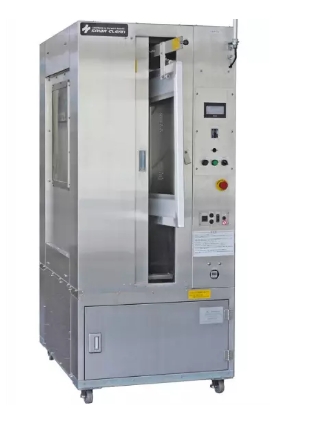

SC-BM500 series
PRODUCT DESCRIPTION

    Ultrasonic waves combined to spray cleaning enable to clean fine apertures

    Wide size compatibility. (320mm to 750mm stencils)

    Can remove various materials such as solder paste but also ink paste and other adhesive.

Download Brochure
features
  • Automatic operation from cleaning to drying!
  • Easy setting for a stencil size of 320㎜×320㎜~ 1000×740㎜
  • Perfect cleaning on stencil frames and corners!
  • With external output for an optional Squeegee cleaner
  • Standard equipment of drying system by compressed air
  • Easy operation by touch panel.
  • State of the machine is visible by large observation window
  • Double cleaning—ultrasonic and spray.
specifications
Product No.
SC-BM500E
Outside dimention and Weight
W: 780 x D: 1,100 x H: 1,847 mm *1 Approx. 250 kg
Power
AC 110, 120, 220, 240 V 50/60 Hz 550 VA
Ultrasonic
40 kHz, 300 W
Applicable stencil size
L: 320 x W: 320 mm to L: 1,000 x W: 700 mm
Air
0.4 MPa, 600 NL/min
Exhaust duct
Wind speed 5 m/sec Diameter 123 mm
Performance
Clean Approx. 1 min *2 Dry Approx. 14 min *2
