T901

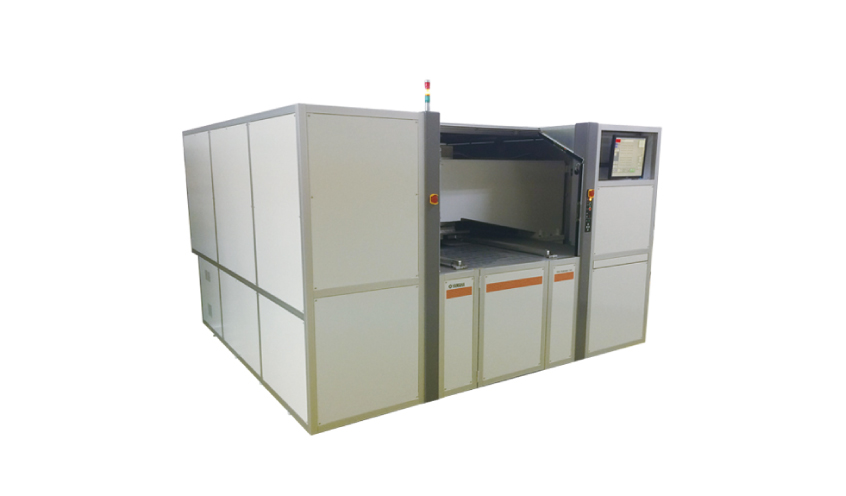

PRODUCT DESCRIPTION
A high-thrust type of machine in which a work sheet is loaded/unloaded manually. A large sheet up to 900 x 900 mm is supported. Up to 7 t thrust trimming at high speed (1.50 seconds/hole) with high accuracy (±20 μm) is possible.
features
- Max. work sheet size:X900 x Y900mm
- Work sheet transfer:Loading：Manual Unloading：Manual
- Thrust power:Approx. 7t
specifications
Model
T901
Type
T901-HN
Application examples
Flex PCB, Various film materials etc.
Processing capability-Work sheet size
X340~900mm / Y340~900mm
Processing capability-Range*1
Range excluding an area of X15 x Y37mm from four corners of work sheet
Processing capability-Accuracy*2
±30μm
Processing capability-Speed*2
1.5 s/shot
Punching head-No. of heads
1
Punching head-Thrust Power Approx. 68,600N (7,000kgf)
Approx. 68,600N (7,000kgf)
Die module-Max. punching size
X150mm x Y150mm
Die module-Max. half-cutting size
X295mm x Y207mm
Die module-Built-in RFID
Provided
Work sheet transfer-Loading / Unloading
Manual
Image processing -Camera view
X4.8 x Y3.6mm (standard)
Image processing -Pattern detection
Pattern recognition via grayscale
Image processing -Illumination type Transmission light, reflection light
Transmission light, reflection light
Hardware-Interface
LAN,USB
Hardware-Display
17 inch LCD with touch panel
Software-OS
Windows7
Software-Production support function
Punching deviation measurement, NG punching, automatic creation of optimal punching path, automatic punching offset, punching deviation accuracy measurement, measurement result output, die shot count

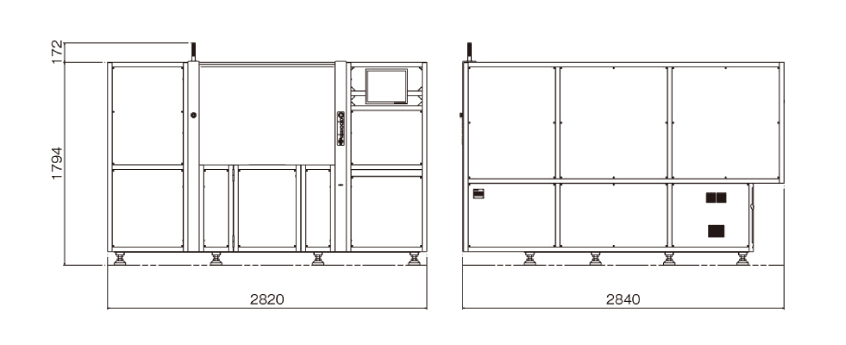

Usage environment-Weight
Approx. 5,000kg
Usage environment-Power supply
3-phase, 180 to 240V AC, 50/60Hz, 5kVA
Usage environment-Dry air
0.5MPa
