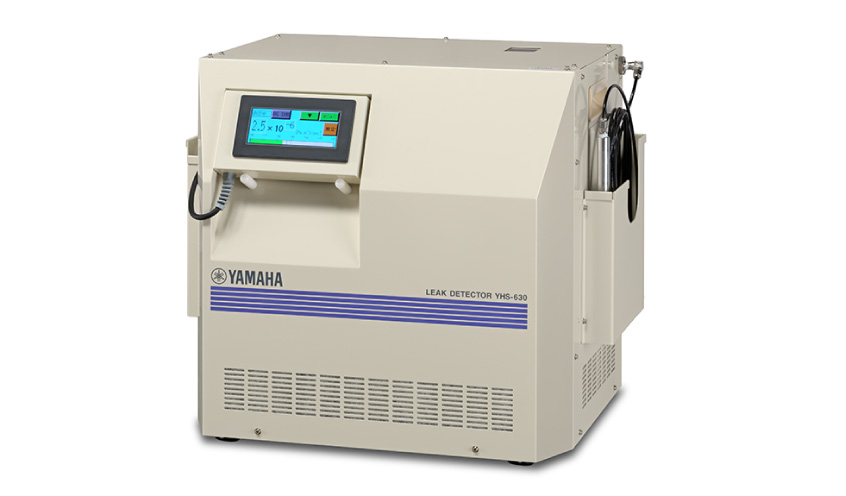

YHS-630
PRODUCT DESCRIPTION

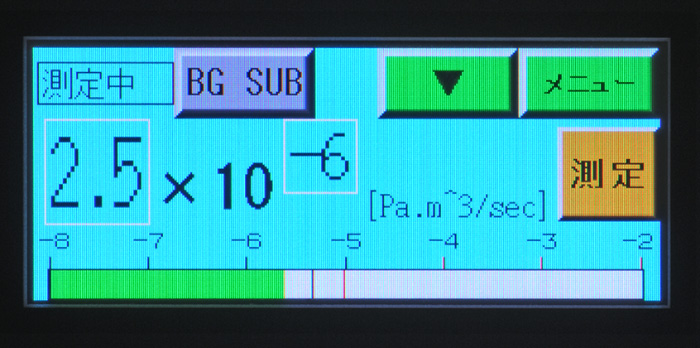

- The touch panel easy to understand at a glance and easy to operate

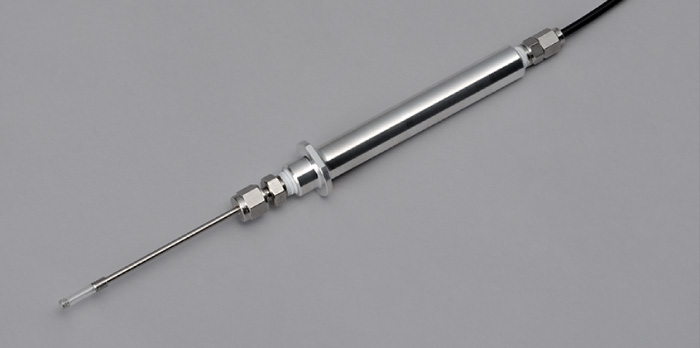

- Sniffer probe to be in direct touch with a workpiece for identifying the leak location
By putting its probe in direct contact with the workpiece, this detector can identify the leak location.
With the sniffer probe in direct contact with a workpiece, the sensor detects a leak. The leak location is identified. Since installation is easy, the cost of installation is low.
features
- Detection method : Sniffer method
- Detectable leak rate : 1x10-6Pa～1×10--2Pa･m3/s
- Feature : Inline support possible
specifications
Leak detector
YHS-600
Judgment leak rate
1×10-8～1×10-2Pa･m3/sec
Minimum detection leak rate
1×10-8Pa･m3/sec
Startup time
3 minutes
Number of analysis tube filaments
Double Filaments (2)
Analysis tube seal
Flat Gasket
Calibration
External
Temperature
10～40℃
Humidity
90% or less
Power supply
AC 100V±10％ Single phase 50 / 60Hz 10A

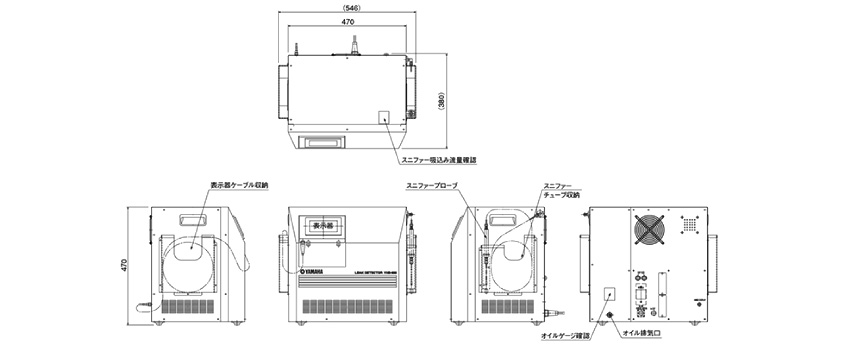

Dimensions
W546mm x D378mm x H470mm
Weight
46kg
