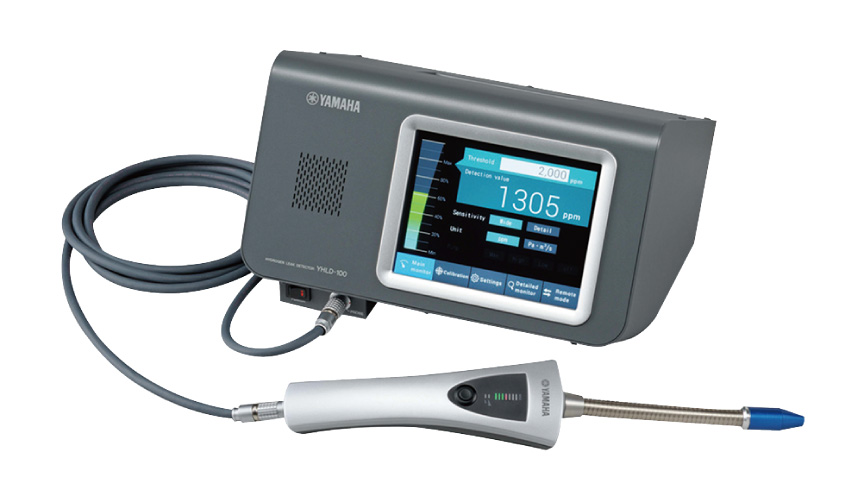

YHLD-100

PRODUCT DESCRIPTION

Leak detected without fail and the leak location identified just with one unit

With its wide dynamic range, concentrations of 0.5 ppm to 13,000 ppm are measured just with one unit. For a concentration of 13,000 ppm or more, a warning is generated to stop the measurement process. The response speed is 0.7 seconds or less. Measurement is performed quickly, safely, and widely.

Yamaha's proprietary MEMS hydrogen sensor installed
With a large color LCD touch panel installed and through interactive mode selection and setting functionality, easy operation realized
Return after measurement also made quick through high-speed response in one second or less
At high hydrogen concentrations, no occurrence of linearity degradation or output saturation. Even at 2,000 ppm or more, an output made without saturation.
With the inline sensor head, inline automatic inspection supported

Send Enquiry

features

Detected concentration : 0.5～13,000ppm
Detection method : Sniffer method
Feature : Inline support possible

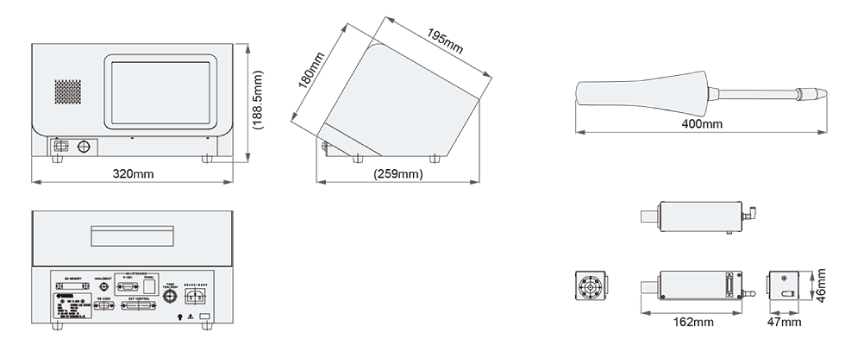

specifications

Type

YHLD-100

Sensor

MEMS

Detection gas

Hydrogen (Recommended tracer gas ratio: 5% / hydrogen + 95% nitrogen)

Detective gas concentration

Within 1 sec (10~90% at 10000ppm)

Response time

1秒以内（1,000ppm ; step応答80% : 10～90％）

Controller (main body) : Display

7.5" color LCD touch panel

Controller (main body) : Detail

Measured concentration (numerical value and bar graph)

Controller (main body) : Unit

ppm, Pa・m³/sec

Controller (main body) : Level selection

Judgment value, setting value

Controller (main body) : Language

English / Japanese

Controller (main body) : Detailed function

Line chart (time vs measurement value)

Controller (main body) : Adjustment function

Re-zero, "Wake-up" (means recover for sensor)

Controller (main body) : Speaker

Buzzer for alert & measuring for value (concentration & leakage)

Controller (main body) : SD card

Factory tuned sensor parameters are stored on the SD card

Probe : Hydrogen status display on probe

9 stage multi-colored LED status indicator on probe handle

Probe : Detail

Handy section measured value display and status monitor

Probe : Adjustment function

Re-zero

Power voltage, power supply

AC100-240V, 50/60Hz, 9W

Weight

Controller (main body) 6.3kg, probe 0.3kg, Case 0.3kg

Usage environment

Temp : 5 - 50℃, Humidity : under 80% (Non-condensing)

Interface : Output I/O

Dsub 25pin (8/8 point, PC insulation, 12-24V)

Interface : Measurement

BNC connector (analog output; DC1-5V)

Interface : Output

RS232C (character, value)
