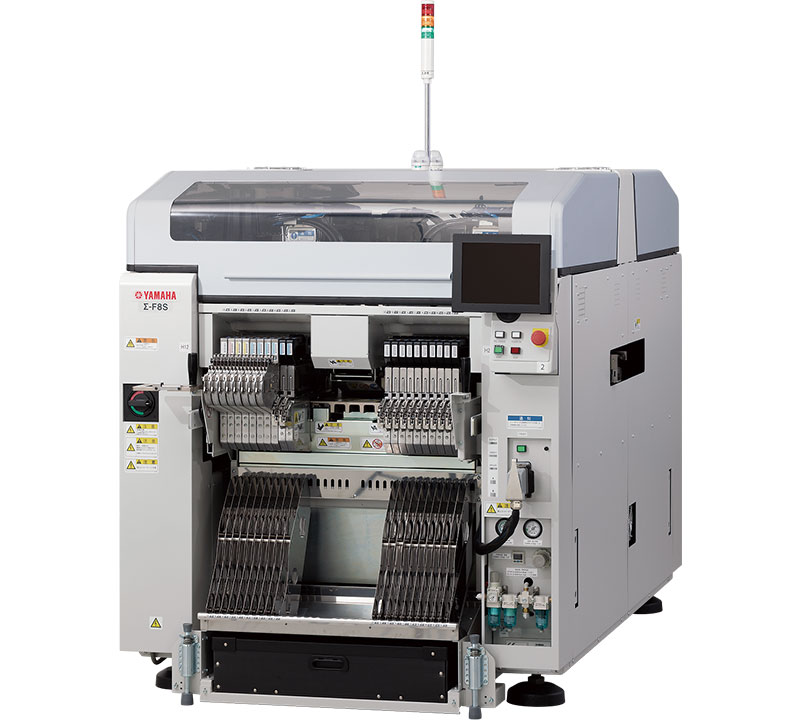

Σ-F8S
PRODUCT DESCRIPTION
    • The "1-head solution" rotary head provides. Speed, versatility and high operating ratio.
    • Fastest speed in its class! Produces 150,000 CPH with 4-beam & 4-head
    • Direct drive head gives high-speed & high-accuracy
    • The Super Loading Feeder totally innovates components supply tasks!
Download Brochure
features
  • Fastest speed in its class! Produces 150,000 CPH with 4-beam & 4-head
  • Even on rotary heads, Yamaha gives the 1-head solution!
  • The Super Loading Feeder totally innovates components supply tasks!(Super Loading Feeder)
specifications
Applicable PCB
Single lane : L330 x W250 to L50 x W50mm / (Option : L381 x W510 to L50 x W50mm) / Dual lane : L330 x W250 to L50 x W50mm
Head/Applicable components
High-speed head : 0201mm CHIP to 4.3 x 3.4mm, Height 2.0mm or less / High-speed multi-purpose head : 03015mm CHIP to 33mm square, Height 12.7mm or less
Mounting capability
High-speed head x 4 specs : 150,000CPH (Dual lane) / 136,000CPH (Single lane)
Mounting accuracy (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
High-speed head : 0201mm/03015mm : ±25μm (3σ) (140,000CPH) / 0402mm/0603mm : ±36μm (3σ) (150,000CPH)
Number of component types
Max.80 types (conversion for 8mm tape feeder)
Power supply
3-Phase AC200V ±10% 50/60Hz
Air supply source
0.45 to 0.69MPa (4.6 to 7kgf/cm2)
External dimension

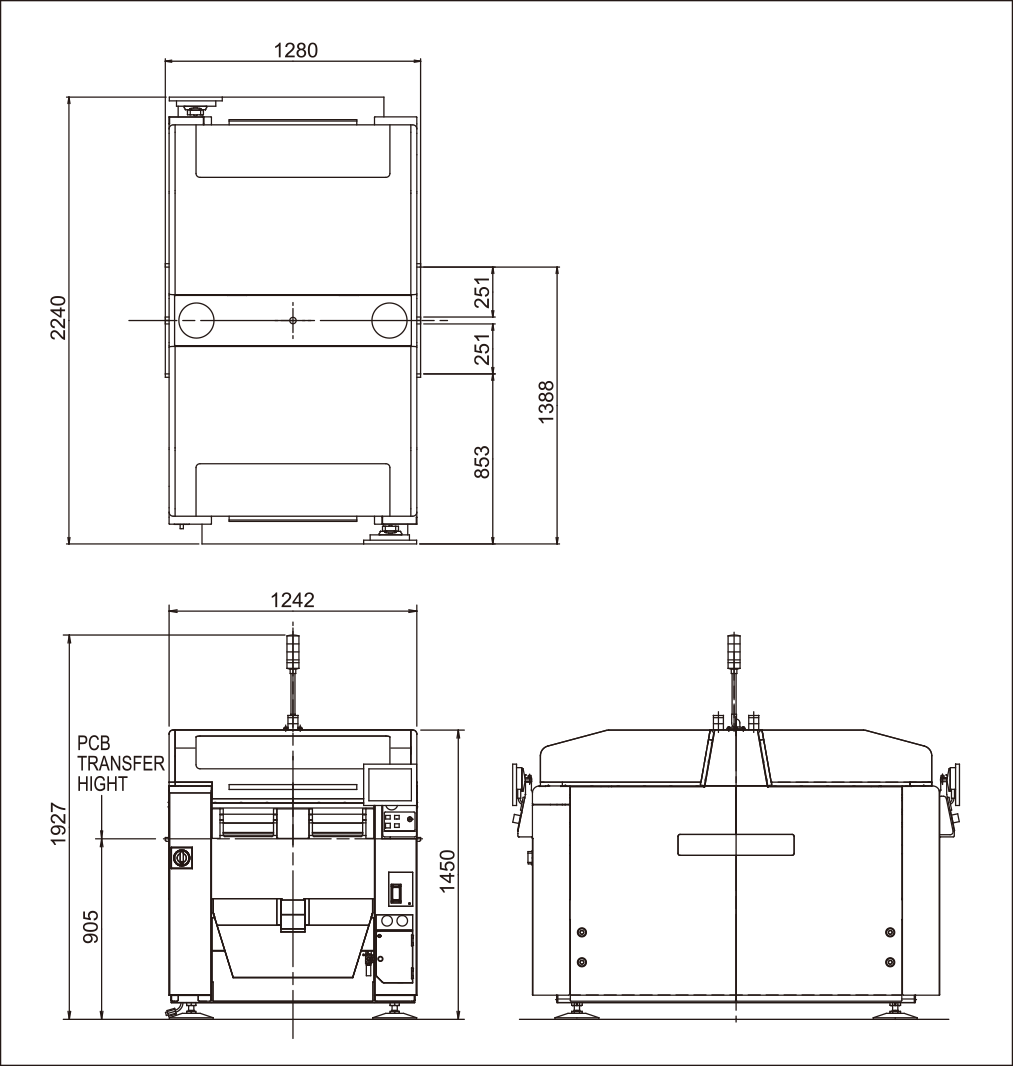

L 1,280 x W 2,240 x H 1,450mm (excluding projections)
Weight
Approx. 1,940kg
