F602 S2-ald
PRODUCT DESCRIPTION

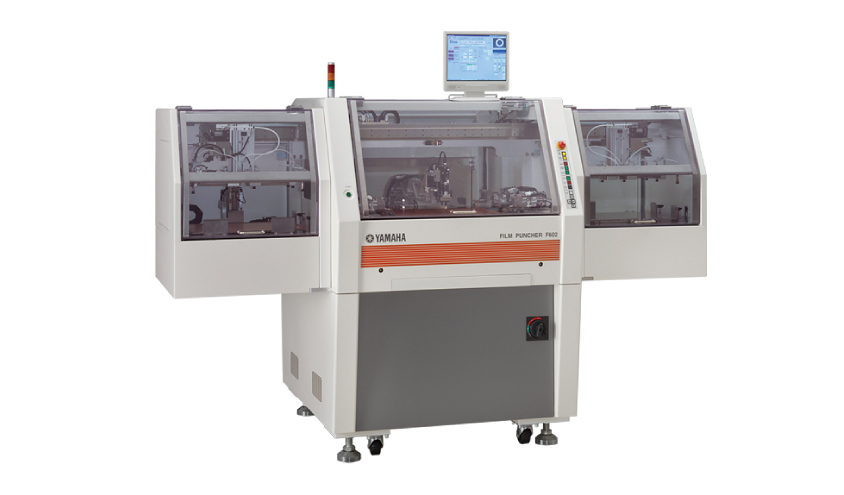

A full-automatic type of machine in which a work sheet is loaded/unloaded automatically. With an electric punching head, high-speed (0.24 seconds/hole) and high-accuracy (±20 μm) punching is possible.
features
- Max. work sheet size:X500 x Y365mm
- Processing speed: 0.24 s/hole
- Work sheet transfer: Loading：Automatic Unloading：Automatic
specifications
Model
F602S2-ald
Type
F602S2-ald
Application examples
Flex PCB, Various film materials
Processing capability-Work sheet size
X250～500mm / Y140～365mm
Processing capability-Range
X: Range excluding 9.5mm margin from left/right ends of workpiece
Y: Entire workpiece
Processing capability-Speed*1
0.24 s/hole
Processing capability-Accuracy*1
±20μm
Punching head-Punching type
Electric punching head
Punching head-No. of heads
2
Work sheet transfer-Loading / Unloading
Automatic
Image processing-Camera view
X6.4 x Y4.8mm (standard)
Image processing-Pattern detection
Pattern recognition via grayscale
Image processing-Illumination type
Transmission light, reflection light
Hardware-Interface
LAN,USB
Hardware-Display
17 inch LCD with touch panel
Software-OS
Windows7
Software-Production support function
Automatic creation of optimal punching path, automatic punching offset, punching deviation accuracy measurement, measurement result output
Usage environment-Weight
Approx. 1,300kg
Usage environment-Power supply
1-phase, 200 to 240V AC, 50/60Hz, 3kVA
Usage environment-Dry air
0.5MPa
