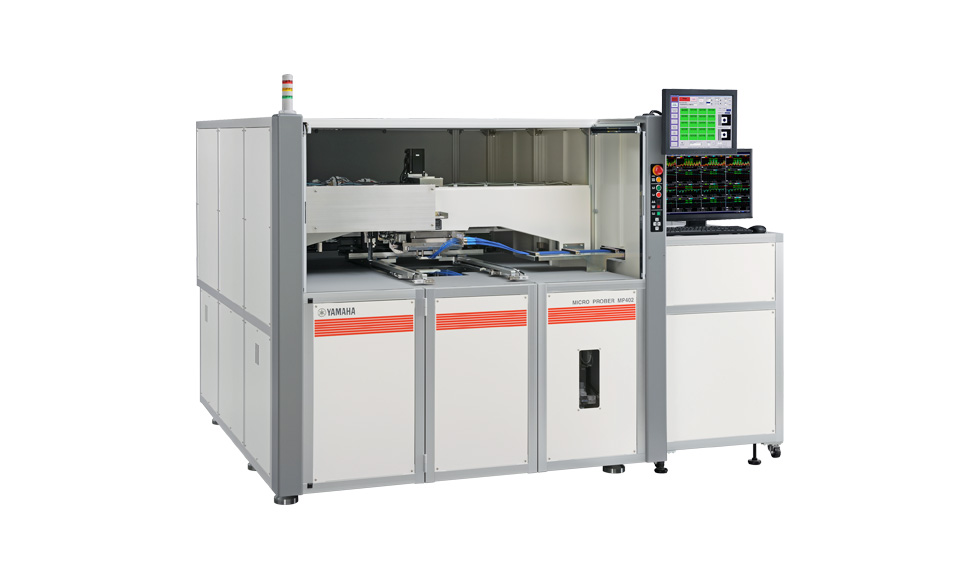

MP502/MP502-A
PRODUCT DESCRIPTION
Enables the measurement of frequency characteristics with contact positioning accuracy of +/- 20 μm. Also supports automated loading and unloading.
features
- Max. work sheet size:(X)510 x (Y)610mm
- Max. test fixture size:(X)200 x (Y)200mm
- Work sheet transfer:Loading:Manual Unloading:Manual（MP502-A Loading:Automatic Unloading：Automatic）
specifications
Model
MP502/MP502-A
Application examples
Rigid PCBs, Flexible PCBs, Rigid-flex PCBs etc., with high speed transmission circuits
Test capability-Work sheet size
X150～510mm / Y150～610mm
Test capability-Max. test fixture size
X200 x Y200mm
Test capability-Positioning accuracy*1
±20μm
Work sheet transfer-Loading / Unloading
Manual/Automatic

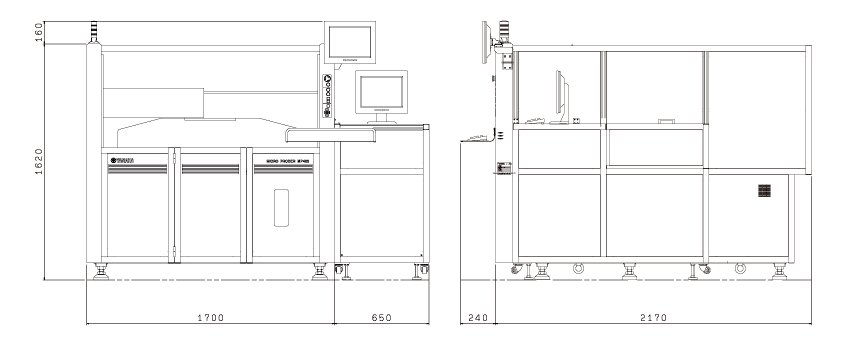

Usage environment-Weight
Approx. 2,500kg / Approx. 3,000kg
Usage environment-Measurement item*2
Insertion loss, Return loss, VSWR, isolation, TDR etc.
