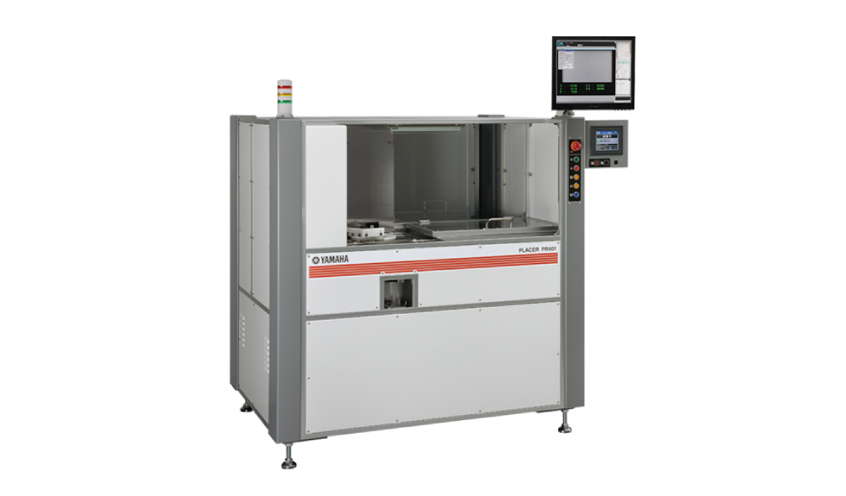

PR401
PRODUCT DESCRIPTION
A machine for arranging small-sized pieces such as stiffeners onto a tray. Chip boards of 3 to 15 mm are arranged at high speed automatically.
features
- Application examples:Small-sized stiffener and others
- Max. work piece size:X15mm x Y15mm
- Arranging speed:0.33 s/piece
- Feeding method:Arranged piece: Manual Tray: Manual
specifications
Model
PR401
Type
PR401-T
Application examples
Various types of stiffener
Arranged piece-Piece size
X3~15mm / Y3~15mm
Arranged piece-Piece thickness
0.05mm~0.5mm
Arranging capacity-Accuracy *1
±200μm
Arranging capacity-Speed *1
0.33 s/piece
Arrangement table-Material
Glass epoxy resin
Arrangement table-Size
X254mm / Y427mm
Piece-Feed
Manual
Tray-Loading / Unloading
Manual
Image processing -Camera view
X50mm x Y50mm (standard)
Image processing -Pattern detection
Pattern recognition via grayscale
Image processing -Illumination type
Transmission light, reflection light
Hardware-Interface
LAN,USB
Hardware-Display
17 inch LCD with touch panel
Software-OS
Windows7
Software-Production support function
Front/rear determination, angle correction (180º)
Usage environment-Weight
Approx. 1,000kg
Usage environment-Power supply
3-phase, 180 to 220V AC, 50/60Hz, 1kVA
Usage environment-Dry air
0.5MPa
