PT601-SR

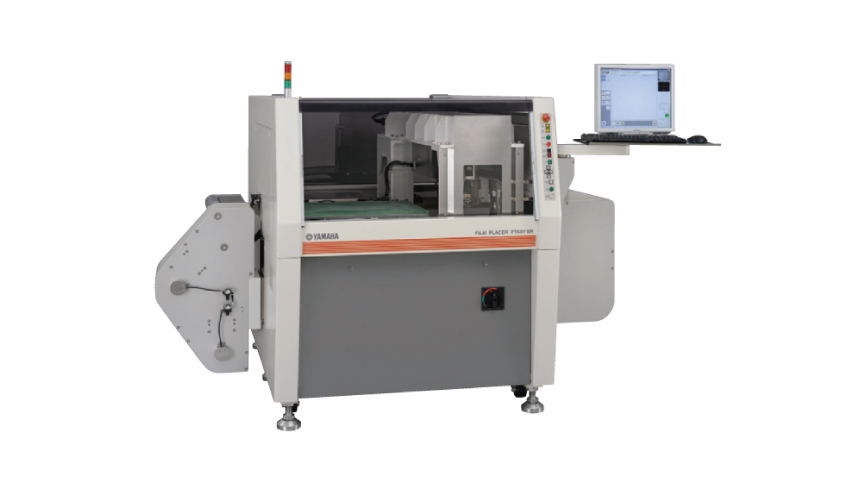

PRODUCT DESCRIPTION
A machine for attaching EMI shielding film onto flexible PCBs. With an accuracy of ±50 μm, roll film is automatically punched and attached.
features
- Application examples:Attaching side: EMI shielding film /Attached side : Flex PCB
- Max. target work sheet size:X610mm x Y510mm
- Attachment speed:1.5 s/piece
- Work sheet transfer:Attachment target : Manual, Attaching film : Roll
specifications
Model
PT601-SR
Type
PT601-SR
Application examples
Flex PCB, Rigid-Flex PCB, etc.
Attachment target work sheet-Max. work sheet thickness
0.5mm
Attachment target work sheet-Max. work sheet size
X610mm x Y510mm
Attachment target work sheet-Securing method
Rear-surface suction
Attachment film-Attachment film
EMI shielding film, stiffener, cover lay film, etc.
Attachment film-Max. film thickness
200μm
Attachment filmRoll width
100~250mm
Attachment capability -Accuracy *1
±50μm
Attachment capability -Speed *1
1.5 s/piece
Attachment head-No. of heads
1
Attachment head-Built-in RFID
Provided
Attachment head-Heater tip heating face
φ2.5mm (standard)
Attachment head-Heater temperature
0～300℃
Attachment head-No. of heaters per head
4
Attachment head-Punching range
X120mm x Y160mm
Work sheet transfer-Loading / Unloading
Attachment target : Manual, Attaching film : Roll
Image processing-Camera view
X4.8 x Y3.6mm (standard)
Image processing -Pattern detection
Pattern recognition via grayscale
Image processing -Illumination type
Transmission light, reflection light
Hardware-Interface
LAN,USB
Hardware-Display
17 inch LCD with touch panel
Software-OS
Windows7
Software-Production support function
Heatert emperature sensor, attachment accuracy measurement

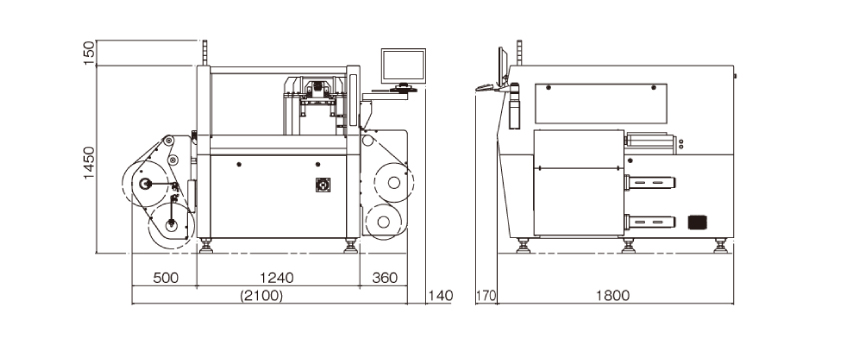

Usage environment-Weight
Approx. 2,100kg
Usage environment-Power supply
3-phase, 180 to 240V AC, 50/60Hz, 6kVA
Usage environment-Dry air
0.5MPa
