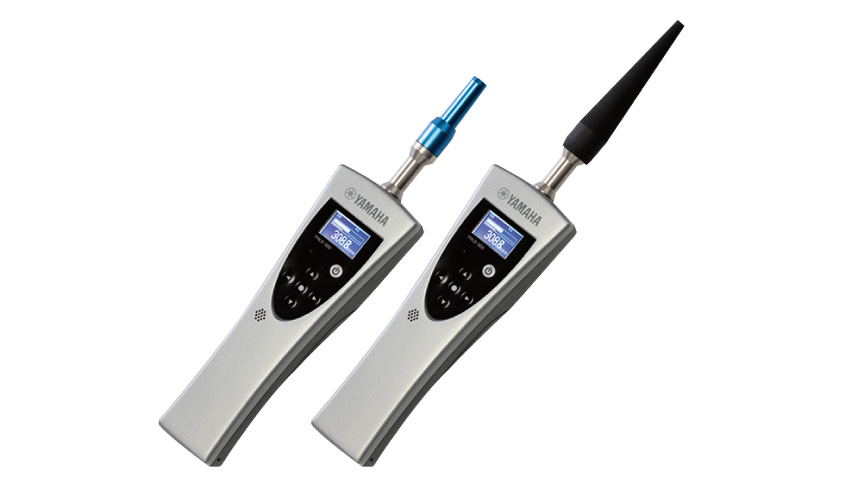

YHLD-300
PRODUCT DESCRIPTION
- Yamaha's proprietary MEMS hydrogen sensor installed
- Measured value quickly displayed on the display at hand by the one-touch peak hold function
- Return after measurement also made quick through high-speed response in one second or less
- Power supply from dry batteries or from outside possible
A portable and handy, small lightweight type, detecting any location freely
This detector is a cordless version inheriting as-is the function of YHLD-100 that detects concentrations in the range 0.5 ppm to 13,000 ppm. You can perform detection freely while checking with the display at hand. The energy saving function using the acceleration sensor is provided.
features
- Detected concentration : 0.5~13,000ppm
- Detection method : Sniffer method
specifications
Type
YHLD-300
Sensor
Catalytic combustion type MEMS sensor
Detection gas
Hydrogen (Recommended tracer gas ratio: 5% / Hydrogen 95% nitrogen)
Detective gas concentration
0.5~13,000ppm (1.3%)
Response time
Within 1 sec.
Display : Main panel
LCD display (monochrome, back light)
Display : Detail
Measured concentration (numerical value and bar graph)
Display : Unit
ppm
Language
English
Mode select
Holding peak, setting threshold
Adjustment
Re-zero, "Wake up" (means recover for sensor)
Gas calibration
Concentration calibration with standard gas (10,000ppm, 100ppm, 10ppm)
Alarm
Screen display of measured concentration, buzzer sound, LED
Output
Analog: DC1~5V (Horn jack 2 polesφ2.5)
RS-232C(miniUSB）
Power voltage, power supply
Size AA battery (4) or with external power supply DC5V (miniUSB or microUSB)

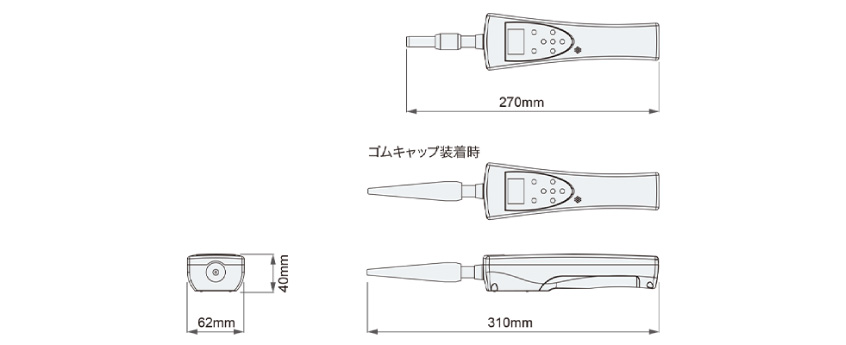

Weight
330g (Included batteries)
Usage environment
Temp 5~50°C, Humidity under 80% (Non-condensing), atmospheric pressure
