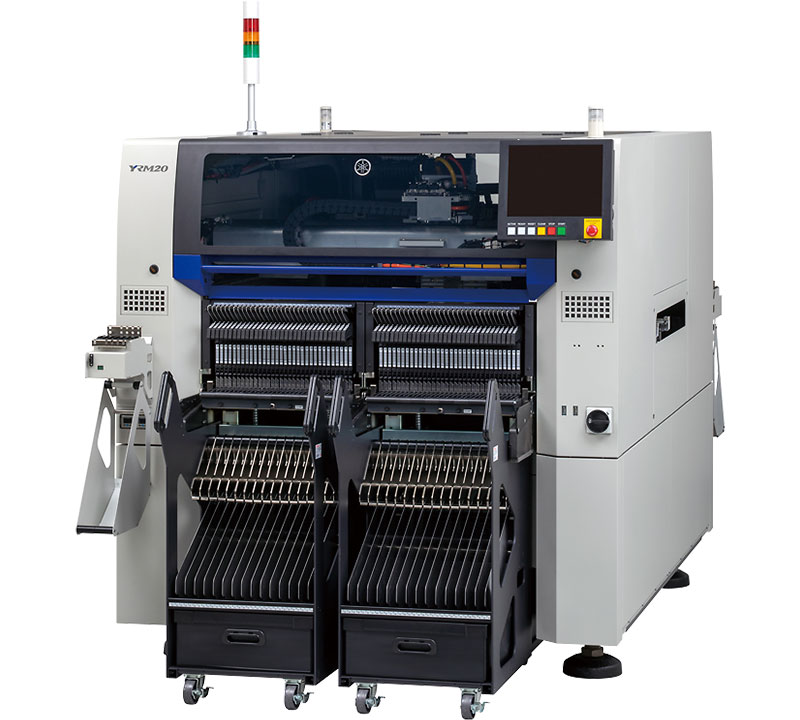

YRM20
PRODUCT DESCRIPTION
- Fusion with Σ technology achieves overwhelming productivity
- Broad-ranging production capability thanks to the 1 head solution
- Standard features that maintain component mounting quality at a peak level!
- Ensures high-efficiency production with a full range of functions!
features
- 2-beams – 2-head with highest speed level in its class 115,000CPH
- Needs no head replacement! 0201mm to large-size components
- Overdrive motion
- Dual-stage conveyor
specifications
Super high-speed rotary RM head:Nozzles (per 1 head unit)
18
High-speed general-purpose in-line HM head:Nozzles (per 1 head unit)
10
Odd-shaped components in-line FM (flexible-multi) head:Nozzles (per 1 head unit)
5
Super high-speed rotary RM head:Applicable components
0201mm to W12 x L12mm,
Height 6.5mm or less
High-speed general-purpose in-line HM head:Applicable components
0201mm to W55 x L100mm,
Height 15mm or less
Odd-shaped components in-line FM (flexible-multi) head:Applicable components
03015mm to W55 x L100mm,
Height 30mm or less
Super high-speed rotary RM head:Mounting capability (high-production mode)
115,000CPH
(under optimum conditions)
High-speed general-purpose in-line HM head:Mounting capability (high-production mode)
98,000CPH
(under optimum conditions)
Odd-shaped components in-line FM (flexible-multi) head:Mounting capability (high-production mode)
35,000CPH
(under optimum conditions)
Super high-speed rotary RM head:Mounting accuracy (high-accuracy mode)
±0.025mm Cpk≧1.0 (under optimum conditions)
Odd-shaped components in-line FM (flexible-multi) head:Mounting accuracy (high-accuracy mode)
±0.035mm Cpk≧1.0
(under optimum conditions)
Number of component types
Feeder carriage exchange : Max. 128 types = 32 feeders x 4 (conversion for 8mm tape feeder)
Fixed plate : Max. 128 types (conversion for 8mm tape feeder)
Trays: 60 types (maximum when equipped with eATS30 x 2)
PCB dimensions
Dual-stage specifications
1-PCB conveyance : L50 x W50mm to L810 x W510mm
2-PCB conveyance : L50 x W50mm to L810 x W510mm
Power supply
3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source
0.45MPa or more, in clean, dry state
External dimension (excluding projections)
L1,374 x W1,948 x H1,445mm
Weight
Approx. 2,250kg (Main unit only)
