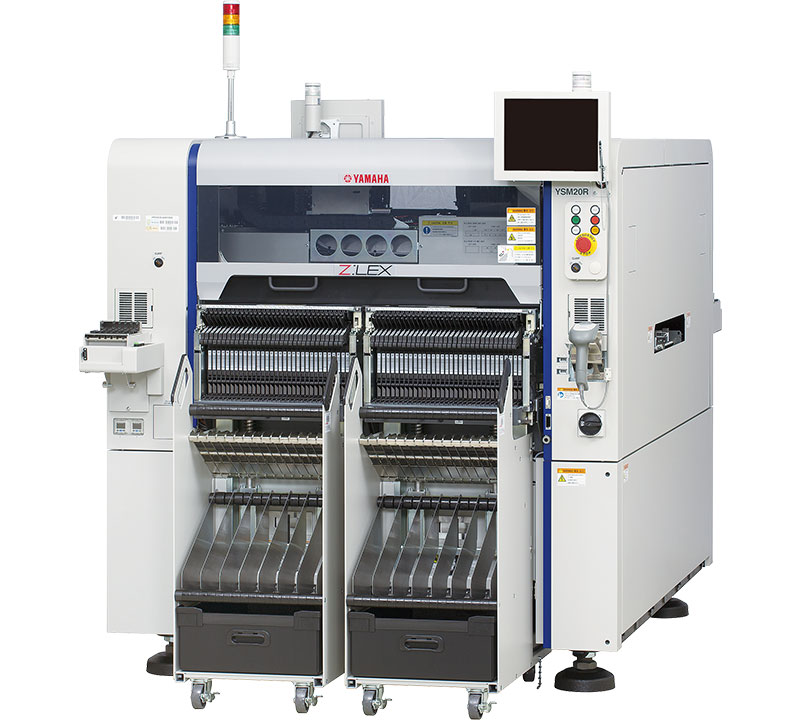

YSM20R
PRODUCT DESCRIPTION
    • World’s fastest mounting speed in its class; 5% faster than the YSM20.
      Featuring a new wide-scan camera with improved component adaptability.
    • Optional features improving line operating rate without stopping the machine
Download Brochure
features
  • Superb mounting performance 95,000 CPH (under optimum conditions as defined by Yamaha Motor)
  • Needs no head replacement! 0201mm to large-size components
  • Conveyors available in freely configurable variations
  • Realize non-stop components supply
specifications
Applicable PCB
Single lane / L810 x W490 to L50 x W50 / Dual stage Note: For X-axis 2-beam option only / 1PCB conveyance: L810 x W490 to L50 x W50 / 2PCB conveyance: L380 x W490 to L50 x W50
Head / Applicable components
High-Speed Multi (HM) Head * / 0201mm to W55 x L100mm, Height 15mm or less / Odd-shaped components (FM: Flexible Multi) head: / 03015mm to W55 x L100mm, Height 28mm or less
Mounting capability (under optimum conditions as defined by Yamaha Motor)
X axis 2-beam: High-speed multi-purpose (HM: High-speed Multi) head x 2 95,000CPH
Mounting accuracy
±0.035mm (±0.025mm) Cpk≧1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
Number of component Types
Fixed plate: Max. 140 types (conversion for 8mm tape feeder) Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder) Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10)
Power supply
3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply sourc
0.45MPa or more, in clean, dry state
External dimension (excluding projections)
L 1,374 x W 1,857 x H1,445mm (Main unit only)
Weight
Approx. 2,050kg (Main unit only)
