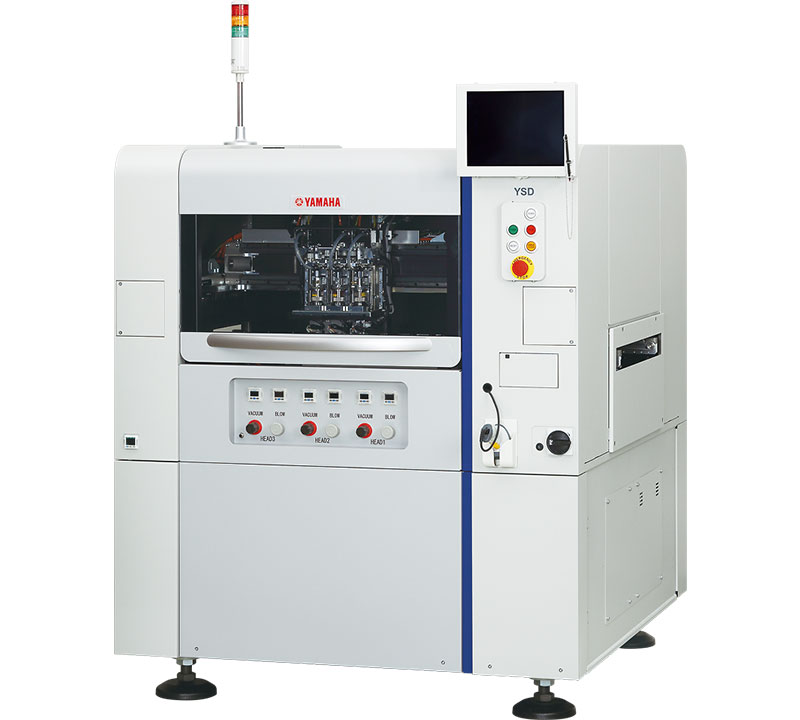

YSD
PRODUCT DESCRIPTION
- High-speed, High-accuracy and Stable Dispensing for High-density Mounting
- Non-contact Dispensing and Line Dispensing, Support for Wide Range Applications
- Support for Yamaha SMT Software and Production Line Network, Delivers Highly Efficient Production
- Dispensing tact 0.07sec/shot
- Dispensing accuracy +/-0.05mm (μ＋3σ)
features
- Dispensing cycle time 0.07sec/shot
- High-accuracy and Stable Dispensing
- Mounter-linked operation
- IT Option
specifications
Applicable PCB
L510 x W460mm～L50 x W50mm
* Please contact us for board size that exceeds the above
Dispensing tact
0.07sec/shot (under optimum condition)
Power supply
3-Phase AC 200/208/220/240/380/400/416V +/-10%
Air supply source
0.45MPa or more

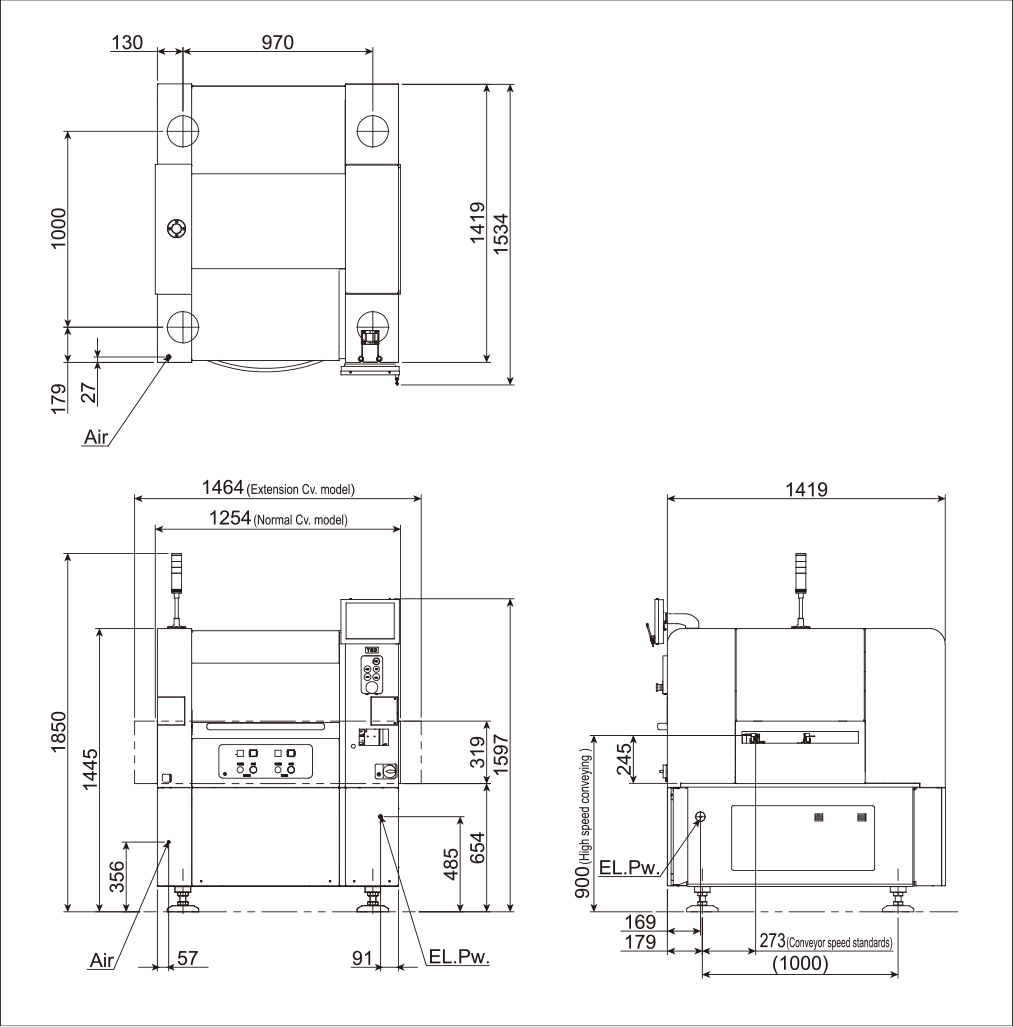

External dimension
L1,254 x W1,419 x H1,445mm (excluding projections)
Weight
Approx. 1,250kg
