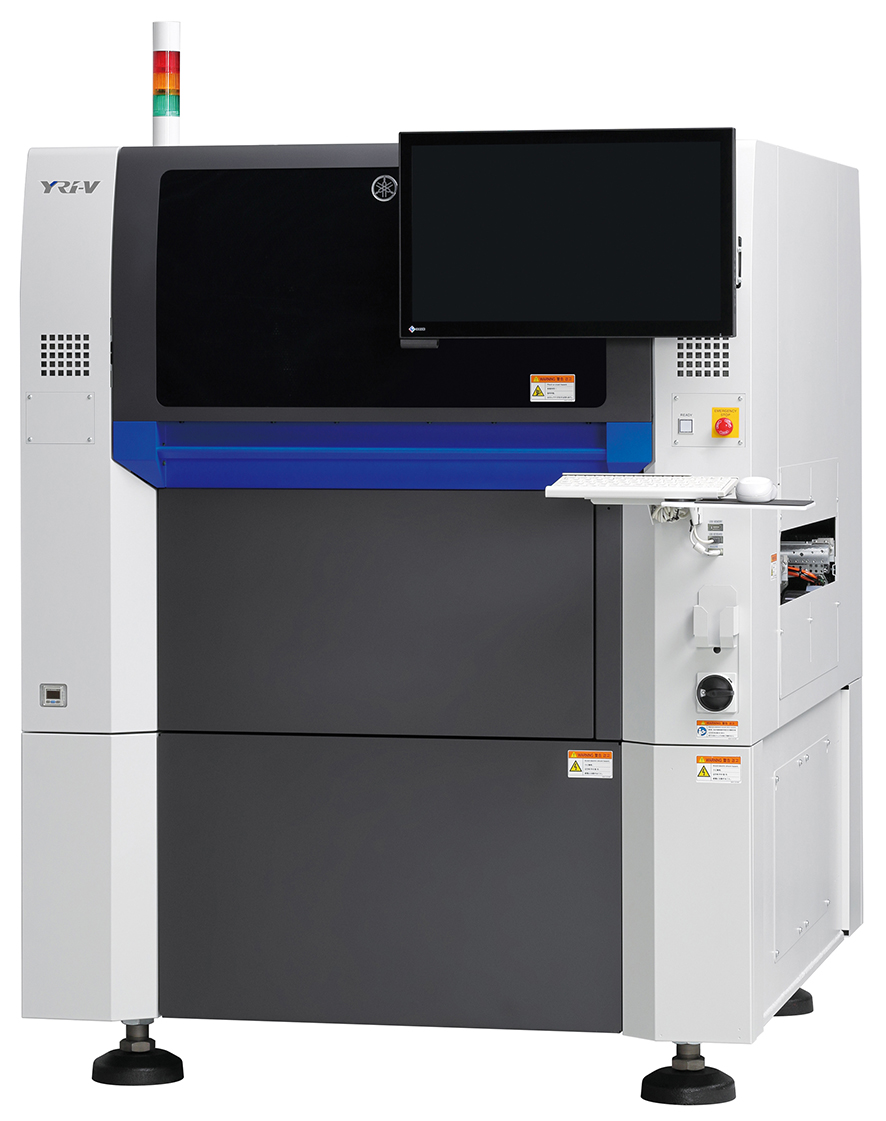

YRi-V
PRODUCT DESCRIPTION
- Super high-speed 3D inspections
56.8cm²/sec (under optimum conditions) - Super high-accuracy 3D inspections
8-way projector - 4-way oblique imaging inspections
20Megapixels 4-angle camera - Device inspections
Super high-resolution 5μm/coaxial lighting
features
- Super high-speed and high-accuracy inspections
- Capable of inspections in the device sector
- Enhanced PCB conveyance capability
- Latest software solution using AI
specifications
Applicable PCB
L610 × W610mm (max.) to L50 × W50mm (min.) (single lane)
L750mm long length PCBs available (option)
PCB height that can be carried in
Top : 45mm, bottom : 85mm (single lane)
Maximum 3D measurement height
25mm
Number of pixels
12Megapixels
Number of pixels of the 4-angle camera
20Megapixels
3D inspection speed (under optimum conditions) 4-projection
12μm resolution: 56.8cm²/s
7μm resolution: 19.6cm²/s
5μm resolution: 10.1cm²/s

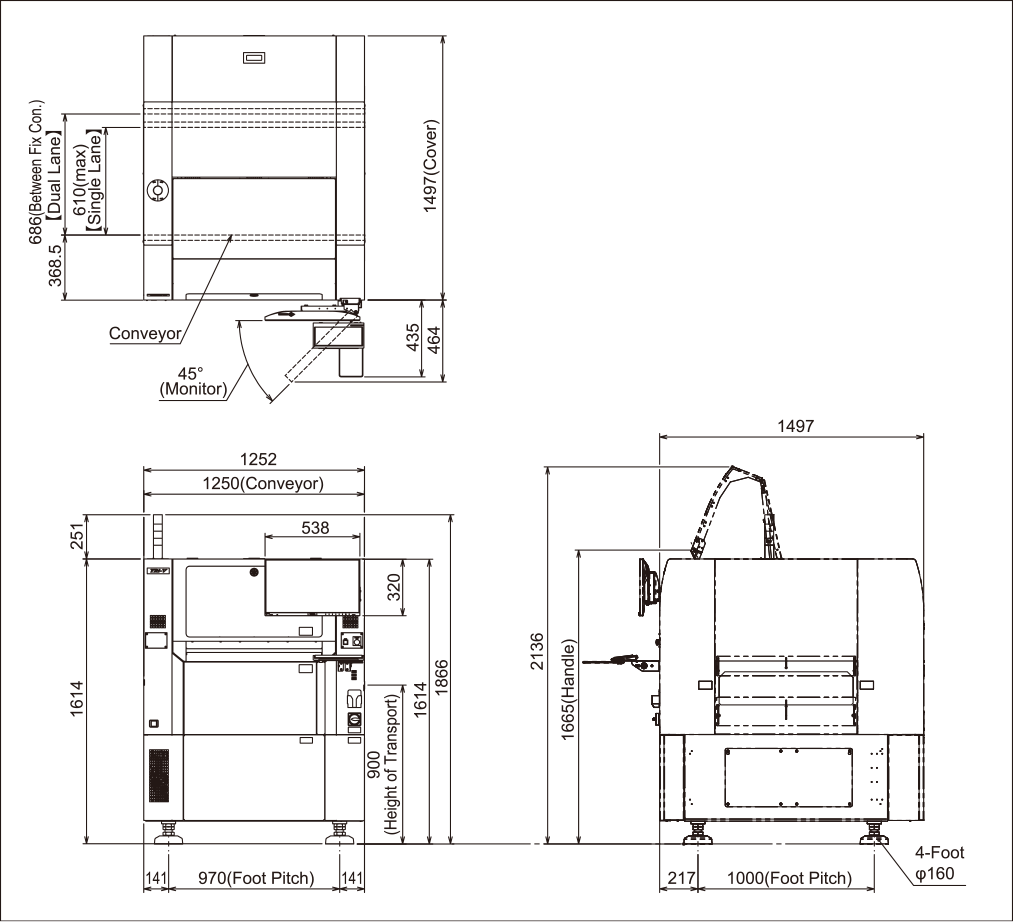

External dimension (except the protrusions)
L1,252 x W1,497 x H1,614mm
Weight
1,480kg
