T501

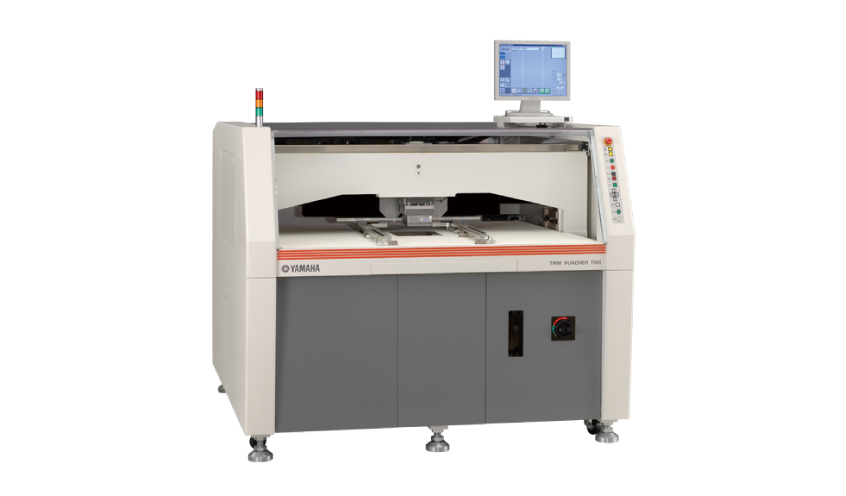

PRODUCT DESCRIPTION
A high-speed type of machine in which a work sheet is loaded/unloaded manually. Up to 1.2 t thrust trimming at high speed (0.55 seconds/hole) with high accuracy (±20 μm) is possible.
features
- Max. work sheet size: X510 x Y510mm
- Work sheet transfer:Loading：Manual Unloading：Manual
- Thrust power: Approx. 1.2t

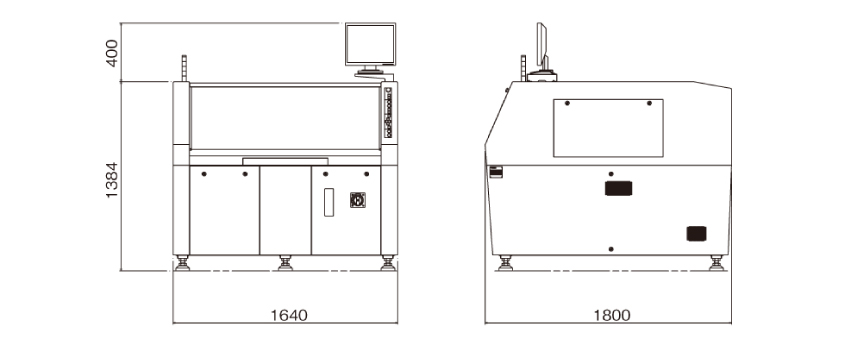

specifications
Model
T501
Type
T501-2
Application examples Flex PCB, Various film materials etc.
Flex PCB, Various film materials etc.
Processing capability-Work sheet size
X150~510mm / Y150~510mm
Processing capability-Range*1
Range excluding an area of X12 x Y60mm from four corners of work sheet
Processing capability-Accuracy*2
±20μm
Processing capabilitySpeed*2
0.55 s/shot
Punching head-No. of heads
1
Punching head-Thrust Power
Approx. 11,760N (1,200kgf)
Die module -Max. punching size
Large: X100 x Y50mm
Medium : X50 x Y50mm
Small : X25 x Y50mm
Die module-Max. half-cutting size
Large : X100 x Y50mm
Medium : X50 x Y50mm
Small : X25 x Y50mm
Die module-Built-in RFID
Provided
Work sheet transfer-Loading / Unloading
Manual
Image processing-Camera view
X4.8 x Y3.6mm (standard)
Image processing-Pattern detection
Pattern recognition via grayscale
Image processing-Illumination type
Transmission light, reflection light
Hardware-Interface
LAN,USB
Hardware-Display
17 inch LCD with touch panel
Software-OS
Windows7
Software-Production support function
Punching deviation measurement, NG punching, automatic creation of optimal punching path, automatic punching offset, punching deviation accuracy measurement, measurement result output, die shot count
Usage environment-Weight
Approx. 2,200kg
Usage environment-Power supply
1-phase, 180 to 240V AC, 50/60Hz, 3kVA
Usage environment-Dry air
0.5MPa
