Flexi - Coat (Coater)
PRODUCT DESCRIPTION

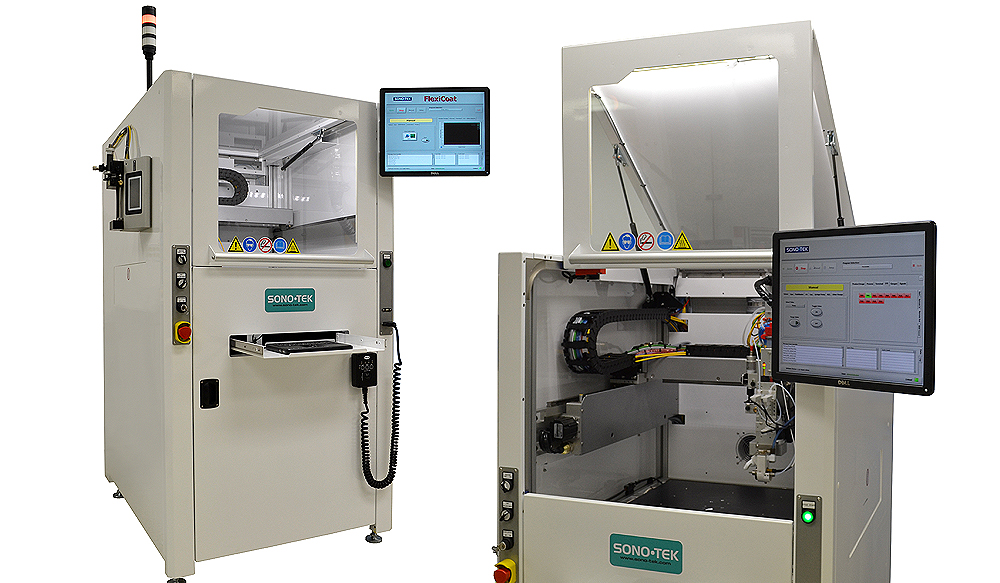

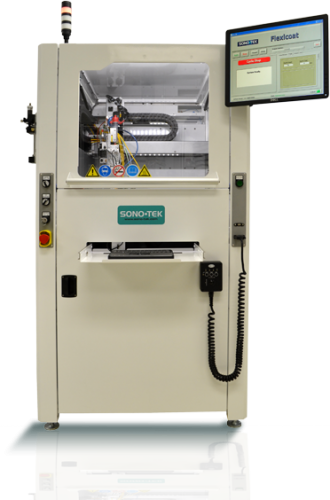

    Fully automated, programmable standalone system with coordinated XYZ motion control using Windows-based software and user-friendly teach pendant with trackball. Versatile mid to high-volume or pilot-scale production thin-film coatings. Can be configured with standard SMEMA conveyor for inline coating solutions.

Send Enquiry
features

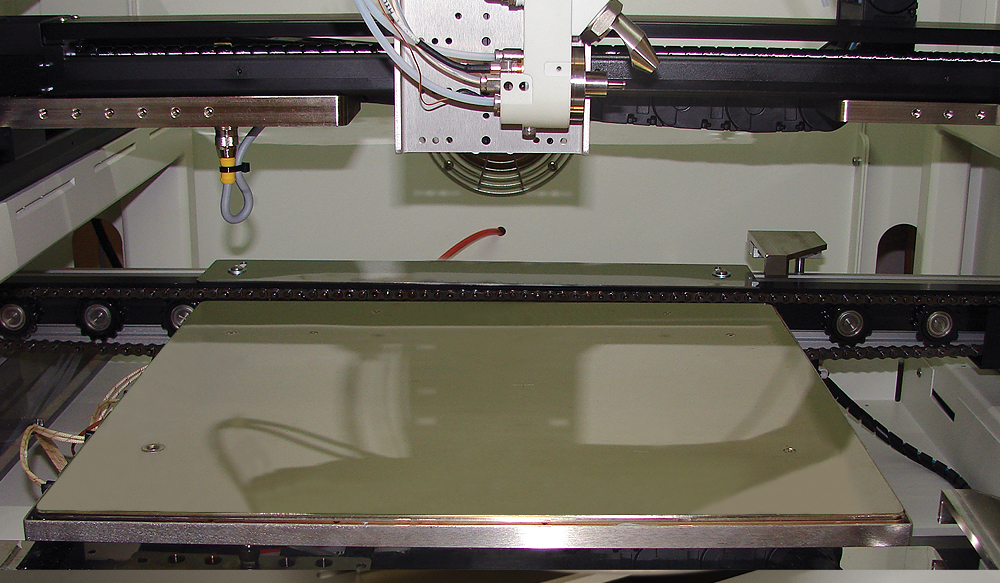

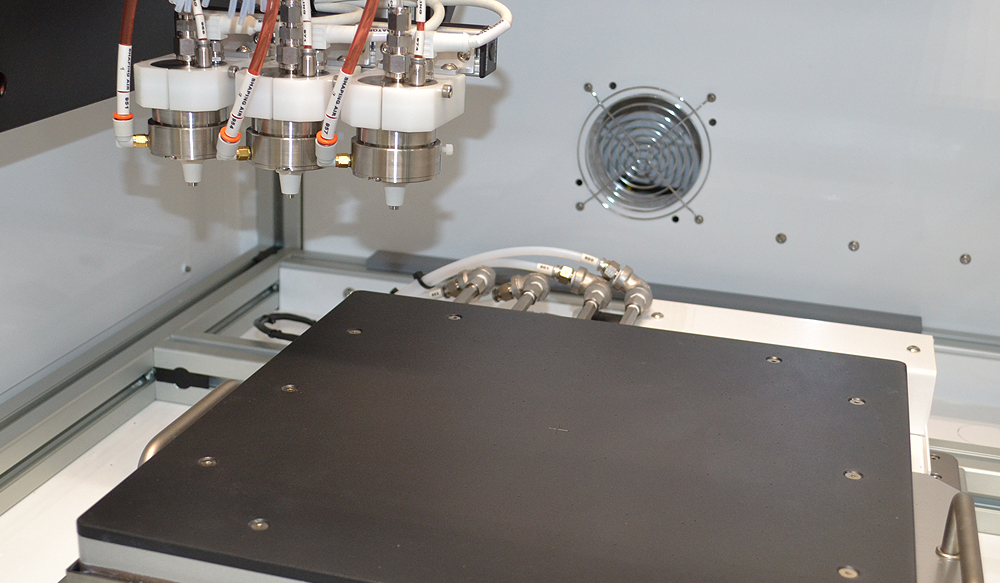

  • HEAT AND/OR VACUUM PLATE: 150, 250C heat/vac or 500C heat

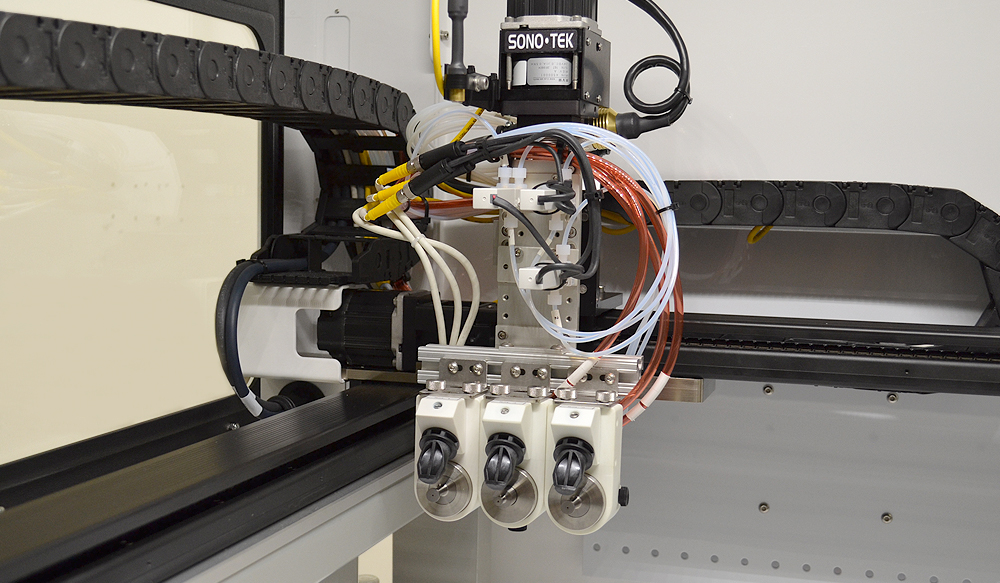

  • HEAD CONFIGURATION: up to 3 heads (Ultrasonic or Vector)
  • COMMON OPTIONS: SMEMA conveyor, wire/rod coater, Ultrastatic ESC, Nozzle rotate and/or tilt, 1 or 2 drawer load system, LEL Sensors, cleanroom upgrade, aggressive material upgrade, Auto substrate flipping, IR heat
  • LIQUID DELIVERY: Common Liquid Delivery: Syringe pump (standard, Sonic or stirring), gantry mounted syringe pump, MicroFlow, SonoFlow Fusion, HyperFlow catalyst pump, gear pump
  • *Additional custom options may be available depending upon application requirements
specifications
DIMENSIONS
869 mm W x 1952 mm H x 1137 mm D (34” W x 76.9” H x 44.8” D)
WORK AREA
500 x 500 x 100 mm (19.69” x 19.69” x 3.94”) Larger configurations available up to 1.4×1.4 m *Note: Work area may be reduced depending upon system configuration
CONTROL
Windows-based (PC included)
POWER REQUIREMENTS
120V, 220V +/- 10%, 50-60 Hz
AIR
551.6 kPa (80 PSI) dry unlubricated air
MOTORS
Servo
CERTIFICATION
CE
ULTRASONIC NOZZLE DESIGNS
AccuMist, Impact, Vortex, MicroMist, or Propel
