MR612
PRODUCT DESCRIPTION

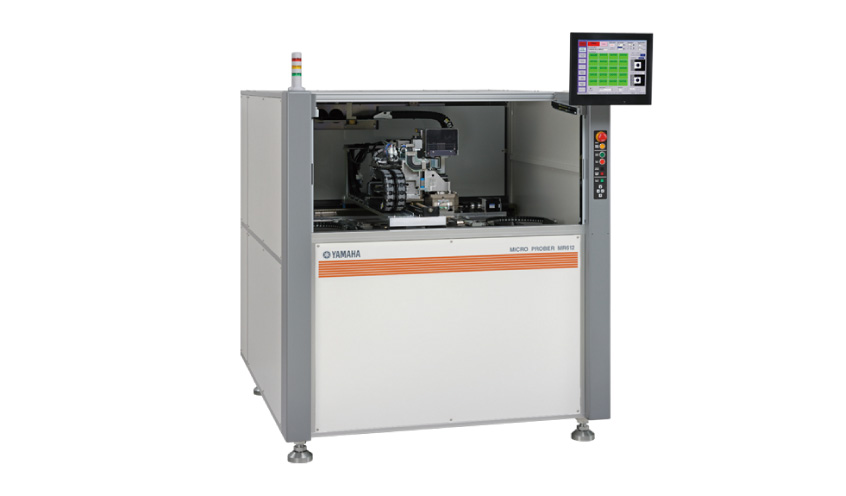

A large sheet supported type of machine in which a work sheet is loaded/unloaded manually. A large sheet up to 610 x 510 mm is supported. Continuity/insulation test with ±5μm high accuracy is possible.
features
- Max. work sheet size:X610 x Y510mm
- Max. test fixture size:When rotating：φ200mm When not rotating：X275 x Y100mm
- Work sheet transfer:Loading：Manual Unloading：Manual
specifications

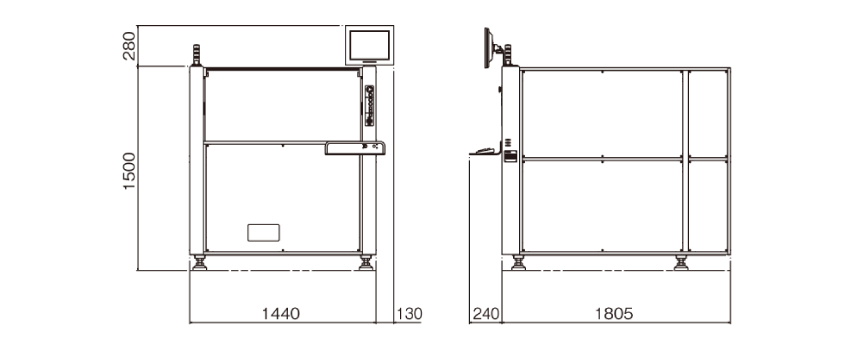

Model
MR612
Type
MR612-DM5S/MR612-M5S
Application examples
Flex PCB, Rigid Flex PCB
Test capability-Mnumber of test points
Upper head：2,046 / Lower head：2,046 Upper head：1,534 / Lower head：1,022
Test capability-Work sheet size
X70～610mm / Y150～510mm
Test capability-Max. test range*1
Range excluding an area of X7.5 x Y9.0mm from four corners of work sheet
Test capability-Max. test fixture size
When rotating：φ200 / When not rotating：X275 x Y100
Test capability-Positioning accuracy*2
±5μm
Test specifications-Determination method
Open/short (pass/fail determined based on specified resistance value)
Test specifications-Open test*2
Test range: 2 wire test 10Ω～ 10kΩ (0.5mA,10mA)
4 wire test 1mΩ～ 500Ω (10mA, 40mA, 100mA)
Test specifications-Open test*2
Open voltage: 15V ～ 50V
Test specifications-Open test*2
Test accuracy: 2 wire test ±10% (50Ω～ 10kΩ), ±5Ω (10Ω～ 50Ω)
4 wire test ±10% (1mΩ～ 500Ω)
Test specifications-Short test*2
Test range: 100kΩ～ 100MΩ
Test specifications-Short test*2
Test voltage: 50V ～ 250V
Test specifications-Short test*2
Test accuracy: ±10%
Test specifications-Options
μ Short test, Spark detection, Heating test, Non contact test
Work sheet transfer-Loading / Unloading
Manual
Image processing -Camera view
X2.4 x Y1.8mm (standard)
Image processing -Pattern detection
Pattern recognition via grayscale
Image processing -Illumination type
Transmission light, reflection light
Hardware-Interface
LAN,USB
Hardware-Display
15 inch LCD with touch panel
Software-OS
Windows7
Software-Production support function
Automatic fixture correction, output of test result log, automatic retry test, fixture stroke count
Usage environment-Weight
Approx. 1,350kg Approx. 1,500kg
Usage environment-Power supply
1-phase, 180 to 240V AC, 50/60Hz, 6kVA
Usage environment-Dry air
0.5MPa
