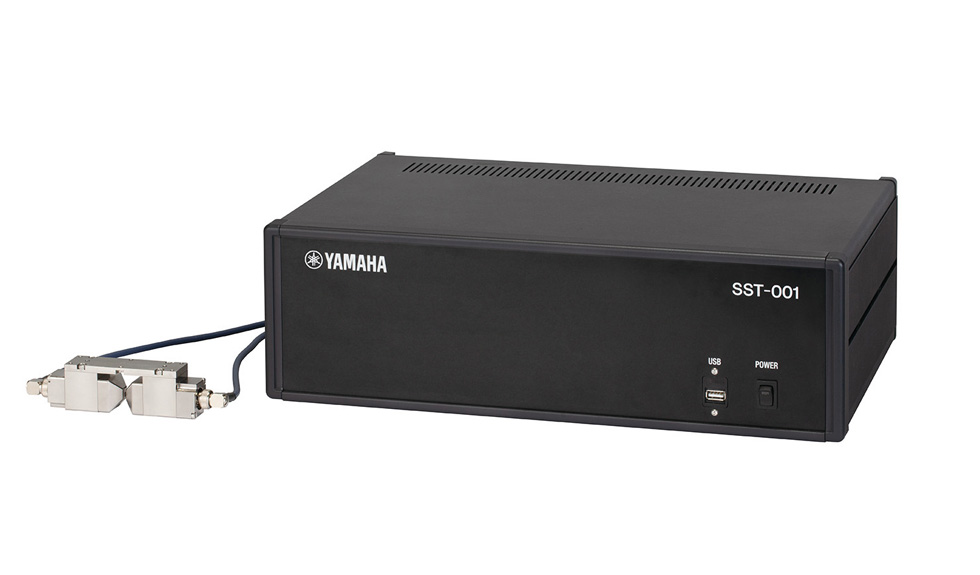

SST-001
PRODUCT DESCRIPTION
- Measured data converted into numerical values to judge the conformity
- Small inspection head adopted so as to allow the equipment to be added to the existing production line
- Minimum detected flaw size: 1 mm wide
Non-contact, high-speed, pouch thermal heat sealing inspection
This equipment performs the crimping failure inspection without touching or wetting the thermal heat-sealed section of a retort pouch, etc. The equipment is capable of 1,000 mm/s high-speed inspection, and even when it is added to a production line, it can ensure the execution of inspection without interrupting the production flow.
features
- Scanning range : 1mm
- Feature : Inline support
- Scanning speed : 1,000mm/sec
specifications
Product composition
Ultrasonic scanning unit 1 set
Ultrasonic sensor head unit : Probe holder / Probe (transmitted & received)
Ultrasonic Pulsar Receiver
Control PC
Peripheral devices 1set : display, keyboard, mouse
Scanning range
1mm
Scanning speed
1,000mm/sec
Control PC
PC : Built-in product /
OS : Windows 10 /
Input : Keyboard / mouse /
Display : LCD panel display (HDMI)
Data
SSD
Language
English
Power voltage, power supply
AC100~220V, 50/60Hz, 0.5kVA
Weight
Sensor head 0.3kg, Control box 8kg
Usage environment
5~40℃, no condensation
