T261-GFR
PRODUCT DESCRIPTION

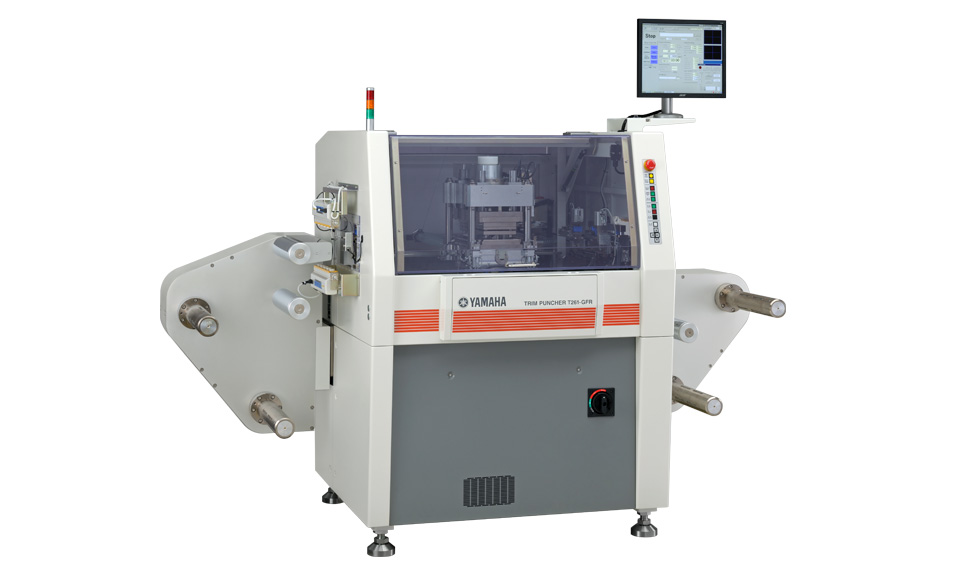

    A 260 mm wide roll transfer type machine. Up to 3 t thrust trimming at high speed (1.90 seconds/hole) with high accuracy (±25 μm) is possible.

features
  • Max. work sheet size:Roll witdh : Max. 260mm
  • Work sheet transfer:Roll to Roll
  • Thrust power:3t
specifications
Model
T261-GFR
Type
T261-GFR-B
Application examples
Flex PCB, Various film materials etc.
Processing capability-Work sheet size
35~260mm
Processing capability-Range*1
X500mm x Y260mm
Processing capability-Accuracy*2
±25μm
Processing capability-Speed*2
1.9 s/shot
Punching head-No. of heads
1
Punching head-Thrust Power
Approx. 30,000N (3,058kgf)
Die module-Max. punching size
X114mm x Y260mm
Die module-Max. half-cutting size
X114mm x Y260mm
Die module-Built-in RFID
Provided
Work sheet transfer-Loading / Unloading
Automatic
Image processing -Camera view
X4.8 x Y3.6mm (standard)
Image processing -Pattern detection
Pattern recognition via grayscale
Image processing -Illumination type
Transmission light, reflection light
Hardware-Interface
LAN,USB
Hardware-Display
17 inch LCD with touch panel
Software-OS
Windows7
Software-Production support function
Punching deviation measurement, NG punching, automatic creation of optimal punching path, automatic punching offset, punching deviation accuracy measurement, measurement result output, die shot count

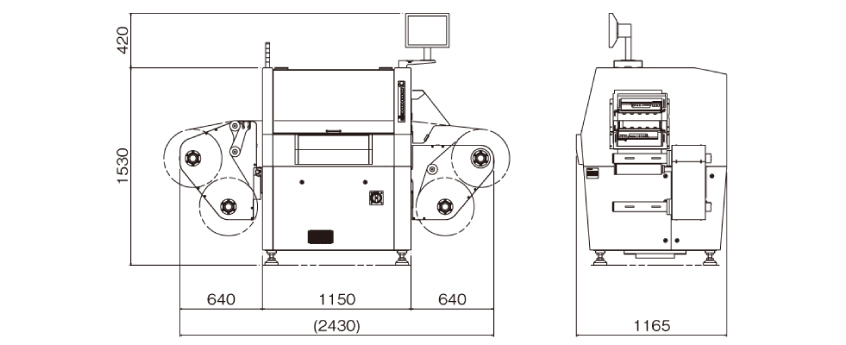

Usage environment-Weight
Approx. 1,500kg
Usage environment-Power supply
1-phase, 180 to 240V AC, 50/60Hz, 6kVA
Usage environment-Dry air
0.5MPa
